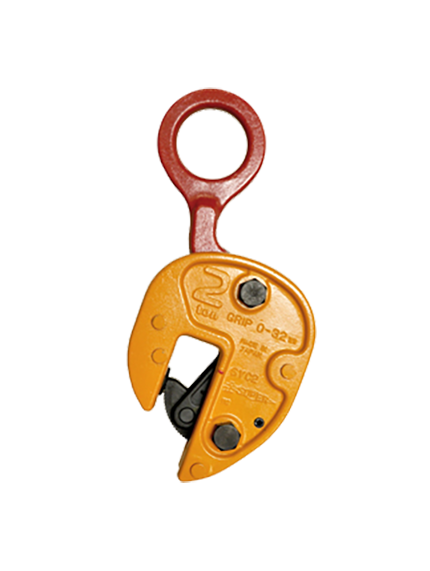

3t - Cam Stopper Type Vertical Lifting Clamp

Product Description

Product Description: The Super Tools 3 Ton Cam Stopper Type Vertical Lifting Clamp is a professional-grade plate lifting device designed for the safe and efficient vertical handling of steel plates in fabrication shops, steel service centers, shipyards, and heavy construction environments. The clamp employs a cam-action gripping mechanism that automatically increases clamping force as the suspended load weight rises, creating a self-locking hold that remains secure throughout the lift. The cam stopper feature provides an additional safeguard against plate release, making this clamp a reliable choice for demanding vertical lifting applications.

The clamp body and jaw components are manufactured from high-strength alloy steel to deliver the structural integrity required for repeated heavy-duty use. Hardened cam and jaw contact surfaces grip the plate firmly across a range of thicknesses without requiring manual adjustment once the load is engaged. A swivel hook or shackle attachment point at the top of the clamp allows straightforward connection to overhead hoists, cranes, and lifting slings, supporting smooth and controlled vertical plate movement in confined or open work areas.

With a 3 Ton working load limit, this clamp is well suited for handling medium to heavy steel plate stock commonly used in structural fabrication, machine building, and industrial manufacturing. The clamp is intended for vertical lifting only and must not be used for angled, horizontal, or tilting lifts unless the unit is specifically rated for those configurations. Pre-use inspection and strict adherence to the rated capacity are essential practices for safe operation.

Material: High-strength alloy steel body Hardened cam and jaw contact surfaces Steel swivel hook or shackle attachment

Compatible With: Steel plates within the rated jaw opening range Overhead hoists, cranes, and lifting slings rated to 3 Ton or greater

Uses: Vertical lifting and repositioning of steel plates Structural steel fabrication and assembly Shipbuilding and marine construction Heavy manufacturing and industrial plate handling Loading and unloading of plate stock

Key Features: 3 Ton working load limit Cam stopper mechanism delivers automatic self-locking grip under load Jaw opening adjustable to accommodate varying plate thicknesses Hardened contact surfaces for secure grip and extended service life Swivel hook attachment for connection to hoists, cranes, and slings Designed for vertical lifting applications only

Note: This clamp is rated for vertical lifting only. Confirm plate thickness falls within the jaw opening range before use. Inspect the clamp prior to each lift and never exceed the rated working load limit.
