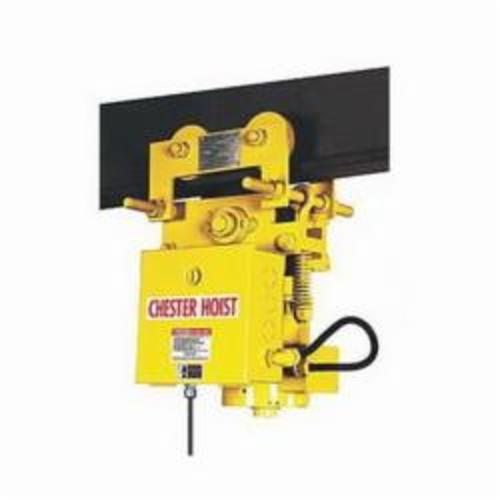

Tractor-Drive Powered Trolley - 1 Ton, 35 FPM, 1/4 HP, 230/460 V AC

Product Description

Product Description:
This CM tractor-drive powered trolley provides motorized horizontal travel for a compatible hoist and suspended load along an overhead beam. The listed configuration has a 1 Ton load capacity, operates at 35 FPM, and uses a 1/4 HP electric drive motor. It is configured for 230/460 V AC power.

The trolley adjusts to fit beam flange widths from 3.38 to 8 in and can negotiate a 3 ft minimum-radius curve. Its powered drive allows the operator to move the hoist without manually pushing the suspended load, making it suitable for longer travel distances, repetitive load movement, and applications requiring more consistent positioning.

The tractor-drive arrangement transfers motor power to the trolley wheels to move the assembly along the runway beam. It is intended for industrial production, maintenance, fabrication, assembly, and material-handling systems where powered horizontal travel improves efficiency and reduces manual handling.

Material:
Industrial metal trolley frame
Electric drive motor
Mechanical drive components
Trolley wheel assemblies
Steel suspension and beam-adjustment hardware

Compatible With:
Compatible hoists within the 1 Ton trolley capacity
Overhead beams with flange widths from 3.38 to 8 in
Straight or curved runway beams with a minimum 3 ft curve radius
230/460 V AC electrical supplies matching the trolley nameplate

Uses:
Providing powered horizontal travel for suspended hoists
Moving loads along overhead runway beams
Positioning equipment during installation and maintenance
Production and assembly operations
Fabrication and manufacturing applications
Material handling where manual trolley travel is impractical

Key Features:
1 Ton load capacity
35 FPM travel speed
1/4 HP electric drive motor
230/460 V AC electrical configuration
Fits 3.38 to 8 in beam flanges
3 ft minimum-radius curve
Powered tractor-drive operation
Suitable for repetitive industrial load movement
