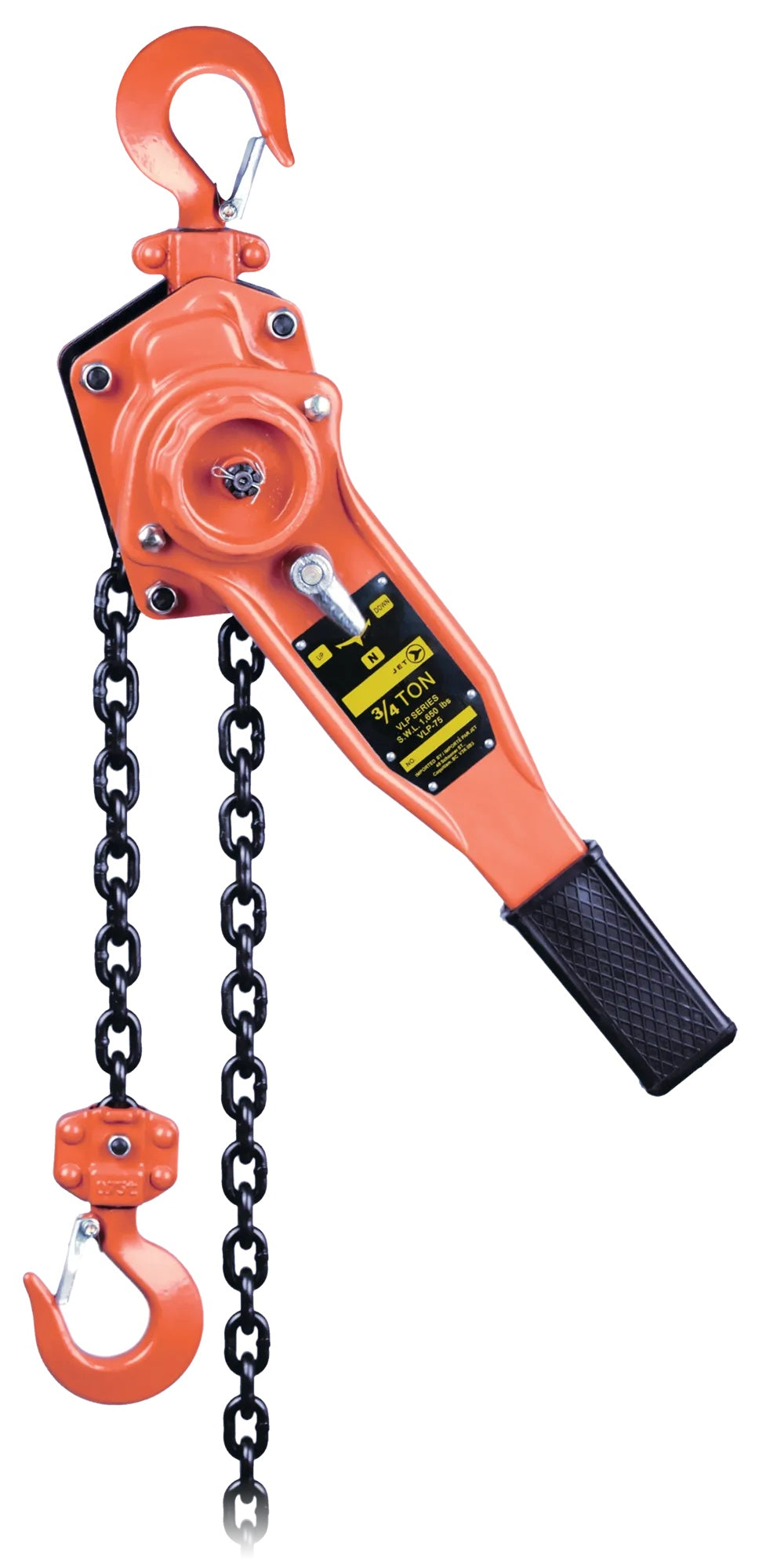

The JET VLP Series Standard Duty Lever Chain Puller is a 0.75-ton rated mechanical lifting and pulling device designed for load lifting, tensioning, and positioning in industrial, construction, rigging, and maintenance environments where a lightweight, compact pulling solution is required for lighter-capacity applications. The lever chain puller operates on a ratcheting lever mechanism that allows the operator to lift or pull loads incrementally with controlled force, making it well suited for precise load positioning, wire rope and chain tensioning, and recovery operations in locations where electric or pneumatic hoists are impractical.
With a 5-foot lifting height and a minimum between-hooks distance of 12 inches, the VLP provides adequate travel for a wide range of light industrial lifting and pulling tasks. The 37.5 mm hook opening accommodates standard rigging hardware including shackles, rings, and structural attachment points. A pull force of just 31 lb on the lever is required to lift the rated load, making this puller easily operable by a single worker with minimal physical effort. The 12 inch lever length is more compact than higher-capacity models, contributing to the overall lightweight and portable nature of the VLP for applications where tool weight and size are important considerations.
The dual pawl Weston/disc brake system provides positive load holding in both the lift and lower directions, preventing unintended load movement when the lever is released. The dual pawl design adds redundancy to the load-holding mechanism, an important safety feature in overhead lifting and tensioning applications. The combination of 0.75-ton capacity, 31 lb hand effort, dual pawl disc brake, and compact 12 inch lever makes the JET VLP a practical and easy-to-use tool for riggers, maintenance technicians, and tradespeople who require a reliable, lightweight lever puller for everyday light-capacity lifting and pulling tasks.
Specifications: Series: VLP Working Load Limit: 0.75 Ton Lifting Height: 5 ft Minimum Between Hooks: 12 in Hook Opening: 37.5 mm Pull to Lift Rated Load: 31 lb Lever Length: 12 in Brake Type: Dual Pawl Weston/Disc Brake Grade: Standard Duty
Compatible With: Standard shackles, rings, and rigging hardware within 37.5 mm hook opening Light industrial lifting, pulling, and tensioning applications
Uses: Load lifting and lowering in confined or remote locations Wire rope and chain tensioning Load positioning and alignment during light machinery installation Rigging and recovery operations Construction and maintenance applications requiring a lightweight portable puller
Key Features: Standard duty lever chain puller — lightweight and compact 0.75-ton working load limit 5 ft lifting height 37.5 mm hook opening — compatible with standard rigging hardware 31 lb pull force required to lift rated load — minimal operator effort 12 in lever length for compact, portable operation Dual pawl Weston/disc brake — positive load holding in lift and lower directions 12 in minimum between hooks JET VLP Series
