Herc

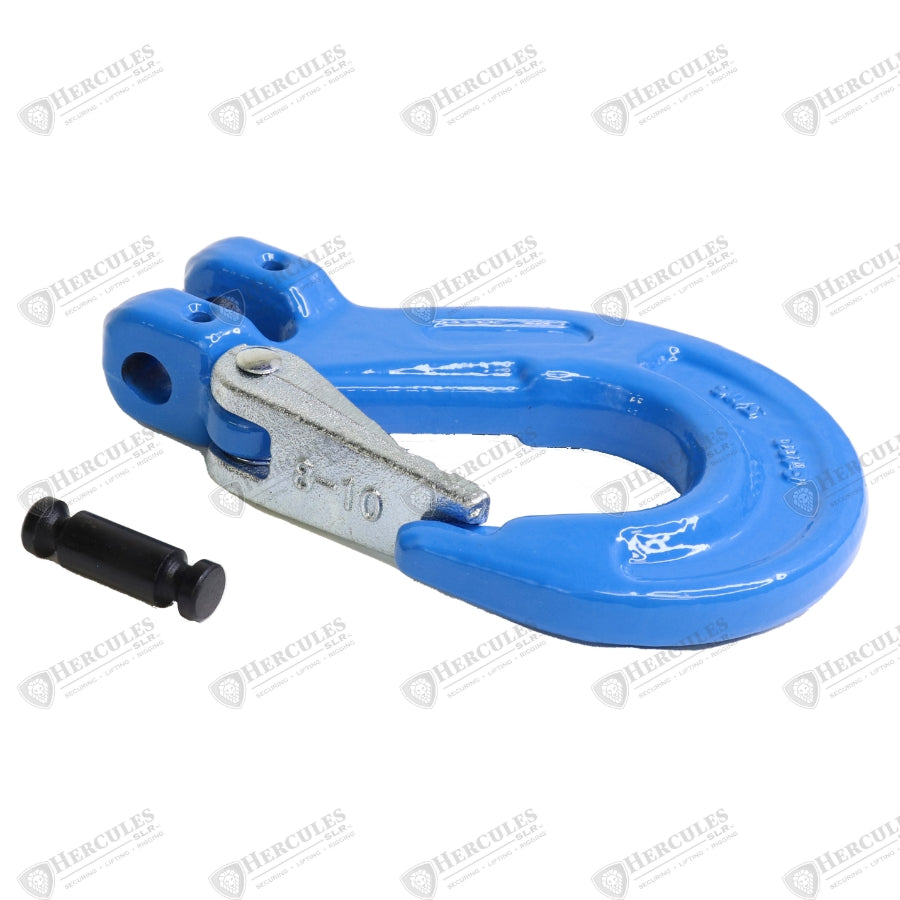

G-100 Clevis Sling Hook with Latch

Name: G-100 Clevis Sling Hook with Latch
Brand: Herc
SKU: x-043-s-07x
Availability: OutOfStock

SKU: Part #x-043-s-07x

Please contact us for pricing

View full details

Product Description

Product Description
Hercules Grade 100 Clevis Sling Hook designed for heavy-duty overhead lifting and rigging

Material
Alloy Steel, Grade 100
Finish: Powder Coated, Blue

Specification
Standard: EN 1677-5 / ASTM A952/952M
Design Factor: 4:1
Identification: Trademark, Size/WLL
WLL.: See above part numbers and WLL
Type: Clevis Sling hook with latch kit
Size: See above
Material: Alloy Steel, Grade 100

Uses
Used as the terminal hook in single-leg or multi-leg lifting slings.
Ideal for lifting, positioning, and lowering loads in construction, manufacturing, and energy sectors.

Key Features
Clevis Attachment: Allows for a direct connection to the chain without the need for additional connecting links.
Latch Kit: Includes a heavy-duty, spring-loaded latch to prevent the load from slipping.

Part Number	Grade 100 Chain Size (in)	Working Load Limit (lb)	Dimension A (in)	Dimension H (in)	Dimension K (in)	Dimension P1 (in)	Dimension T (in)	Weight Each (lb)	Replacement Load Pin Kit	Replacement Latch Kit
X-043/S-06	7/32	3,200	0.28	0.71	3.11	0.91	0.59	0.7	X-P026-06	8-P044-06
X-043/S-10	3/8	8,800	0.47	1.18	4.80	1.34	0.94	2.4	X-P026-10	8-P044-10
X-043/S-13	1/2	15,000	0.59	1.46	5.79	1.73	1.18	5.1	X-P026-13	8-P044-13
X-043/S-16	5/8	22,600	0.71	1.61	6.54	1.89	1.54	8.4	X-P026-16	8-P044-16
X-043/S-20	3/4	35,300	0.94	2.52	8.15	2.24	1.89	19.2	X-P026-20	8-P044-20

Product Type: X-043/S Grade 100 Clevis Sling Hook with Latch.

Material: Quenched and tempered alloy steel.

Compatible With: Grade 100 lifting chain in the sizes specified in the table.

Design Factor: 4:1.

Proof Load: Proof load tested to 2.5 times the Working Load Limit, with certification for each manufactured batch.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.

Compliance: Manufactured in accordance with EN 1677-2, ASME B30.26, ASME B30.10 and PAS 1061.

Inspection: Magnaflux crack detection is performed on each manufactured batch.

Replacement Parts: Compatible X-P026 load pin kits and 8-P044 latch kits are listed in the table.

Reference Image:

X-043/S Grade 100 Clevis Sling Hook with Latch specification reference showing dimensions A, H, K, P1 and T

Specification	Value
Working Load Limit	6.7T, 6.7 Tons
Type	CLEVIS SLING W/LATCH, Clevis Sling w/ Latch
Size	1/2, 1/2”
Material	Forged Super Alloy Steel, Alloy Steel
Certification Standard	EN1677 / ASME B30.26
