What Are Rigging Trolleys? Manual vs Electric

Rigging trolleys (also called beam or I-beam trolleys) are devices that travel along an overhead beam or I-beam to move loads horizontally. They carry hoists (manual chain, electric chain, wire rope, etc.) so you can lift and transport loads safely across a workspace.

• Manual trolleys are operated by hand: pushing the load, or using a chain to move the trolley wheels (geared trolley), and manually lifting the load with chain hoist or lever hoist.

• Electric trolleys use motorised travel; sometimes also motorised lifting (electric hoist + powered trolley), or electric travel + manual hoist.

How Rigging Trolleys Are Used

They are common in:

• Workshops, manufacturing plants, warehouses — for moving heavy parts and materials along fixed beams.

• Construction sites — temporary beam setups to shift loads.

• Maintenance & repair operations — for lifting and positioning equipment overhead.

• Event rigging (lighting, stage, audio) — lighter capacity trolleys.

Types of Rigging Trolleys & Which is Best in Different Situations

Manual Push Trolley (wheels roll freely)
Simple, robust; low cost; minimal maintenance
Lighter loads, short spans, intermittent use; where power is unavailable or unsafe.

Geared / Manual Chain-Driven Trolley

Has a hand chain that drives gears to move trolley wheels; better mechanical advantage; easier to move heavier loads

Medium loads; frequent use; when precision or effort control is needed.

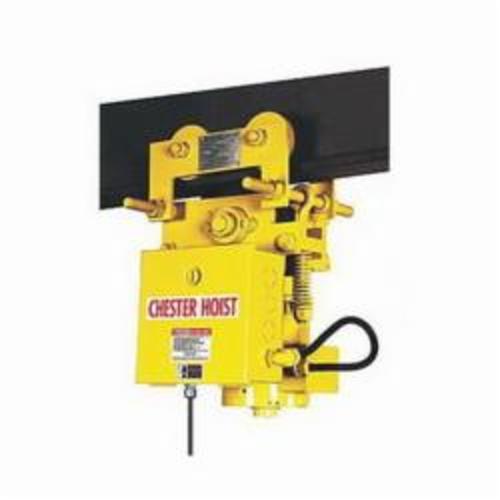

Electric Travel Trolley (with manual hoist)

Motorised movement along beam; lifting still manual

Where horizontal travel is long, load heavy, or workforce limited; reduces fatigue.

Fully Electric Trolley + Electric Hoist

Motor for travel and lifting; often remote-controlled; higher cost; more complex

Heavy duty operations; frequent lifts; when speed, safety, and efficiency are priorities; high capacity / high usage environments.

How to Determine Which One is Best for You

When choosing a trolley setup, consider:

1. Load capacity: What’s the maximum weight you’ll lift + transport? Include safety margin.

2. Beam type / beam width / flange dimensions: Trolley must fit beam profile and be compatible; wider or deeper flanges may require special trolleys.

3. Span & travel distance: Longer travel distances favour electric travel to reduce manual effort and time.

4. Frequency of use & cycle duty: How often will you be lifting / moving loads? Occasional use may be fine with manual; heavy/frequent use better with electric or motorised.

5. Precision & speed requirements: If positioning matters (slow, precise movement), geared manual or electric with speed control is important.

6. Power availability & environmental conditions: If electricity is available, electric trolleys are viable; but in remote or hazardous zones, manual might be safer. Consider dust, moisture, temperature.

7. Budget & maintenance resources: Electric units cost more, require more maintenance; manual are cheaper and simpler.

Safety Concerns

• Overloading: Never exceed the rated capacity of the trolley, hoist, or beam.

• Side-loading: Applying loads not vertically under the hoist wheel path can cause unsafe bending or failure.

• Modifications: Never alter or modify components unless engineered and approved. Altering side plates, changing bars, etc., can drastically reduce safety.

• Over-torquing: Applying excessive force to bolts, fasteners or wheel bolts can damage components, cause stress, fatigue.

• Wear & fatigue: Wheels, bearings, welds, frame, links need inspection; worn parts can fail catastrophically.

• Safe operation: Ensure operators are trained; maintain clear path; ensure load stability; use proper rigging gear (slings, shackles, hooks).

When Should Rigging Trolleys Be Inspected

• Before first use: check that the trolley is installed correctly, beam dimensions are correct, all fasteners tight, travel is free.

• Regular inspection schedule: e.g. daily visual checks; weekly more detailed; monthly or quarterly more in-depth inspection including load tests, examining wear on wheels, bearings, frame.

• After any unusual event: e.g. overload, shock load, side load, collision.

• Periodic full certification: Depending on local regulations (CCHOS, OSHA, CSA, EU directives), at intervals (annually, semi-annually) have qualified inspector test load, certify safety.

4 Mistakes to Avoid with Beam Trolleys

1. Side-loading – Applying load off to the side of the beam/trolley; causes unsafe bending and wear.

2. Overloading – Trying to lift more than the rated capacity.

3. Modifying the trolley or beam components – Altering parts, fabricating side-plates or adapting sizes without proper engineering approval.

4. Over-torquing bolts and fasteners – Tightening too much; can distort parts, create stress concentrations, misalign wheels etc.

Avoiding those mistakes drastically improves safety, lifespan, and reliability.

Best Practices & Summary

• Choose the right trolley type based on load, beam, usage, and precision required.

• Make sure installation matches rated specs: beam width, strength, supports.

• Train staff; enforce inspection and maintenance.

• Avoid the four mistakes above always.

• Keep spare parts (wheels, bearings, fasteners) available; replace worn parts proactively.
