Mastering the Geometry of Safety: Why Crane Boom Angles Are Critical

In the world of heavy lifting, safety is defined by a complex interaction of engineering, environment, and human discipline. A single variable, however, holds immense sway over a crane's stability and load capacity: the boom angle. While modern cranes are advanced machines, they must always respect the laws of physics. Ignoring the geometry of the boom angle is the shortest path to a catastrophic failure or a deadly tipping incident.

Maintaining a rigorous focus on the boom angle isn't optional; it is the cornerstone of safe lifting operations. This article explores how different angles directly affect capacity and stability, and provides a clear blueprint for integrating these principles into your operational HSE standards.

Visualizing the Geometry of Crane Stability

To understand why the angle matters, we must visualize the force of gravity. A crane can be modeled as a balance. On one side is the crane's center of gravity (CG), heavily ballasted by counterweights. On the other side is the load, which exerts rotational torque around the crane's tipping point (often the edge of the track or outrigger).

The distance from the tipping point to the center of the load is the operating radius. The law of the lever dictates that as this radius increases, the crane's effective capacity dramatically decreases.

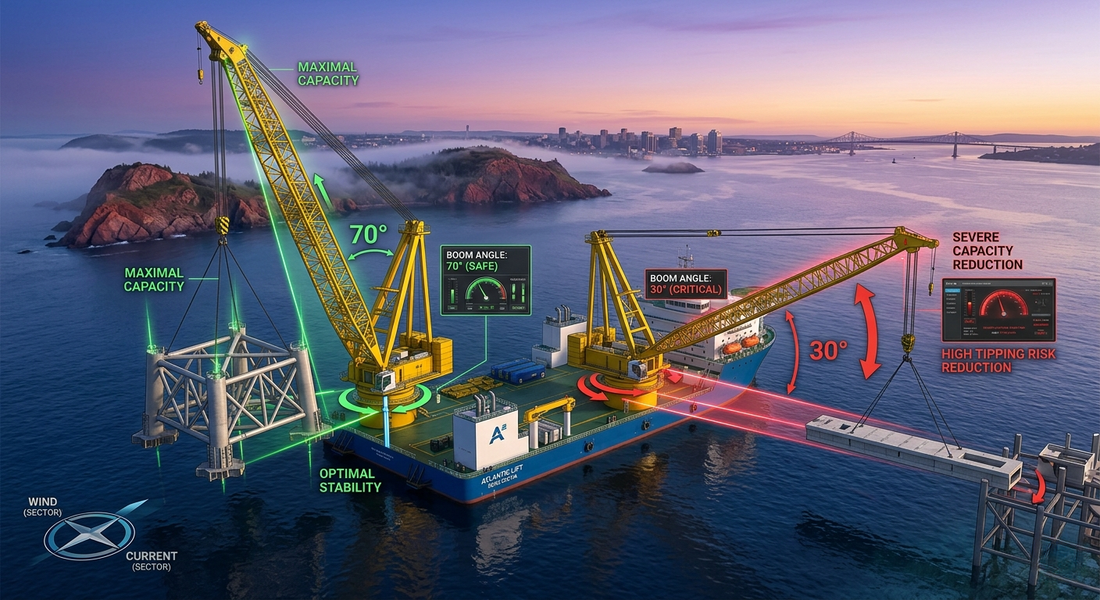

The boom angle is the direct controller of that radius. The infographic provided below illustrates this relationship perfectly using three comparative zones:

Let's break down the technical implications of the zones shown in the visualization:

The High-Capacity Zone: 70° (Optimal Stability)

As the infographic demonstrates, the 70° boom angle (Panel 1) is the "sweet spot" for maximizing a crane's potential. In this position, the boom is raised high, and the load is held as close to the crane body as possible.

Why this is optimal: This high angle significantly minimizes the operating radius. By keeping the load close to the crane's center of gravity and far inside its tipping footprint, the crane maintains Optimal Stability. Because the horizontal lever arm is short, the rotational torque on the crane is minimized, allowing the crane to utilize its Highest Load Capacity. A crane rated for 100 tons can only lift that capacity at very short radii, achieved with high boom angles.

The Transition Zone: 45° (Use Caution)

When the boom angle reduces to 45° (Panel 2), the geometry shifts significantly. The visual confirms that the Radius Increases as the boom gets longer relative to the vertical axis. The load is now a considerable distance from the tipping point.

Why this requires discipline: At 45°, you are operating a much longer lever. The load chart for this configuration will show a drastic reduction in capacity compared to the 70° configuration. The infographic uses yellow-orange to warn that this is a Transition Zone. Operating here is safe, but only if you strictly observe the calculated operational limits. The tipping risk increases because the load's effect is multiplied by the longer operating radius.

The High-Risk Zone: 30° (Critical Danger)

At 30° (Panel 3), the visual illustrates the crane with the boom extended almost horizontally. The load is at its Maximal Operating Radius, pushing the effective force on the crane structure to the extreme limit.

Why this increases risk drastically: This is the most dangerous configuration. The law of the lever is working heavily against the crane. The Load is far from the center of gravity, giving it massive mechanical advantage around the tipping point. The crane's capacity is severely reduced (the diagram suggests 30% capacity compared to a high lift). This creates a situation where a comparatively light load, if mishandled slightly, will exceed the stabilization torque and cause Drastic Tipping Risk. Any instability—such as a gust of wind or soft ground—is magnified instantly.

From Theory to Practice: Core HSE Safety Mandates

Understanding the physics is only the first step. The critical takeaway from this geometric relationship is the urgent need for defined operational procedures and disciplined execution. From an HSE (Health, Safety, and Environment) perspective, managing boom angles reinforces these four non-negotiable mandates:

1. Strict Adherence to Load Charts

Load charts are not generic guidelines; they are specific, legally binding operational documents derived from rigorous engineering calculations. Every lift plan must start with the specific load chart matching the crane's exact configuration (e.g., boom length, counterweight configuration, outrigger extension). If the chart specifies a maximum capacity of 10 tons at a 40-foot radius and a 55° boom angle, there is zero tolerance for deviation. Operators must never exceed these values, and lift planners must build a safety factor into their calculations.

2. Competent Operators and Signalers

The visual representation in the infographic shows certified professionals managing the lift. Competence goes beyond knowing which buttons to push; it means the entire lifting team (operators, signalers, riggers) understands the fundamental relationship between radius, angle, and capacity. An experienced operator constantly monitors their boom angle indicator, recognizing that a sudden reduction in the angle—even without moving the crane base—can overload the machine. Likewise, signalers must be aware of how their commands (e.g., "boom down") directly impact the risk profile of the lift.

3. Proper Lift Planning and Supervision

Every "critical lift" (over 75% capacity, or involving hazardous loads) requires a comprehensive, documented lift plan. This plan must explicitly pre-calculate the required boom angles and operating radii at every stage of the lift sequence, from pickup to placement. Effective supervision ensures the plan is followed precisely and provides the authority to stop work if environmental conditions (like wind) shift the planned radius or stability.

4. Continuous Monitoring of Radius and Ground Conditions

The environment is dynamic. Cranes must have calibrated and functioning automatic safe load indicators (ASLI) that provide the operator with real-time data on the boom angle, radius, and total load. However, technical systems are secondary to the visual monitoring of the environment. Shifts in the wind can apply dynamic loads, pushing a boom outward and effectively reducing the angle. Crucially, the visual and real-world stability are directly compromised if ground conditions fail. Tipping risk (especially at lower angles) is catastrophic if outriggers settle into unstable soil. Continuous monitoring of radius and the stability of the entire lifting footprint is a fundamental HSE mandate.

A crane's safe operation is defined by awareness and disciplined execution. The equipment itself is engineered to provide incredible capabilities, but it relies on humans to operate within the defined parameters of its load chart.

The simple visual geometry of the boom angle serves as a powerful reminder: keeping the load close maximizes your safety and capacity. When the boom angle gets low, the risks escalate exponentially. Never operate in the critical zone without rigorous planning, strict adherence to the charts, and the unwavering competence of a disciplined lifting team. Safe lifting isn't about the machine; it's about the geometric discipline of the people running it.
