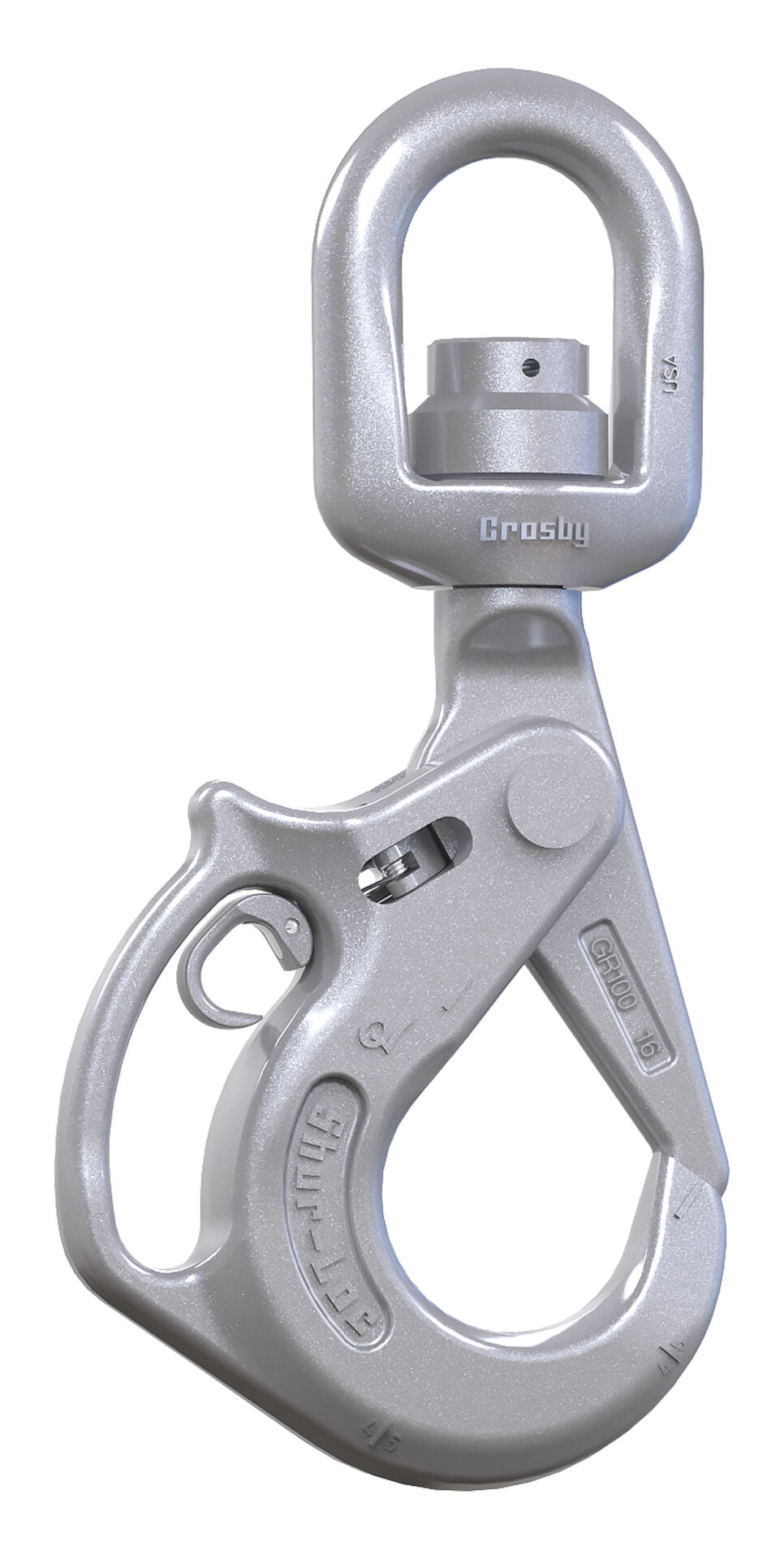

Crosby S-13326H SHUR-LOC Handle Swivel Hooks with Bearings - Size 7/8 in

Description du produit

Product Description:
The Crosby S-13326H SHUR-LOC® Handle Swivel Hooks with Bearings are engineered for demanding overhead lifting applications requiring secure load engagement, ergonomic handling, and smooth hook rotation under load. Designed with an anti-friction bearing system, these heavy-duty swivel hooks allow free rotation while loaded, improving load alignment and reducing rigging stress in industrial, offshore, construction, and heavy lifting environments.
Manufactured from forged alloy steel and quenched and tempered for maximum durability, the S-13326H features Crosby’s positive self-locking SHUR-LOC® latch system for enhanced lifting safety. The ergonomic handle opening provides improved operator control, while the recessed secondary trigger helps prevent accidental release during operation. Suitable for both wire rope slings and Grade 80 or Grade 100 alloy chain systems, these hooks are built for repeated heavy lifting cycles and severe service conditions.

Material:
Forged alloy steel
Quenched and tempered construction
Heavy-duty industrial finish

Specifications:
SHUR-LOC® self-locking handle swivel hook design
Anti-friction bearing system allows rotation under load
Positive lock latch automatically self-locks when hook is loaded
Ergonomic handle opening designed for gloved hand operation
Replaceable pull-trigger mechanism for extended service life
Recessed secondary trigger helps prevent inadvertent release
Rated for use with wire rope and Grade 80/100 alloy chain
Hook Identification Code forged into each hook
Individually proof tested at 2-1/2 times the chain Working Load Limit
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
Available in Working Load Limits from 8.2 tons through 21.7 tons
Suitable for personnel lifting applications when properly installed and locked
Meets intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B)
Compatible with Crosby G-414 Heavy Thimbles and G-411 Standard Thimbles
4:1 design factor based on Grade 100 chain

Uses:
Overhead lifting operations
Industrial rigging systems
Wire rope sling assemblies
Grade 100 chain sling applications
Construction lifting operations
Heavy-duty material handling
Personnel lifting systems
Offshore and marine lifting applications

Key Features:
Anti-friction bearing design – Allows smooth hook rotation while under load
Positive locking latch – Automatically self-locks under load for enhanced lifting safety
Ergonomic handle design – Improves operator control and comfort during use
Recessed trigger system – Helps prevent accidental latch release
Forged alloy construction – Built for demanding lifting environments
Fatigue rated design – Engineered for repeated heavy lifting cycles
Personnel lifting capable – Suitable for approved personnel lifting applications when properly installed
Replaceable trigger assembly – Simplifies maintenance and extends service life
Grade 100 compatibility – Designed for high-performance chain sling systems
