Name: G-450 Clips
Brand: Crosby
SKU: 1010015
Price: 10.13 CAD
Availability: InStock

Description du produit

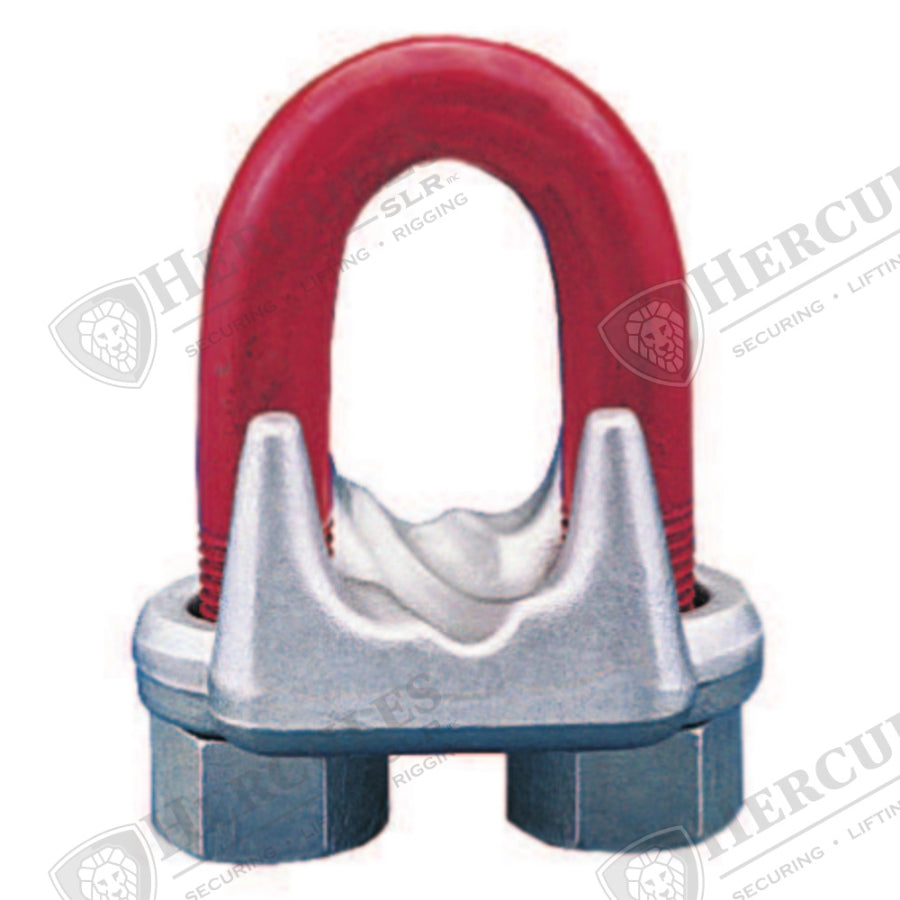

Crosby G-450 Wire Rope Clips are designed for forming secure, load-bearing wire rope terminations and eyes. Widely recognized by the signature Red-U-Bolt®, these clips are used to create loops or end connections in wire rope assemblies for lifting, rigging, and general industrial applications.
Manufactured from forged steel, G-450 clips provide strength, durability, and consistent performance in demanding environments. Their design ensures proper installation and reliable holding power when used correctly.

Material:
Forged steel (base)
Galvanized, corrosion-resistant finish

Specifications:
U-bolt wire rope clip design for end terminations
Available for a wide range of wire rope sizes (1/8" through 3-1/2")
Efficiency rating: 80% (1/8"–7/8"), 90% (1"–3-1/2") based on rope strength
Forged bases on most sizes; larger sizes may use cast steel
Rolled threads on sizes up to 1-1/2" for improved durability
Individually bagged or tagged with application instructions
Marked with Product Identification Code (PIC) for traceability
Meets or exceeds ASME B30.26 requirements

Uses:
Forming wire rope eyes and loops
End terminations for wire rope assemblies
Rigging and lifting applications
General industrial and construction use

Key Features:
Red-U-Bolt design – Ensures proper installation and easy identification
High strength construction – Forged for durability and reliability
Corrosion resistant – Galvanized for extended service life
Traceability – PIC marking for material and manufacturing tracking
Wide size range – Suitable for multiple wire rope diameters
Proven performance – Trusted industry standard for wire rope terminations

Wire Rope Size (in)	Stock No.	Standard Package Qty.	Weight Per 100 (lb)	U-Bolt Diameter (in)	Overall Height (in)	Saddle-to-Nut Height (in)	Inside U-Bolt Width (in)	Saddle Height (in)	Nut Width (in)	Saddle Width (in)	Overall Base Width (in)
1/8*	1010015	100	6	0.22	0.72	0.44	0.47	0.37	0.38	0.81	0.99
3/16*	1010033	100	10	0.25	0.97	0.56	0.59	0.50	0.44	0.94	1.18
1/4	1010051	100	19	0.31	1.03	0.50	0.75	0.66	0.56	1.19	1.43
5/16	1010079	100	28	0.38	1.38	0.75	0.88	0.73	0.69	1.31	1.66
3/8	1010097	100	48	0.44	1.50	0.75	1.00	0.91	0.75	1.63	1.94
7/16 - 1/2	1010131	50	76	0.50	1.88	1.00	1.19	1.13	0.88	1.91	2.28
9/16 - 5/8	1010177	50	104	0.56	2.25	1.25	1.31	1.34	0.94	2.06	2.50
3/4	1010195	25	142	0.62	2.75	1.44	1.50	1.39	1.06	2.25	2.84
7/8	1010211	25	212	0.75	3.12	1.62	1.75	1.58	1.25	2.44	3.16
1	1010239	10	252	0.75	3.50	1.81	1.88	1.77	1.25	2.63	3.47
1-1/8	1010257	10	283	0.75	3.88	2.00	2.00	1.91	1.25	2.81	3.59
1-1/4	1010275	10	438	0.88	4.44	2.22	2.34	2.17	1.44	3.13	4.13
1-3/8	1010293	10	442	0.88	4.44	2.22	2.34	2.31	1.44	3.13	4.19
1-1/2	1010319	10	544	0.88	4.94	2.38	2.59	2.44	1.44	3.41	4.44
1-5/8	1010337	Bulk	704	1.00	5.31	2.62	2.75	2.66	1.63	3.63	4.75
1-3/4	1010355	Bulk	934	1.13	5.75	2.75	3.06	2.92	1.81	3.81	5.24
2	1010373	Bulk	1,300	1.25	6.44	3.00	3.38	3.03	2.00	4.44	5.88
2-1/4	1010391	Bulk	1,600	1.25	7.13	3.19	3.88	3.19	2.00	4.56	6.38
2-1/2	1010417	Bulk	1,900	1.25	7.69	3.44	4.13	3.69	2.00	4.69	6.63
2-3/4**	1010435	Bulk	2,300	1.25	8.31	3.56	4.38	4.88	2.00	5.00	6.88
3	1010453	Bulk	3,100	1.50	9.19	3.88	4.75	4.44	2.38	5.31	7.61
3-1/2**	1010426	Bulk	4,000	1.50	10.75	4.50	5.50	6.00	2.38	6.19	8.38

Finish: Galvanized for corrosion resistance.

Efficiency: 80% efficiency for 1/8 in through 7/8 in rope sizes and 90% efficiency for 1 in through 3-1/2 in rope sizes, based on the catalog breaking strength of the wire rope.

* Finish: Electro-plated U-bolt and nuts.

** Material: The 2-3/4 in and 3-1/2 in models use a cast steel base.

Compliance: Meets or exceeds applicable ASME B30.26 requirements.

Specification	Value
Rope Turn Back	3-1/4 in (base; see specifications)
Minimum Number of Clips	2 (base minimum; see specifications)
Wire Rope Diameter	1/8 in
Trade Size	1/8 in
Installation Torque	4.5 ft-lb (clean, dry, unlubricated threads)
Specifications	Base clip counts and turnback apply only to the wire-rope constructions and terminations in Crosby application Table 1. Add one clip for Seale or similar large-outer-wire 6 x 19 construction at 1 in and larger; add one when using a sheave instead of a thimble. Increase turnback proportionally when using extra clips. Torque is for clean, dry, unlubricated threads. Do not use on plastic-coated rope. Follow all Crosby assembly, testing and retightening instructions; these fields are not a complete installation procedure.
Series	G-450
Weight	0.06 lb
Type	U-bolt wire rope clip
Material	Forged steel base
Industry Standard	ASME B30.26
Finish	Galvanized; U-bolt and nuts electroplated
Efficiency	80% of wire-rope minimum breaking force when properly installed
Dimensions	Drawing dimensions (in): A = 0.22; B = 0.72; C = 0.44; D = 0.47; F = 0.38; G = 0.81
Cable Size	1/8in
