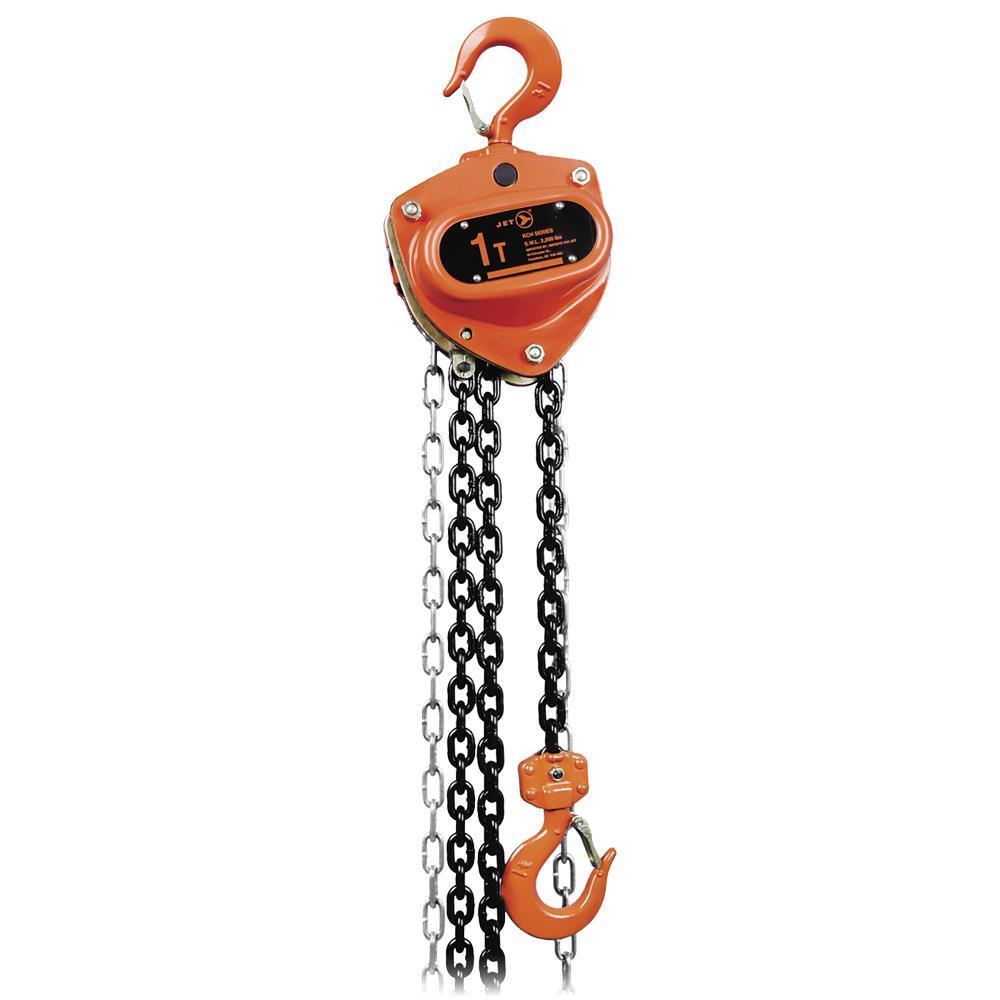

The JET KCH Series Heavy Duty Chain Hoist is a 2,200 lb (1-ton) rated manual chain hoist designed for overhead lifting applications in industrial, construction, and maintenance environments where a higher-capacity, more robustly constructed hoist is required beyond standard duty specifications. The heavy duty classification reflects the enhanced component quality and structural integrity of the KCH relative to standard duty models, making it well suited for sustained lifting operations and more demanding use cycles in industrial shop and field environments.
With a 10-foot lifting height and a minimum between-hooks distance of 11-5/8 inches, the KCH provides adequate lift travel for the majority of industrial overhead lifting tasks. The 45 mm hook opening accommodates standard to mid-size rigging hardware including shackles, rings, and beam clamps commonly used in overhead lifting configurations. A pull force of 64 lb on the hand chain is required to lift the rated load, making this hoist operable by a single worker without excessive physical effort. The body dimensions of 6-5/16 inch width by 6-5/16 inch depth provide a compact, balanced profile appropriate for the hoist's heavy duty capacity class.
The dual pawl Weston brake provides positive load holding when the hand chain is released, preventing unintended load lowering during lifting operations. The dual pawl design adds redundancy to the load-holding mechanism, an important safety feature in overhead lifting applications where uncontrolled load descent presents a serious hazard. The combination of 2,200 lb capacity, 10-foot lift height, dual pawl Weston brake, and heavy duty construction makes the JET KCH a dependable and capable chain hoist for riggers, millwrights, maintenance technicians, and industrial workers requiring a step up in capacity and durability from standard duty models.
Specifications: Series: KCH Grade: Heavy Duty Working Load Limit: 2,200 lb Lifting Height: 10 ft Minimum Between Hooks: 11-5/8 in Hook Opening: 45 mm Pull to Lift Rated Load: 64 lb Brake Type: Dual Pawl Weston Brake Body Dimensions: 6-5/16 in W x 6-5/16 in D
Compatible With: Standard to mid-size shackles, rings, beam clamps, and rigging hardware within 45 mm hook opening Trolleys, beam clamps, and overhead lifting structures rated for the applied load
Uses: Overhead load lifting and lowering in industrial and construction environments Machinery installation and removal Load positioning during maintenance and assembly operations Rigging applications requiring portable heavy duty overhead lifting capability Industrial facilities requiring higher-capacity manual chain hoist solutions
Key Features: Heavy duty manual chain hoist 2,200 lb working load limit 10 ft lifting height 45 mm hook opening — compatible with standard to mid-size rigging hardware 64 lb pull force required to lift rated load — single-operator capable Dual pawl Weston brake — positive load holding when hand chain is released Compact body: 6-5/16 in W x 6-5/16 in D 11-5/8 in minimum between hooks JET KCH Series
In Stock
