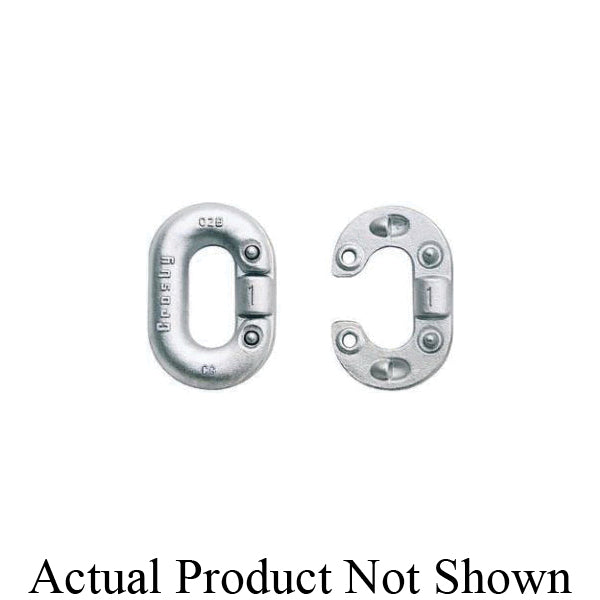

Crosby G-335 “Missing Link”® Replacement Links – 7/8 in

Description du produit

Product Description:
Crosby G-335 “Missing Link”® Replacement Links are designed for repairing or reconnecting chain assemblies in load securement and general rigging applications. These links provide a simple and effective solution for restoring chain continuity without replacing the entire chain.
Each link is manufactured from forged steel and quenched and tempered for maximum strength and durability. The two halves are joined using integral rivets, allowing quick field assembly.

Material:
Body: Forged steel
Finish: Typically galvanized for corrosion resistance
Heat treatment: Quenched and tempered for strength

Specifications:
Designed for chain repair and connection applications
Forged steel construction for durability
Integral rivets join both halves (no interlocking lugs)
Rivets must be peened after assembly for full performance
Countersunk rivet holes for flush finish
4:1 design factor (ultimate load = 4× WLL)
Meets or exceeds Federal Specification RR-C-271 Type II
Available chain sizes: approx. 1/4" to 1"
Working Load Limit range: approx. 1,325 lbs to 15,500 lbs
Some sizes include reinforced rivet holes for added strength

Uses:
Repairing damaged chain sections
Reconnecting chain links in load securement systems
Towing, tie-down, and transport applications
General-purpose chain maintenance

Key Features:
Simple repair solution – Restores chain without full replacement
High strength construction – Forged, quenched, and tempered steel
Compact design – No bulky interlocking lugs
Field assembly – Easy installation using rivets
Reliable performance – 4:1 safety factor
Durable finish – Suitable for industrial environments
