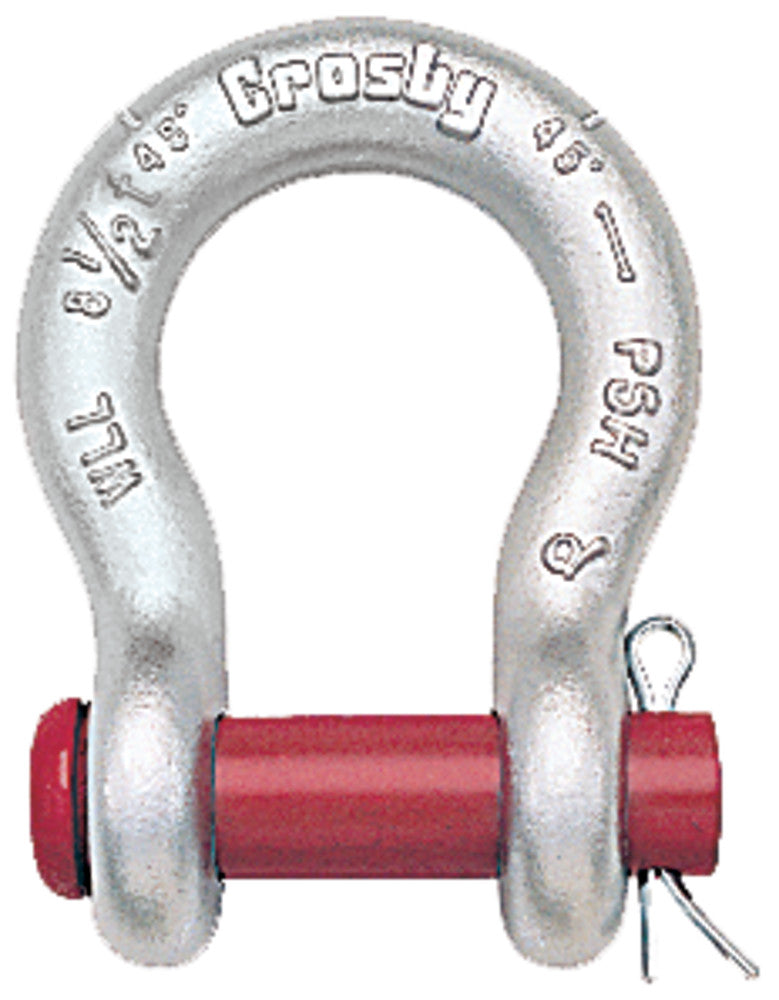

Crosby S-213 Round Pin Anchor Shackles - 1/2 in with 0.63 in Pin

Description du produit

Product Description:
Crosby G-213 / S-213 round pin anchor shackles are high-strength lifting components designed for applications where quick assembly and disassembly are required. Featuring a round pin secured with a cotter pin, these shackles are ideal for temporary or semi-permanent connections where the pin will not rotate under load.
Manufactured from forged steel and quenched and tempered for enhanced durability, these shackles are permanently marked with working load limits for safety and traceability. Available in a wide range of sizes and capacities, they are offered in galvanized or self-colored finishes for use in various environments.

Material:
Body: Forged carbon steel
Pin: Alloy steel
- Sizes 7/16 inch and above are hot dip galvanized
- Sizes 3/8 inch and below are mechanically galvanized

Specifications:
- Meets the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 1
- Maximum Proof Load is 2 times the Working Load Limit
- Minimum Ultimate Strength is 6 times the Working Load Limit
- Fatigue rated for repeated load cycles (up to 20,000 cycles)
- Working Load Limit permanently shown on every shackle
- Designed to meet demanding lifting and rigging requirements

Uses:
- General lifting & rigging
- Temporary or semi-permanent connections
- Material handling
- Construction and industrial lifting
- Applications where pin rotation is not expected

Key Features:
Round pin design – Secured with cotter pin for reliable fastening
High strength construction – Forged, quenched, and tempered for durability
Marked WLL – Permanently stamped for safety and traceability
Corrosion resistant – Available in galvanized or self-colored finishes
Fatigue rated – Designed for repeated loading cycles
Trusted quality – Features Crosby Red Pin® identification
