Crosby

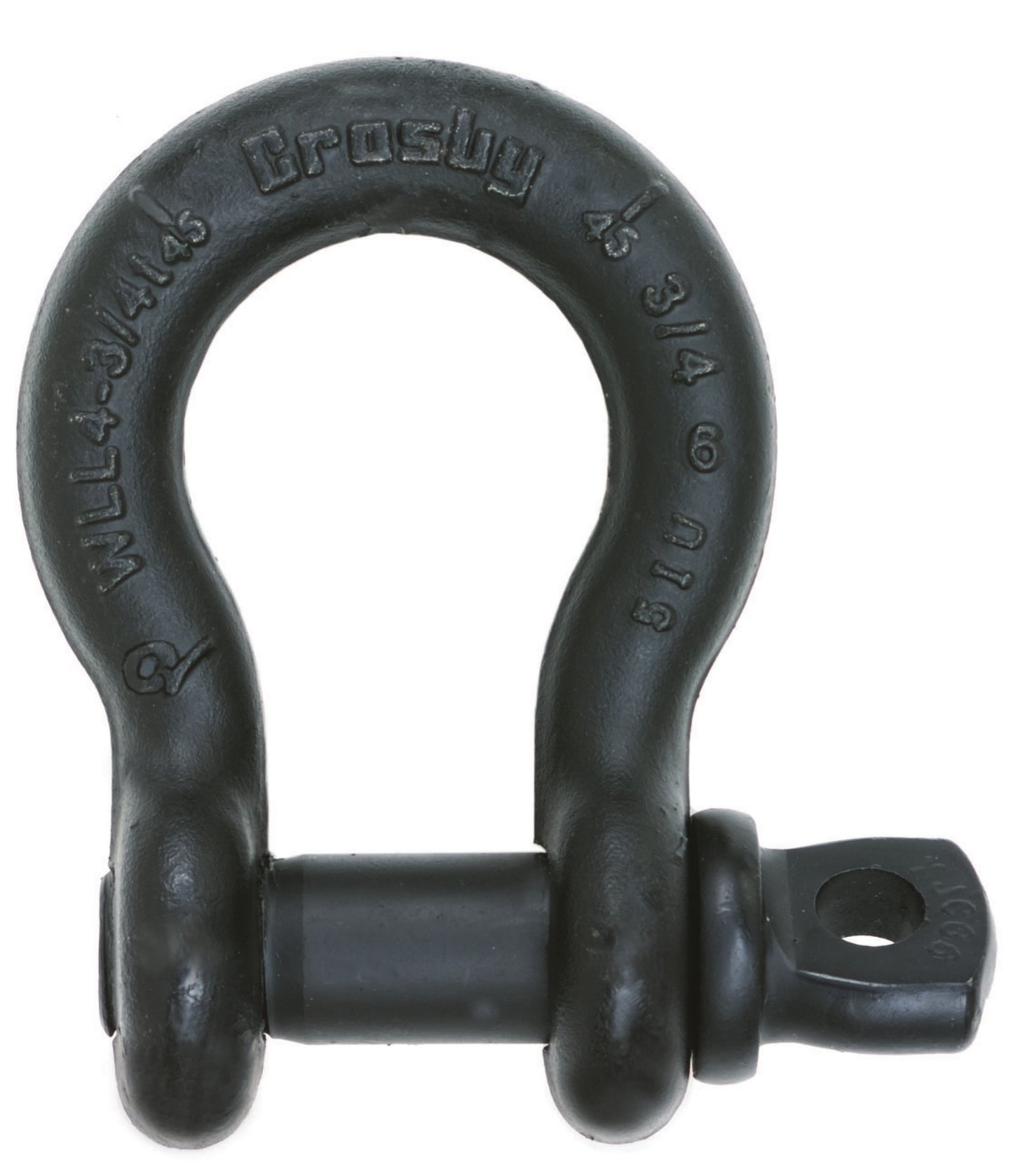

S-209T Theatrical Shackles

S-209T Theatrical Shackles

Part #1018706

$16.75 CAD
$16.75 CAD
Promotion Épuisé
Size
Afficher tous les détails

Description du produit

Crosby S-209T theatrical shackles are specialized lifting components designed for stage, studio, and entertainment rigging applications where both performance and appearance are critical. Featuring a screw pin configuration, these shackles allow quick installation and removal while maintaining reliable load control.
Manufactured from forged steel and quenched and tempered with alloy pins, these shackles deliver high strength and durability. A flat black baked-on powder coat finish reduces light reflection, allowing the hardware to blend into stage environments without distracting from performances.

Material:
Body: Forged carbon steel
Pin: Alloy steel
Quenched and tempered for enhanced durability
Flat black powder coat finish for low visibility

Specifications:
Meets or exceeds ASME B30.26 requirements
Conforms to Federal Specification RR-C-271, Type A, Grade A, Class 2
Meets EN 13889:2003 standards
Proof Load: 2x Working Load Limit
Ultimate Strength: 6x Working Load Limit
Design Factor: 6:1
Fatigue rated for repeated load cycles
Available in sizes 3/8" to 3/4" (1T to 4-3/4T)
Working Load Limit permanently marked on each shackle

Uses:
Stage and theatrical rigging
Entertainment and production setups
Studio lighting and equipment suspension
Film and broadcast rigging
Temporary lifting and rigging connections

Key Features:
Low-visibility finish – Flat black coating prevents light reflection
High strength construction – Forged, quenched, and tempered
Quick installation – Screw pin allows fast setup and removal
Fatigue rated – Designed for repeated dynamic loading
Marked WLL – Ensures safety and traceability
Industry compliant – Meets major rigging standards

Nominal Size (in) Working Load Limit (t) Stock No. Weight Each (lb) Inside Width at Pin (in) Inside Width at Pin Tolerance ± (in) Pin Diameter (in) Inside Length - Pin to Crown (in) Inside Length Tolerance ± (in) Bow Diameter (in) Inside Width at Top of Bow (in) Eye Width Across Pin Ears (in) Outside Width at Top of Bow (in) Overall Height (in) Screw Pin Eye Length (in) Outside Width at Pin (in) Bow Thickness at Crown (in)
3/8 1 1018706 0.31 0.66 0.06 0.44 1.45 0.13 0.38 1.03 0.92 1.79 2.50 0.25 2.06 0.38
7/16 1-1/2 1018724 0.38 0.75 0.06 0.50 1.69 0.13 0.44 1.16 1.06 2.04 2.91 0.31 2.37 0.44
1/2 2 1018742 0.72 0.81 0.06 0.63 1.88 0.13 0.50 1.31 1.18 2.31 3.28 0.38 2.69 0.50
5/8 3-1/4 1018760 1.37 1.06 0.06 0.75 2.38 0.13 0.62 1.69 1.50 2.93 4.19 0.44 3.34 0.69
3/4 4-3/4 1018778 2.35 1.25 0.06 0.88 2.81 0.25 0.75 2.00 1.81 3.50 4.97 0.50 3.97 0.81

Series: S-209T Theatrical Screw Pin Anchor Shackles

Material: Forged steel, quenched and tempered, with alloy pins.

Finish: Flat black baked-on powder coat finish for reduced visibility in theatrical and stage applications.

Design Factor: 6:1.

Proof Load: Maximum proof load is 2 times the Working Load Limit.

Performance: Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.

Identification: Working Load Limit and Grade 6 are permanently marked on each shackle.

Compliance: Meets the performance requirements of EN 13889 and meets or exceeds applicable ASME B30.26 requirements.
