• Crosby G-2140E Alloy Easy-Loc Shackles - 6 in with 6 in Bolt - Shackles - Hercules Lifting
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
1 1
Crosby

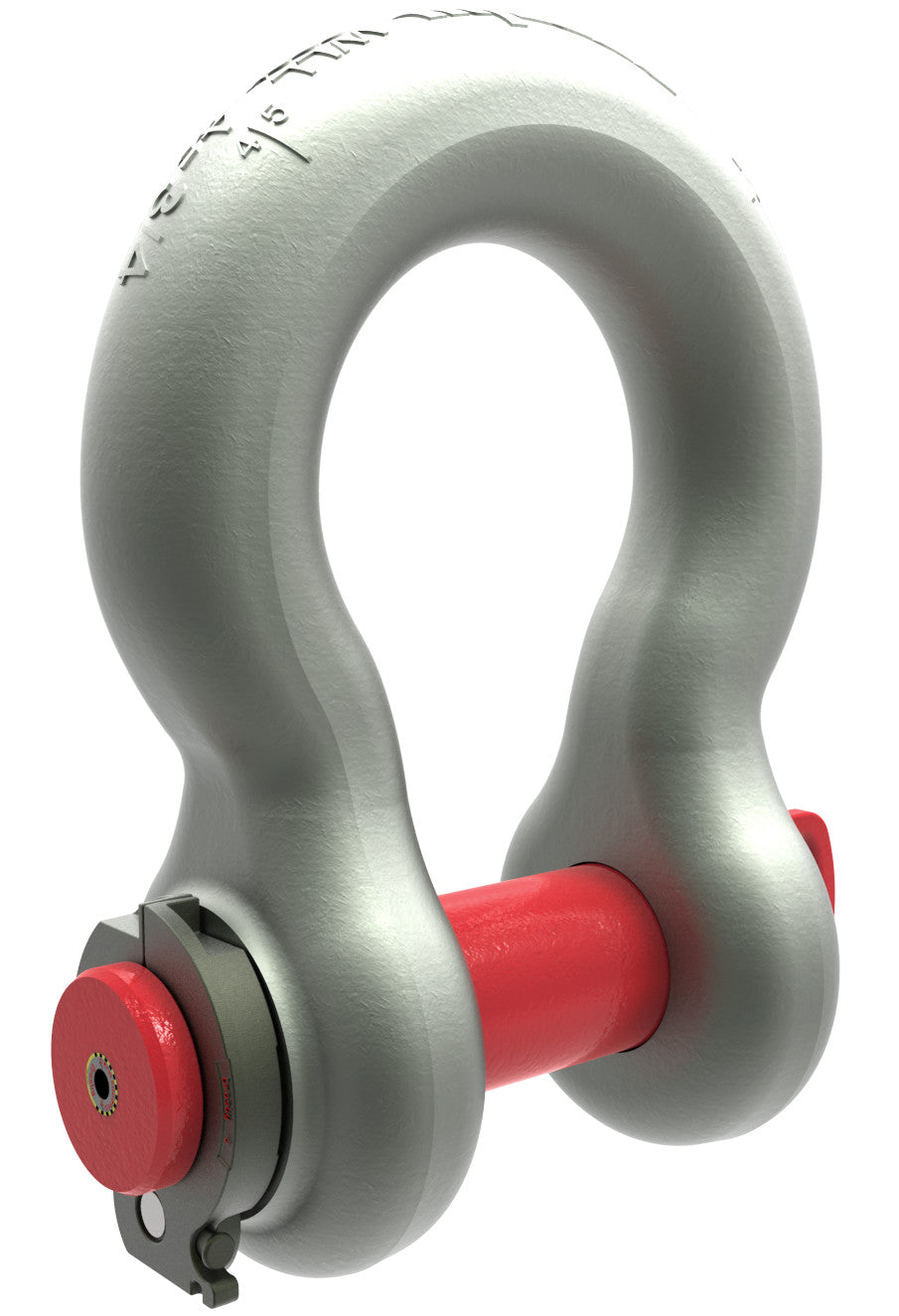

G-2140E Alloy Easy-Loc Shackles

G-2140E Alloy Easy-Loc Shackles

Part #1021475

$17,959.54 CAD
$17,959.54 CAD
Promotion Épuisé
Size
Afficher tous les détails

Description du produit

Crosby G-2140E Alloy Easy-Loc shackles are heavy-duty lifting components designed for high-capacity and critical rigging applications where speed, safety, and efficiency are essential. Featuring Crosby’s patented Easy-Loc bolt securement system, these shackles eliminate the need for traditional nuts and cotter pins, significantly reducing installation and removal time.
Manufactured from forged alloy steel and quenched and tempered for superior strength, these shackles are built for demanding environments such as offshore and heavy lifting operations. The Easy-Loc system allows for secure fastening with minimal effort, often enabling one-handed operation during rigging setups.

Material:
Body: Forged alloy steel
Bolt: Alloy steel (Easy-Loc system with stainless steel components)
Quenched and tempered for enhanced strength
Dimetcoted® coating with painted pins for corrosion resistance

Specifications:
Meets or exceeds ASME B30.26 requirements
Conforms to Federal Specification RR-C-271, Type IVA, Grade B, Class 3
Proof Load: 2x Working Load Limit
Ultimate Strength: approx. 4x Working Load Limit (large capacity range)
Available in capacities from 200 to 300 metric tons
Approved operating temperature range: -40°C to 204°C
Individually proof tested, serialized, and MPI inspected
Can meet DNV impact requirements (42 Joules at -20°C)
RFID equipped on larger sizes

Uses:
Heavy-duty and high-capacity lifting
Offshore and marine rigging
Crane and multi-leg sling applications
Industrial and construction lifting
Applications requiring fast installation/removal

Key Features:
Easy-Loc system – Eliminates need for nut and cotter pin
Fast installation – Reduces install/removal time by up to 90%
One-hand operation – Simplifies rigging in difficult conditions
High strength construction – Forged, quenched, and tempered alloy steel
Corrosion resistant – Dimetcoted® coating for harsh environments
Certified and traceable – Serialized and proof tested
Subsea-ready durability – Suitable for offshore applications

Nominal Size (in) Working Load Limit (tons) Stock No. Weight Each (lb) Inside Width at Pin (in) Inside Width Tolerance ± (in) Pin Diameter (in) Inside Length (in) Inside Length Tolerance ± (in) Bow Diameter (in) Inside Width at Top of Bow (in) Eye Width (in) Outside Width at Top of Bow (in) Overall Height (in) Round-Head Bolt Handle Width (in) Outside Width at Pin (in) Round-Head Bolt Handle Thickness (in) Bow Thickness at Crown (in) Replacement Bolt Stock No. Replacement EZ-Loc Collar Stock No.
4-3/4 200 1021475 458 7.25 0.25 4.76 15.18 0.25 4.75 11.00 10.50 20.30 28.03 4.00 23.01 1.80 5.00 1087603 1025837
5 250 1021484 597 8.50 0.25 5.01 18.50 0.25 5.00 13.00 12.00 23.63 32.63 4.00 23.84 1.80 5.63 1087612 1025837

Design Factor: 4:1

Proof Load: Maximum proof load is 2 times the Working Load Limit.

Handled Bolt: Both models are furnished with round-head bolts with a handle.
