Crosby

S-280 Web Connector

Name: S-280 Web Connector
Brand: Crosby
SKU: 1021690
Price: 114.20 CAD
Availability: OutOfStock

SKU: Part #1021690

$151.18 CAD

Promotion Épuisé

Round Sling Size (No.) 1 & 2 3 4 5 & 6

Quantité

Afficher tous les détails

Description du produit

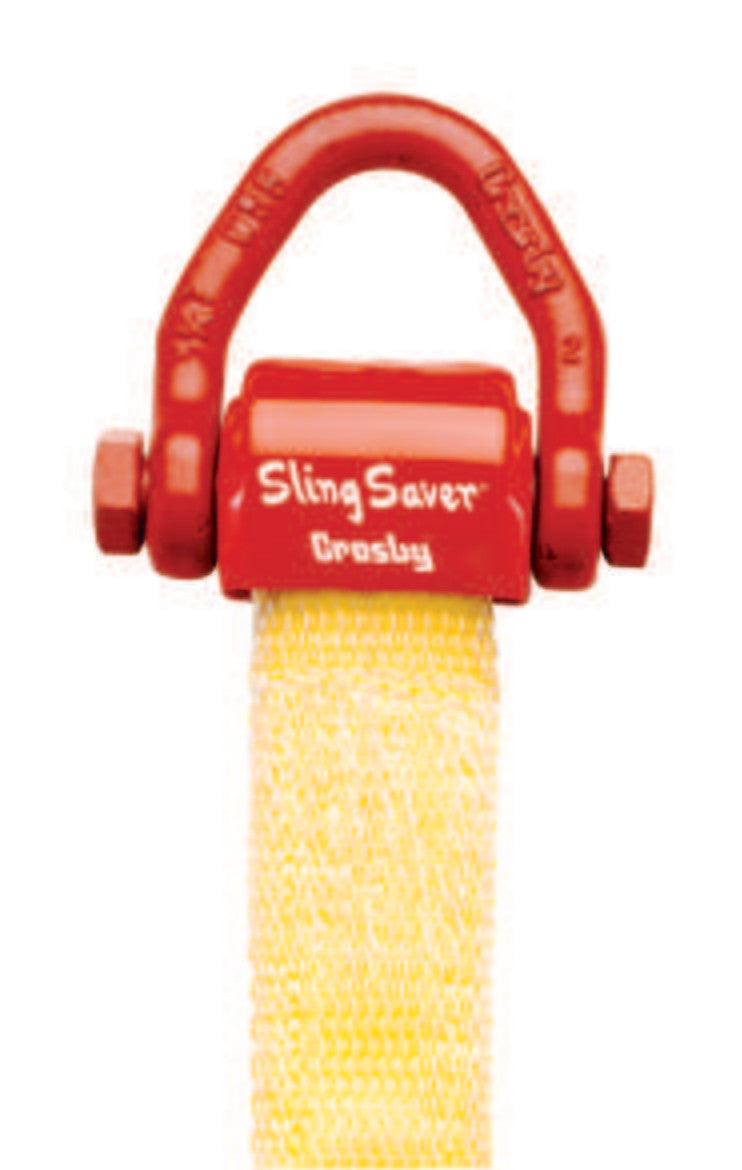

Crosby S-280 web connectors are specialized lifting components designed to connect synthetic web slings and round slings to conventional rigging hardware such as hooks, master links, and shackles. Engineered as part of Crosby’s Sling Saver® system, these connectors improve sling performance by providing a larger bearing surface and reducing wear on sling material.
Featuring a smooth spool design with a protective vinyl cover, the S-280 helps maintain proper sling positioning while preventing damage to fibers. This design allows synthetic slings to achieve 100% of their rated Working Load Limit, making them ideal for demanding lifting and rigging applications.

Material:
Body: Forged alloy steel
Pin/Spool: Alloy steel
Durable vinyl cover protects sling material
All-alloy construction for strength and durability

Specifications:
Meets requirements of WSTDA-RS1 standards for synthetic slings
Design Factor: 5:1
Proof Load: 2x Working Load Limit
Designed for use with Type III (eye & eye), Class 7, 2-ply web slings
Compatible with round slings, single ply, and endless slings
Allows 100% sling efficiency vs traditional shackles

Uses:
Connecting synthetic web slings to rigging hardware
Round sling lifting applications
Field-assembled bridle systems
Industrial and construction lifting
Applications requiring improved sling protection

Key Features:
Sling Saver® design – Protects sling fibers and reduces wear
Improved efficiency – Allows full Working Load Limit of slings
Wide bearing surface – Better load distribution across sling fibers
Vinyl-covered spool – Prevents damage and maintains sling position
Alloy construction – High strength and durability
No snagging points – Eliminates pin or edges that could damage slings

Round Sling Size (No.)	Webbing Width (in)	Eye Width (in)	Ply	Working Load Limit (tons)	Stock No.	Weight Each (lb)	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Dimension H (in)	Dimension I (in)	Dimension J (in)
1 & 2	2	2	2	3-1/4	1021681	1.5	0.75	0.62	1.63	2.44	0.63	0.62	2.13	0.56	1.19	2.02
3	3	1.5	2	4-1/2	1021690	1.9	0.75	0.69	1.10	2.01	0.75	0.69	1.63	0.60	1.38	2.34
4	4	2	2	6-1/4	1021700	2.9	0.75	0.81	1.66	2.56	0.88	0.75	2.13	0.69	1.62	2.46
5 & 6	6	3	2	8-1/2	1021709	5.1	1.00	0.94	2.47	3.50	1.00	0.88	3.13	0.88	1.88	2.84
