Crosby

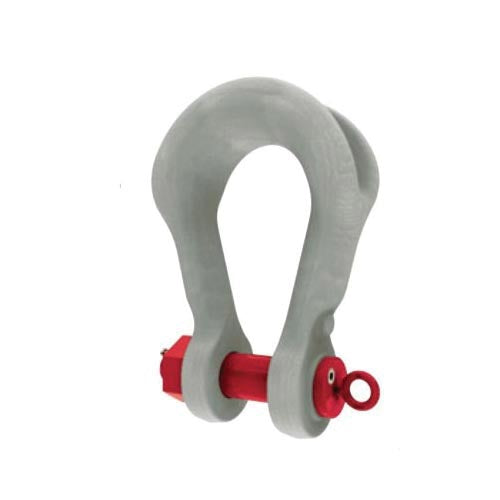

G-2160 Wide Body Shackles

G-2160 Wide Body Shackles

Part #1021265

$478.95 CAD
$478.95 CAD
Promotion Épuisé
Effective Body Diameter
Afficher tous les détails

Description du produit

Crosby G-2160 wide body shackles are designed to improve sling performance in heavy lifting applications. The increased bow radius provides a larger bearing surface, helping reduce stress on wire rope slings and improve overall efficiency.
These shackles are commonly used in applications where larger sling diameters are required, offering a practical solution for demanding rigging environments.

Material:
Body: Alloy steel
Pin: Alloy steel

Specifications:
Designed with an increased bow radius for improved sling performance
Provides a larger bearing surface compared to standard shackles
Suitable for use with larger diameter slings
Designed for heavy lifting applications

Uses:
Heavy lifting and rigging
Wire rope sling applications
Industrial lifting setups
Applications requiring improved sling efficiency

Key Features:
Wide body design – Increases bearing surface for slings
Improved efficiency – Helps reduce stress on sling material
Heavy-duty construction – Designed for demanding applications
Compatible design – Suitable for larger sling diameters

Working Load Limit (tons) Stock No. Weight Each (lb) Inside Width at Pin (in) Pin Diameter (in) Inside Length - Pin to Crown (in) Jaw Opening Width (in) Inside Width at Top of Bow (in) Eye/Nut Width at Pin (in) Outside Width at Top of Bow (in) Overall Height (in) Wide-Body Bearing Thickness (in) Bolt Lifting Eye Height (in) Outside Width at Pin (in) Bolt Lifting Eye Width (in) Bow Thickness at Crown (in) Nut/Collar Projection (in) Effective Body Diameter (in) Replacement Bolt Stock No.
7 1021256 4.0 1.25 0.88 3.56 1.60 2.50 1.82 4.10 5.87 1.25 — 4.14 — 0.96 0.69 2.1 —
12-1/2 1021265 8.8 1.69 1.13 4.63 2.13 3.26 2.38 5.51 7.63 1.37 — 5.38 — 1.25 0.92 2.4 —
18 1021274 14.9 2.03 1.38 5.81 2.50 4.00 2.69 6.76 9.38 1.50 — 6.69 — 1.41 1.16 2.8 1083349
55 1021287 68.0 3.25 2.25 9.36 4.50 7.00 4.63 12.26 15.63 2.00 — 10.36 — 2.63 2.00 4.3 1083375
75 1022101 112 4.13 2.75 11.53 5.00 7.28 5.34 12.64 18.66 3.75 4.00 15.04 1.80 2.75 2.39 6.3 1089524
125 1022110 193 5.12 3.15 14.37 5.91 8.66 6.50 15.47 23.00 3.75 4.00 18.32 1.80 3.50 3.10 6.8 1089533
200 1022118 420 5.91 4.12 18.91 8.56 10.84 8.41 20.27 30.44 5.25 4.00 19.35 1.80 4.94 3.39 9.5 1089542
300 1022127 805 7.38 5.25 23.63 10.38 12.62 10.50 23.93 37.66 6.13 4.00 22.61 1.80 5.78 4.30 11.4 1089551

Design Factor: 5:1

Proof Load: Maximum proof load is 2 times the Working Load Limit, except the 125 ton model which is proof tested to 1.6 times the Working Load Limit.

Replacement Parts: Replacement bolts are valid only for the specific stock number listed.
