Please note: images may not be exact representations. Always refer to manufacturer's specifications.

1 1

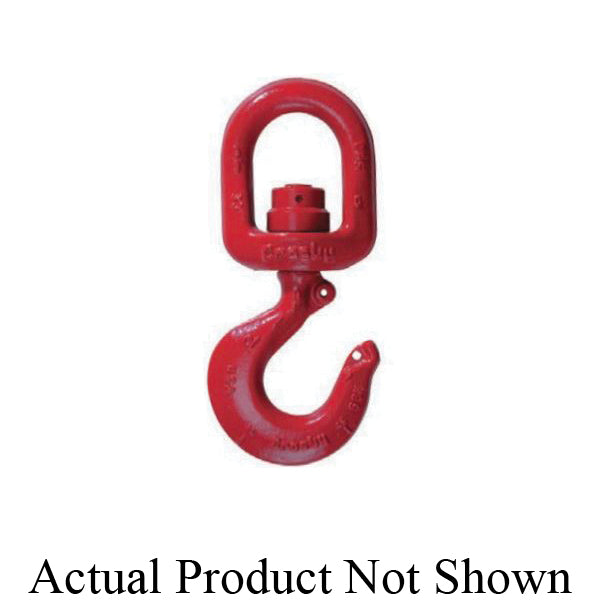

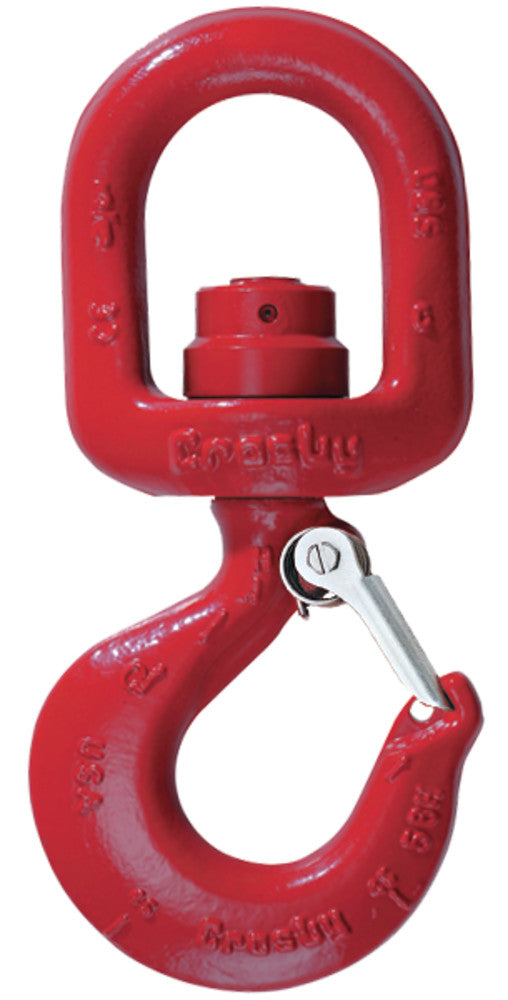

L-3322B Swivel Hooks with Bearing

Name: L-3322B Swivel Hooks with Bearing
Brand: Crosby
SKU: 1028609
Price: 285.28 CAD
Availability: InStock

SKU: Part #1028609

Please contact us for pricing

Afficher tous les détails

Product Description

The Crosby L-3322B Swivel Hooks with Bearing are engineered for demanding lifting and rigging applications requiring dependable load positioning, smooth hook rotation under load, and enhanced lifting safety. Designed with an anti-friction bearing system, these heavy-duty swivel hooks rotate freely while loaded, helping reduce rigging stress and improve load alignment during lifting operations.
Manufactured from forged alloy steel and precision quenched and tempered for maximum durability, the L-3322B hooks provide exceptional strength without unnecessary bulk or weight. Featuring Crosby’s QUIC-CHECK® deformation and angle indicators, low-profile hook tips, and integrated latch compatibility, these swivel hooks are built for industrial lifting, offshore rigging, crane operations, and heavy-duty material handling environments.

Material:
Forged alloy steel
Quenched and tempered construction
Heavy-duty industrial finish

Specifications:
Swivel hook design with anti-friction bearing system
Bearing design allows hook to rotate freely under load
Available in capacities ranging from 2 through 15 metric tons
Proper forging and precision heat treatment maximize strength while reducing excess weight
Low profile hook tip designed to utilize Crosby S-4320 or PL-N latch kits
QUIC-CHECK® deformation and angle indicators forged into hook body
Hook Identification Code forged into each hook
Integrated latch system improves load retention and lifting safety
Proof tested to 2.5 times the Working Load Limit
4.5:1 design factor
Suitable for overhead lifting and rigging applications
Replacement latch kits available for maintenance and serviceability

Uses:
Industrial lifting operations
Crane hook assemblies
Rigging and sling systems
Offshore lifting applications
Construction material handling
Heavy-duty overhead lifting
Load positioning applications
Marine and industrial rigging

Key Features:
Anti-friction bearing design – Allows smooth hook rotation while under load
Forged alloy construction – Built for demanding industrial lifting environments
QUIC-CHECK® indicators – Simplifies inspection and deformation monitoring
Low profile hook tip – Designed for Crosby latch system compatibility
Load rated design – Engineered for dependable lifting performance
Reduced bulk construction – Maximizes strength without unnecessary weight
Integrated latch system – Improves lifting safety and load retention
Heat treated durability – Designed for repeated heavy lifting cycles

Working Load Limit (tons)	Hook ID Code	Stock No.	Weight Each (lb)	Eye Outside Width (in)	Eye Inside Height (in)	Eye Inside Width (in)	Overall Hook Width (in)	Upper Hook Body Width (in)	Upper Hook Body Thickness (in)	Hook Bowl Width (in)	Hook Tip / Latch Section Height (in)	Hook Bowl Projection (in)	Overall Length (in)	Saddle / Bowl Seat Diameter (in)	Throat Opening (in)	Reach (in)	Eye Section Thickness (in)	Deformation Indicator Distance (in)	Replacement Latch Stock No.
2	GA	1028609	2.5	3.00	1.50	1.75	3.59	1.50	1.00	1.16	1.06	0.88	7.64	0.88	1.00	6.01	0.63	2.00	1096421
3	HA	1028618	3.8	3.50	1.56	2.00	4.00	1.62	1.13	1.31	1.19	0.94	8.60	0.94	1.09	6.72	0.75	2.00	1096468
5	IA	1028627	7.0	4.00	1.56	2.25	4.84	2.00	1.44	1.63	1.50	1.31	10.32	1.13	1.36	8.00	0.88	2.50	1096515
7	JA	1028636	14.0	5.00	1.94	2.75	6.27	2.50	1.81	2.06	1.78	1.66	12.84	1.44	1.61	9.90	1.13	3.00	1096562
11	KA	1028645	22.3	5.62	2.05	3.12	7.54	3.00	2.25	2.63	2.41	1.88	15.24	1.63	2.08	11.74	1.25	4.00	1096609
15	LA	1028654	36.0	7.12	3.62	4.10	8.33	3.25	2.59	2.94	2.62	2.19	18.64	1.94	2.27	14.41	1.50	4.00	1096657
