Crosby

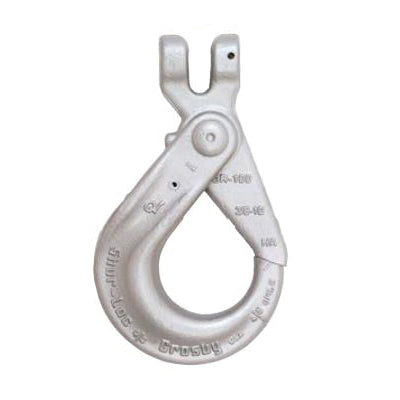

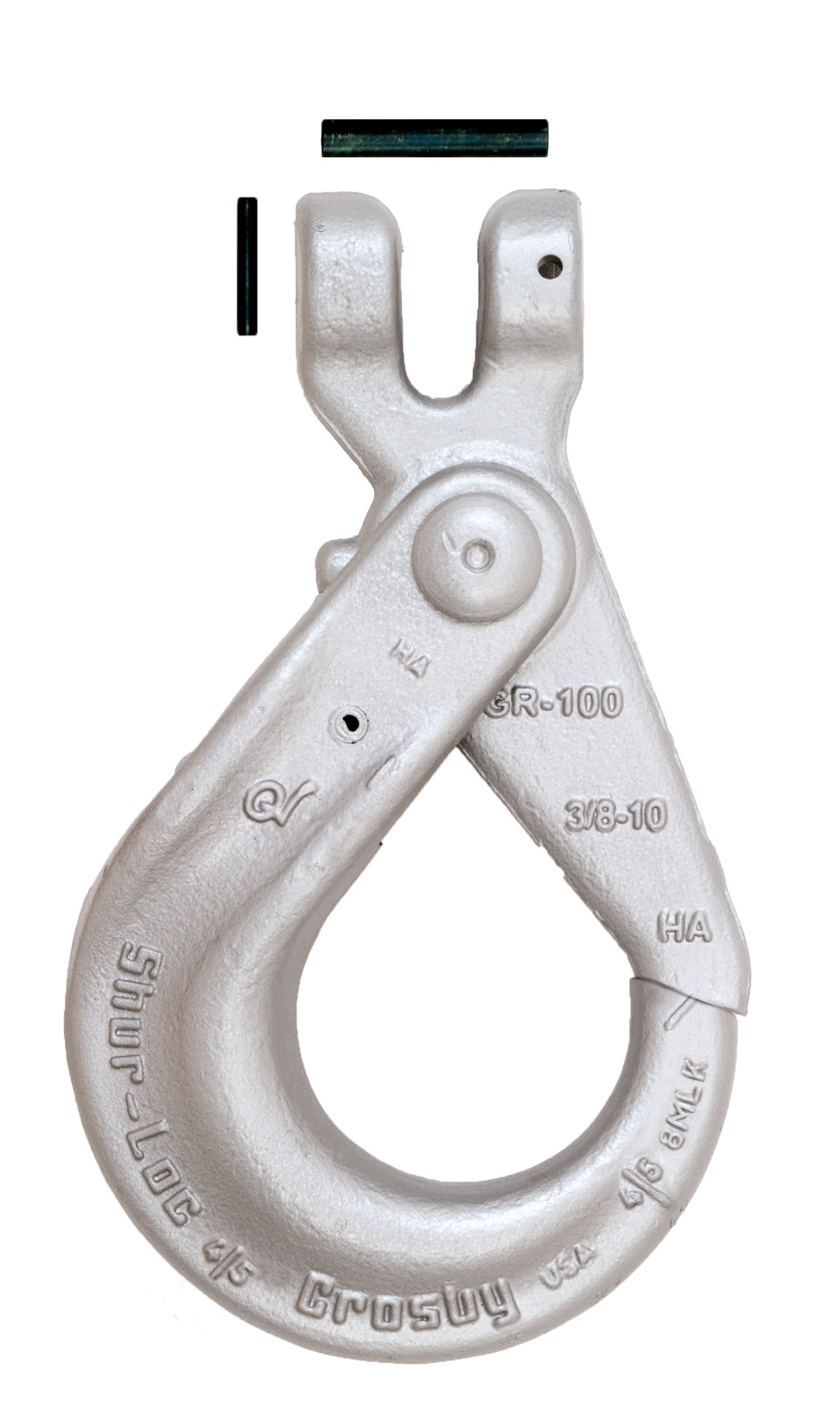

S-1317 Clevis Hook

S-1317 Clevis Hook

Part #1029000

$264.81 CAD
$264.81 CAD
Promotion Épuisé
Chain Size
Afficher tous les détails

Description du produit

The Crosby S-1317 Clevis Hook with SHUR-LOC® positive locking latch is designed for secure overhead lifting and rigging applications using Grade 100 and Grade 80 alloy chain slings. Engineered for maximum safety and dependable performance, the S-1317 features a self-locking latch mechanism that automatically locks when the hook is loaded, helping prevent accidental disengagement during lifting operations.
Manufactured from forged alloy steel and heat treated for durability, the S-1317 delivers high strength, fatigue resistance, and reliable operation in demanding industrial, construction, marine, and material handling environments.

Material:
Forged alloy steel
Quenched and tempered steel construction
Platinum-colored Grade 100 finish

Specifications:
Clevis hook with SHUR-LOC® positive locking latch
Suitable for use with Grade 100 and Grade 80 alloy chain
Positive lock latch automatically self-locks when loaded
Recessed trigger design helps protect latch mechanism from damage
Enlarged thumb access for easier operation while wearing gloves
Engineered flat design for connection to Crosby S-1325 chain coupler
Individually proof tested to 2-1/2 times the Working Load Limit with certification
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
Available in Working Load Limits from 3,200 lbs to 59,700 lbs
4:1 design factor
Meets or exceeds ASME B30.10 requirements
Can be used for personnel lifting applications when properly installed and locked in accordance with OSHA requirements

Uses:
Chain sling assemblies
Industrial overhead lifting
Construction and material handling
Marine and offshore rigging
Personnel lifting applications when properly configured
General rigging and lifting operations

Key Features:
SHUR-LOC® latch – Automatically locks under load for improved safety
Forged construction – Built for demanding lifting applications
Protected trigger design – Recessed latch reduces accidental damage
Easy operation – Enlarged thumb access improves handling
Grade 100 rated – 25% stronger than Grade 80 components
Proof tested – Individually tested for reliability and safety
Fatigue resistant – Designed for repeated lifting cycles
Personnel lifting capable – Meets OSHA intent requirements when properly installed

Chain Size (in) Chain Size (mm) Working Load Limit (lb) Stock No. Weight Each (lb) Reach / Clevis Height - C (in) Hook Bowl Depth - D (in) Overall Hook Width - E (in) Overall Height - G (in) Hook Body Thickness - J (in) Throat Opening - L (in) Deformation Indicator Distance - AA (in) Replacement Trigger Kit Stock No.
— 6 3,200 1028991 0.77 3.44 0.79 2.60 4.75 0.63 1.16 1.50 6603010
1/4 7 4,300 1029000 1.80 4.48 1.10 3.51 6.25 0.81 1.48 2.00 6603011
5/16 8 5,700 1029009 1.80 4.47 1.10 3.51 6.25 0.81 1.48 2.00 6603011
3/8 10 8,800 1029018 3.66 5.53 1.17 4.39 7.54 0.94 1.83 2.50 6603012
1/2 13 15,000 1029027 6.80 6.81 1.67 5.49 9.52 1.16 2.22 3.00 6603013
5/8 16 22,600 1029036 11.9 8.22 2.04 6.55 11.61 1.50 2.65 3.50 6603014
3/4 18-20 35,300 1029071 15.0 9.42 2.22 7.76 13.21 2.03 3.52 5.00 6603015
7/8 22 42,700 1029080 28.0 11.14 2.45 8.75 15.45 2.20 3.83 6.00 6603008
1 26 59,700 1029089 49.5 12.56 3.21 9.87 18.44 2.68 4.09 6.50 6603017

Series: S-1317 SHUR-LOC® Clevis Hook

Material: Forged alloy steel, quenched and tempered.

Design Factor: 4:1.

Proof Test: Individually proof tested to 2.5 times the Working Load Limit with certification.

Compatibility: Suitable for use with Grade 100 and Grade 80 chain.

Latch: Positive-locking SHUR-LOC® latch is self-locking when the hook is loaded. The recessed trigger is designed to sit flush with the hook body to help protect it from damage.

Performance: Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.

Deformation Indicator: AA is the Crosby deformation-indicator reference dimension.
