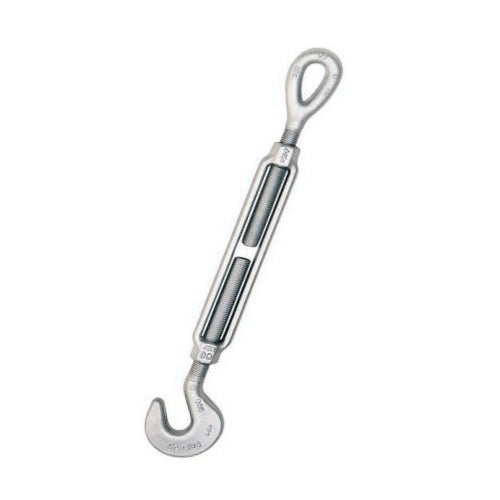

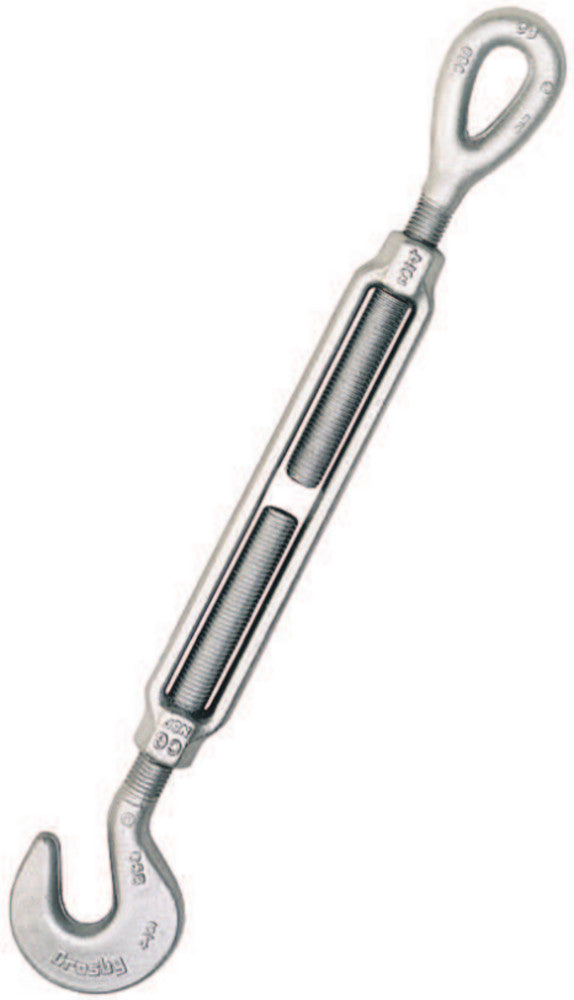

Crosby HG-225 Turnbuckle Hook & Eye - 3/4 in X 12 in

Description du produit

Product Description:
The Crosby HG-225 Hook & Eye Turnbuckles are engineered for straight-line tensioning applications requiring dependable load adjustment, high fatigue resistance, and rugged durability in lifting, rigging, marine, utility, and structural support systems. Designed with a forged hook end and elongated forged eye end, these heavy-duty turnbuckles provide secure connection points while allowing precise tension adjustment for wire rope, cable, chain, and structural assemblies.
Manufactured from hot-dip galvanized steel with quenched and tempered or normalized end fittings, the HG-225 turnbuckles are built for demanding industrial and outdoor environments. Their heavy-duty forged hook design provides greater cross-sectional strength and improved fatigue performance for repeated tensioning operations.

Material:
Forged steel construction
Hot-dip galvanized finish
Quenched and tempered or normalized end fittings

Specifications:
Hook & eye turnbuckle design
Designed for straight or in-line pull applications only
Forged elongated eye design reduces stress concentration
Forged hook provides improved strength and fatigue properties
Bodies heat treated by normalizing
Modified UNJ threads on end fittings improve fatigue resistance
Body utilizes UNC threads
Hot-dip galvanized for corrosion resistance
For sizes 1/4 in through 1 in, a shackle one size smaller can be reeved through the eye
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification FF-T-791b and ASTM F-1145 performance requirements
Fatigue rated for repeated loading applications
Proof load is 2.5 times the Working Load Limit
Ultimate load is 5 times the Working Load Limit

Uses:
Wire rope tensioning systems
Structural support assemblies
Marine and offshore rigging
Utility and tower guying
Industrial rigging systems
Construction applications
Overhead support systems
General tensioning applications

Key Features:
Forged hook design – Provides improved strength and fatigue resistance
Elongated forged eye – Helps reduce stress and simplifies attachment
Hot-dip galvanized finish – Improves corrosion resistance in outdoor environments
Heat-treated components – Engineered for durability and long service life
Modified UNJ threads – Improves fatigue performance under repeated loading
Heavy-duty forged construction – Built for demanding industrial applications
Precise tension adjustment – Allows dependable load alignment and system tensioning
ASME compliant design – Meets critical performance and safety requirements
