• Crosby HG-228 Jaw & Jaw - Size 1 x 12 in - Turnbuckles - Hercules Lifting
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
1 1
Crosby

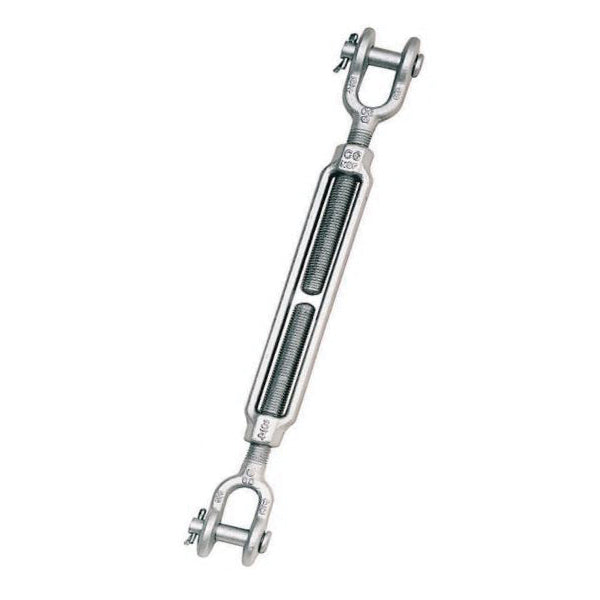

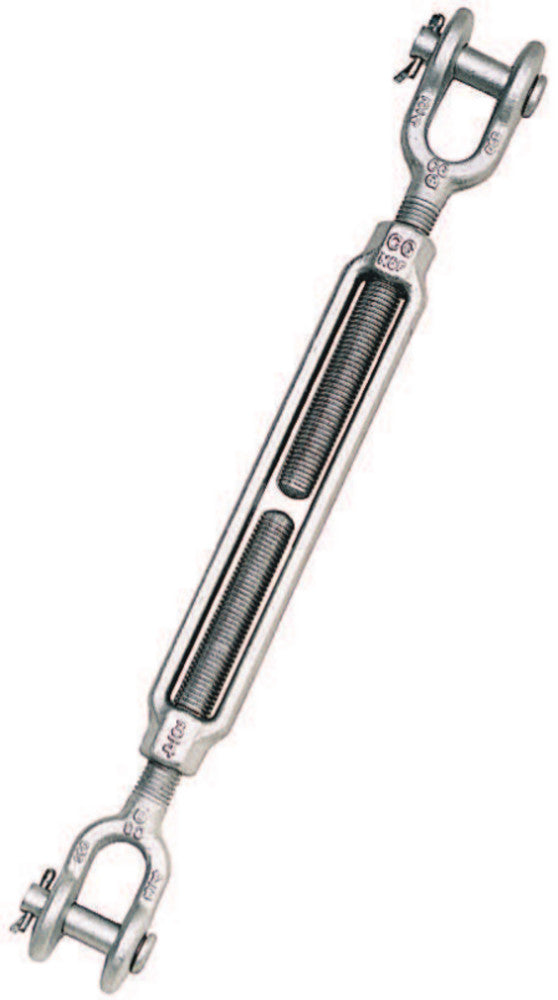

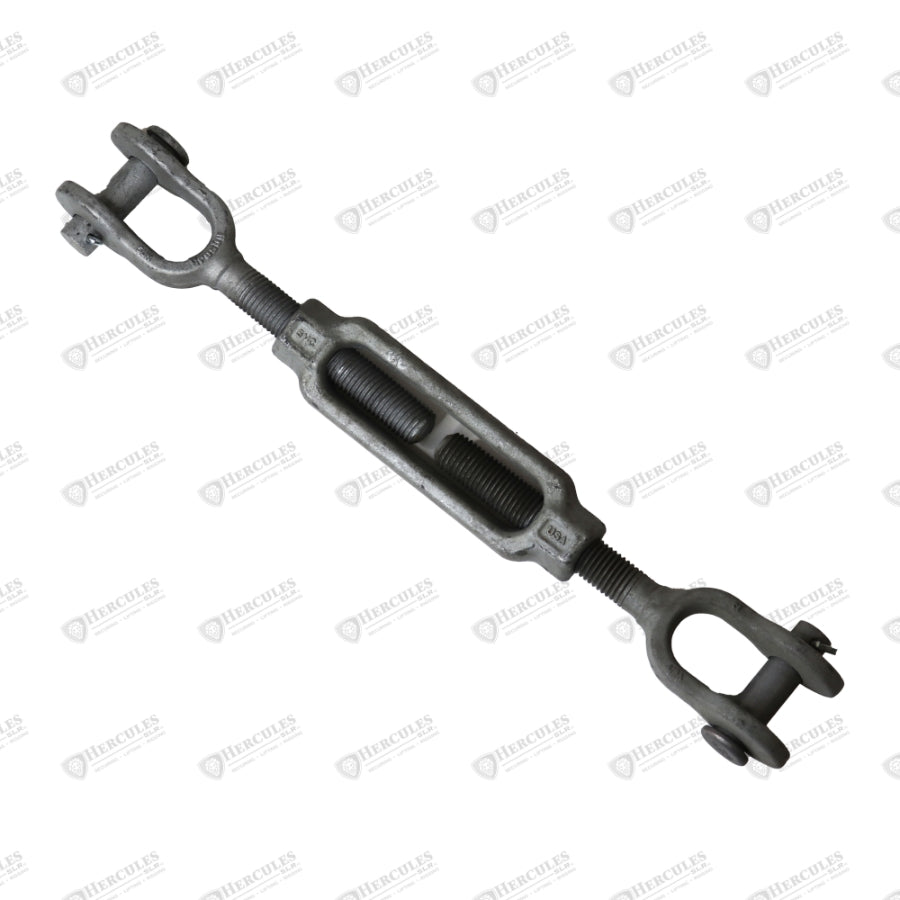

HG-228 Jaw & Jaw

HG-228 Jaw & Jaw

Part #1032536

$120.64 CAD
$120.64 CAD
Promotion Épuisé
Thread Diameter & Take Up
Afficher tous les détails

Description du produit

The Crosby HG-228 Jaw & Jaw Turnbuckle is engineered for heavy-duty rigging and tensioning applications requiring secure jaw-end attachment, dependable load adjustment, and superior fatigue resistance. Designed for straight or in-line pull applications only, these heavy-duty turnbuckles provide reliable tension control for industrial rigging, marine systems, utility projects, construction operations, and overhead lifting environments.
Manufactured from quenched and tempered or normalized steel with hot-dip galvanized protection, the HG-228 turnbuckles deliver exceptional durability and dependable long-term performance in demanding outdoor and industrial conditions. Featuring forged jaw ends, modified UNJ threads, and fatigue-rated construction, these turnbuckles are built for rugged service and repeated heavy-duty loading cycles.

Material:
Quenched and tempered or normalized steel
Heat-treated steel body
Hot-dip galvanized finish

Specifications:
Jaw & jaw turnbuckle design
Recommended for straight or in-line pull applications only
Forged jaw ends provide secure clevis-style attachment
Jaw ends fitted with bolts and nuts on sizes 1/4 in through 5/8 in
Jaw ends fitted with pins and cotters on sizes 3/4 in through 2-3/4 in
Modified UNJ threads on end fittings improve fatigue resistance
Body utilizes UNC threads
Hot-dip galvanized for corrosion resistance
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
Working Load Limits available from 800 lb through 75,000 lb
Proof load is 2.5 times the Working Load Limit
Ultimate load is 5 times the Working Load Limit
Lock nuts available for all sizes
Meets or exceeds ASME B30.26 requirements
Meets Federal Specification FF-T-791b Type 1 Form 1 Class 7 and ASTM F-1145 except for contractor-required provisions
Available in sizes from 5/16 in x 4-1/2 in through 2-3/4 in x 24 in

Uses:
Industrial rigging systems
Construction tensioning applications
Marine and offshore rigging
Utility and transmission line work
Cable and wire tensioning
Overhead lifting systems
General load adjustment applications
Heavy-duty in-line pull applications

Key Features:
Forged jaw ends – Provide secure attachment and dependable load handling
Hot-dip galvanized finish – Improves corrosion resistance in outdoor environments
Fatigue rated construction – Designed for repeated loading cycles
Modified UNJ threads – Improves fatigue performance and thread durability
Heavy-duty steel construction – Built for rugged industrial applications
Wide size range – Available for multiple load capacities and take-up lengths
ASME compliant design – Meets recognized rigging and lifting performance standards
Industrial-grade reliability – Engineered for demanding lifting and tensioning environments

Thread Diameter & Take Up (in) Stock No. Working Load Limit (lb) Weight Each (lb) Jaw Pin Diameter (in) Jaw Opening (in) Jaw End Length - Closed (in) Jaw Width (in) Pin-to-Pin Length - Open (in) Pin-to-Pin Length - Closed (in) Overall Length - Open (in) Overall Length - Closed (in) Body Length (in) Replacement Pin Kit Stock No.
* 5/16 x 4-1/2 1032518 800 0.56 0.25 0.50 2.02 0.87 13.07 8.57 14.12 9.62 4.58 1089654
* 3/8 x 6 1032536 1,200 0.85 0.31 0.53 2.11 0.85 16.25 10.25 17.50 11.50 6.10 1089672
1/2 x 6 1032554 2,200 1.82 0.37 0.64 3.22 1.07 18.65 12.65 20.14 14.14 6.03 1089690
1/2 x 9 1032572 2,200 2.29 0.37 0.64 3.20 1.07 24.94 15.94 26.43 17.43 9.36 1089690
1/2 x 12 1032590 2,200 2.71 0.37 0.64 3.20 1.07 30.94 18.94 32.43 20.43 12.36 1089690
5/8 x 6 1032616 3,500 3.21 0.50 0.79 3.90 1.32 19.74 13.74 21.82 15.82 6.03 1089716
5/8 x 9 1032634 3,500 3.95 0.50 0.79 3.89 1.32 26.08 17.08 28.16 19.16 9.39 1089716
5/8 x 12 1032652 3,500 4.58 0.50 0.79 3.89 1.32 32.08 20.08 34.16 22.16 12.39 1089716
3/4 x 6 1032670 5,200 4.80 0.63 0.97 4.71 1.52 21.09 15.09 23.68 17.68 6.13 1097770
3/4 x 9 1032698 5,200 5.85 0.63 0.97 4.68 1.52 27.49 18.49 30.08 21.08 9.59 1097770
3/4 x 12 1032714 5,200 6.72 0.63 0.97 4.68 1.52 33.49 21.49 36.08 24.08 12.59 1097770
3/4 x 18 1032732 5,200 8.45 0.63 0.97 4.71 1.52 45.49 27.49 48.08 30.08 18.53 1097770
7/8 x 12 1032750 7,200 9.37 0.75 1.16 5.50 1.77 34.65 22.65 37.62 25.62 12.16 1097789
7/8 x 18 1032778 7,200 11.8 0.75 1.16 5.50 1.77 47.12 29.12 50.09 32.09 18.63 1097789
1 x 6 1032796 10,000 10.4 0.88 1.34 6.09 2.05 23.82 17.82 27.18 21.18 6.18 1097761
1 x 12 1032812 10,000 13.8 0.88 1.34 6.09 2.05 35.82 23.82 39.18 27.18 12.18 1097761
1 x 18 1032830 10,000 17.1 0.88 1.34 6.09 2.05 47.82 29.82 51.18 33.18 18.18 1097761
1 x 24 1032858 10,000 21.0 0.88 1.34 6.06 2.05 60.42 36.42 63.78 39.78 24.84 1097761
1-1/4 x 12 1032876 15,200 21.9 1.13 1.84 8.09 2.82 39.37 27.37 43.58 31.58 12.06 1097798
1-1/4 x 18 1032894 15,200 25.9 1.13 1.84 8.09 2.82 51.37 33.37 55.58 37.58 18.06 1097798
1-1/4 x 24 1032910 15,200 29.8 1.13 1.84 8.09 2.82 63.93 39.93 68.14 44.14 24.62 1097798
1-1/2 x 12 1032938 21,400 32.6 1.38 2.06 8.93 2.81 40.76 28.76 45.68 33.68 12.32 1097805
1-1/2 x 18 1032956 21,400 38.0 1.38 2.06 8.93 2.81 52.76 34.76 57.68 39.68 18.32 1097805
1-1/2 x 24 1032974 21,400 43.5 1.38 2.06 8.93 2.81 65.38 41.38 70.30 46.30 24.94 1097805
1-3/4 x 18 1033018 28,000 53.5 1.63 2.60 9.36 3.35 53.35 35.35 59.16 41.16 18.37 1097814
1-3/4 x 24 1033036 28,000 61.1 1.63 2.60 9.36 3.35 65.35 41.35 71.16 47.16 24.37 1097814
2 x 24 1033054 37,000 96.3 2.00 2.62 11.80 3.74 69.64 45.64 76.72 52.72 24.48 1097823
2-1/2 x 24 1033072 60,000 167 2.25 3.06 13.26 4.44 72.97 48.97 82.18 58.18 24.60 1097832
2-3/4 x 24 1033090 75,000 199 2.75 3.69 14.92 4.19 74.75 50.75 85.50 61.50 24.65 1087674

Series: HG-228 Jaw & Jaw Turnbuckles

Material: End fittings are quenched and tempered or normalized; turnbuckle bodies are heat-treated by normalizing.

Finish: Hot-dip galvanized steel unless otherwise indicated.

Jaw Hardware: Forged jaw ends are fitted with bolts and nuts on 1/4 in through 5/8 in sizes and pins and cotters on 3/4 in through 2-3/4 in sizes.

Threads: End fittings use modified UNJ threads for improved fatigue properties. Turnbuckle bodies use UNC threads.

Design Factor: 5:1.

Proof Load: 2.5 times the Working Load Limit.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Application: Turnbuckles are recommended for straight or in-line pull only.

Compliance: Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load and temperature requirements. Also meets the performance requirements of Federal Specification FF-T-791b, Type 1, Form 1, Class 7 and ASTM F-1145, except for provisions required of the contractor.

*: Products marked with this symbol are mechanically galvanized.
