Crosby

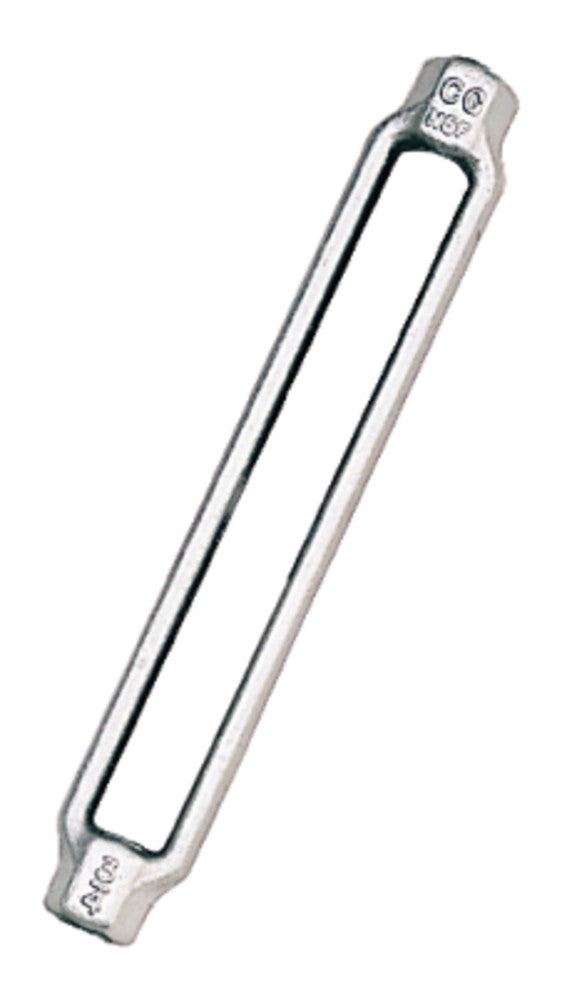

HG-2510 Body

HG-2510 Body

Part #1033955

$58.91 CAD
$58.91 CAD
Promotion Épuisé
Shank Diameter & Take Up
Afficher tous les détails

Description du produit

The Crosby HG-2510 Body is engineered for heavy-duty tensioning and rigging applications requiring dependable load adjustment, fatigue resistance, and long-term durability. Designed for use in turnbuckle assemblies, these body-only components provide reliable tension control for industrial rigging, construction, utility, marine, and overhead lifting applications.
Manufactured from heat-treated steel and hot-dip galvanized for enhanced corrosion resistance, the HG-2510 bodies deliver exceptional strength and dependable performance in demanding environments. Featuring UNC threads and fatigue-rated construction, these turnbuckle bodies are built to meet rigorous industrial and federal specification requirements for lifting and rigging systems.

Material:
Heat-treated steel
Normalized construction
Hot-dip galvanized finish

Specifications:
Turnbuckle body-only design for rigging and tensioning applications
Heat treated by normalizing for enhanced durability
Hot-dip galvanized for corrosion resistance
UNC thread configuration
Fatigue rated construction
Meets performance requirements of Federal Specification FF-T-791b, Type 1, Form 1 – Class 2, except for provisions required by the contractor
Available in multiple shank diameters and take-up lengths
Working Load Limits available from 800 lb through 75,000 lb
Center rib reinforcement included on selected models for additional body support
Suitable for industrial, utility, marine, and construction rigging systems
Designed for use with compatible turnbuckle end fittings and assemblies

Uses:
Turnbuckle assemblies
Industrial rigging systems
Construction tensioning applications
Utility and transmission line work
Marine and offshore rigging
Cable and wire tensioning
Overhead lifting systems
General load adjustment applications

Key Features:
Fatigue rated design – Engineered for repeated tensioning and loading cycles
Hot-dip galvanized finish – Improves corrosion resistance in outdoor environments
Heat treated construction – Enhances durability and long-term performance
Heavy-duty body design – Built for demanding rigging applications
Wide size range – Available in multiple thread diameters and take-up lengths
Federal specification compliance – Meets recognized rigging performance standards
Center rib reinforcement – Provides additional structural support on select models
Industrial-grade durability – Designed for rugged lifting and tensioning environments

Shank Diameter & Take-Up (in) Stock No. Working Load Limit (lb) Weight Each (lb) Overall Body Length (in) Center Body Length (in) End Section Length (in) Overall Body Height (in) Body Thickness (in) Overall Body Width (in) Center Opening Height (in) Side Bar Thickness (in)
* 5/16 x 4-1/2 1033919 800 0.22 5.59 4.58 0.51 0.82 0.38 0.56 0.44 0.19
* 3/8 x 6 1033937 1,200 0.29 7.29 6.10 0.60 0.88 0.38 0.63 0.50 0.19
1/2 x 6 1033955 2,200 0.70 7.70 6.03 0.84 1.19 0.68 0.81 0.63 0.28
† 1/2 x 9 1033973 2,200 1.03 11.03 9.36 0.84 1.19 0.68 0.81 0.63 0.28
† 1/2 x 12 1033991 2,200 1.27 14.03 12.36 0.84 1.19 0.68 0.81 0.63 0.28
5/8 x 6 1034017 3,500 1.11 8.02 6.03 1.00 1.43 0.83 1.00 0.75 0.34
† 5/8 x 9 1034035 3,500 1.59 11.38 9.39 1.00 1.43 0.83 1.00 0.75 0.34
† 5/8 x 12 1034053 3,500 1.96 14.38 12.39 1.00 1.43 0.83 1.00 0.75 0.34
3/4 x 6 1034071 5,200 1.50 8.26 6.13 1.07 1.74 0.94 1.13 0.94 0.40
† 3/4 x 9 1034099 5,200 2.17 11.72 9.59 1.07 1.74 0.94 1.13 0.94 0.40
† 3/4 x 12 1034115 5,200 2.66 14.72 12.59 1.07 1.74 0.94 1.13 0.94 0.40
† 3/4 x 18 1034133 5,200 3.63 20.66 18.53 1.07 1.74 0.94 1.13 0.94 0.40
7/8 x 12 1034179 7,200 3.61 14.62 12.16 1.23 2.00 1.13 1.31 1.06 0.47
† 7/8 x 18 1034197 7,200 5.27 21.09 18.63 1.23 2.00 1.13 1.31 1.06 0.47
1 x 6 1034213 10,000 3.32 9.00 6.18 1.41 2.45 1.25 1.50 1.25 0.60
1 x 12 1034231 10,000 5.34 15.00 12.18 1.41 2.45 1.25 1.50 1.25 0.60
† 1 x 18 1034259 10,000 7.35 21.00 18.18 1.41 2.45 1.25 1.50 1.25 0.60
† 1 x 24 1034277 10,000 9.85 27.66 24.84 1.41 2.45 1.25 1.50 1.25 0.60
1-1/4 x 12 1034339 15,200 5.72 15.40 12.06 1.67 2.62 1.25 1.88 1.50 0.56
1-1/4 x 18 1034357 15,200 7.58 21.40 18.06 1.67 2.62 1.25 1.88 1.50 0.56
† 1-1/4 x 24 1034375 15,200 9.45 27.96 24.62 1.67 2.62 1.25 1.88 1.50 0.56
1-1/2 x 12 1034437 21,400 8.01 15.82 12.32 1.75 2.99 1.50 2.25 1.75 0.62
1-1/2 x 18 1034455 21,400 10.4 21.82 18.32 1.75 2.99 1.50 2.25 1.75 0.62
† 1-1/2 x 24 1034473 21,400 12.9 28.45 24.94 1.75 2.99 1.50 2.25 1.75 0.62
1-3/4 x 18 1034552 28,000 15.7 22.44 18.37 2.04 3.62 1.75 2.62 2.12 0.75
1-3/4 x 24 1034570 28,000 19.2 28.44 24.37 2.04 3.62 1.75 2.62 2.12 0.75
2 x 24 1034632 37,000 25.8 29.13 24.48 2.33 4.14 2.00 3.00 2.38 0.88
2-1/2 x 24 1034678 60,000 55.9 31.66 24.60 3.53 5.62 2.75 3.88 3.12 1.25
2-3/4 x 24 1034696 75,000 54.0 31.66 24.65 3.51 5.62 2.75 3.88 4.48 1.25

Series: Crosby HG-2510 Turnbuckle Body Only.

Heat Treatment: Heat treated by normalizing.

Finish: Hot-dip galvanized unless marked with an asterisk (*).

Threads: UNC body threads.

Fatigue Rating: Fatigue rated.

Compliance: Meets the performance requirements of Federal Specification FF-T-791b, Type 1, Form 1, Class 2, except for provisions required by the contractor.

*: Mechanically galvanized.

†: Contains center rib for additional body support.
