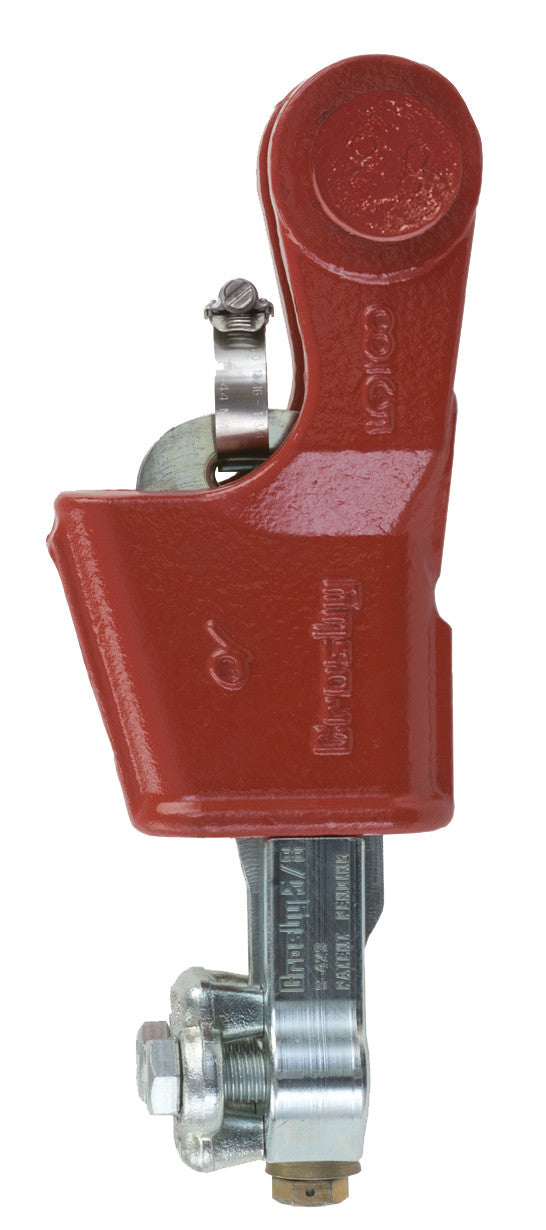

Crosby S-423T Wedge Sockets - Size 3/4"

Product Description

Product Description:
The Crosby S-423T Super Terminator™ Wedge Socket is designed for secure and efficient wire rope terminations in lifting and rigging applications. Engineered for use with high-performance and rotation-resistant wire ropes, the Super Terminator™ design improves rope seating while eliminating the “first load” requirement commonly associated with conventional wedge socket terminations.
Built for demanding industrial environments, the S-423T provides reliable termination efficiency, improved wire rope retention, and enhanced safety for crane, lifting, and offshore applications.

Material:
Cast steel socket body
Zinc-finished wedge and accessories
Corrosion-resistant hardware

Specifications:
Wedge socket termination for wire rope applications
Designed for use with Crosby S-421T Terminator™ socket bodies only
Minimum efficiency rating of 80% on most high-performance rotation-resistant wire ropes
Assembly includes socket, wedge, pin, wire rope clip, tensioner bolts, and secondary retention wire
Available with round pin and cotter pin or bolt/nut/cotter pin configurations
Cast steel basket individually magnetic particle inspected
Designed for use with closed swage and spelter sockets
Meets EN 13411-6 requirements
Meets or exceeds ASME B30.26 requirements
Available with API-2C certification upon request
Meets Federal Specification RR-S-550F Type C requirements

Uses:
Wire rope terminations
Crane and lifting applications
Offshore and marine rigging
High-performance wire rope assemblies
Industrial and construction rigging systems

Key Features:
Super Terminator™ design – Improves rope seating and retention
High termination efficiency – Optimized for high-performance wire rope
Enhanced safety – Eliminates conventional “first load” requirement
Secure wedge retention – Reduces risk of wedge loss or punch out
Durable construction – Cast steel basket with corrosion-resistant components
Versatile application – Compatible with multiple rigging and lifting systems
