Crosby

S-421T Wedge Socket

S-421T Wedge Socket

Part #1035555

$37.17 CAD
$37.17 CAD
Promotion Épuisé
Wire Rope Diameter
Afficher tous les détails

Description du produit

Crosby S-421T Terminator® wedge sockets are high-performance wire rope termination components designed for strength, safety, and efficiency in lifting and rigging applications. These sockets provide a secure method of attaching wire rope, allowing for quick installation and adjustment in the field.

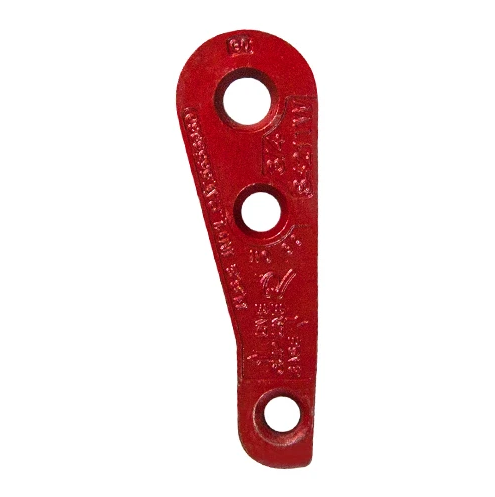

Featuring the patented Terminator® wedge design, the system secures the dead end of the wire rope and helps eliminate potential fatigue issues. The design ensures a reliable connection while allowing the rope to remain undeformed and reusable.

Material:
Body: Cast steel
Individually magnetic particle inspected for quality assurance

Specifications:
Provides approximately 80% termination efficiency based on wire rope strength
Meets or exceeds ASME B30.26, RR-S-550F Type C, and EN 13411-6 requirements
Incorporates QUIC-CHECK® “Go/No-Go” feature for proper rope sizing
Designed for wire rope sizes from 3/8" to 1-1/4"
Eliminates need for extra rope and simplifies installation
Allows reuse of rope as tail remains undeformed

Uses:
Wire rope termination in lifting systems
Crane and hoisting applications
Rigging setups requiring adjustable connections
Applications needing frequent rope replacement

Key Features:
Terminator® wedge design – Secures rope tail and reduces fatigue risk
QUIC-CHECK® system – Ensures proper rope size selection
High efficiency – Up to 80% of wire rope strength retained
Durable construction – Cast steel body with inspection for reliability
Reusable rope – Tail remains undeformed for reuse
Easy installation – Designed for quick field assembly

Wire Rope Diameter (in) Wire Rope Diameter (mm) Stock No. Weight Each (lb) Wedge Only† Weight Each (lb) Standard Bolt, Nut & Cotter Assy Weight Each (lb)
3/8 9-10 1035000 3.30 1035555 0.50 2038971 0.38
1/2 11-13 1035009 6.10 1035564 1.05 2038972 0.69
5/8 14-16 1035018 10.5 1035573 1.79 2038974 1.15
3/4 18-19 1035027 16.4 1035582 2.60 2038976 1.91
7/8 20-22 1035036 24.8 1035591 4.00 2038978 3.23
1 24-26 1035045 35.5 1035600 5.37 2038980 5.40
1-1/8 28 1035054 48.8 1035609 7.30 2038982 7.50
1-1/4 30-32 1035063 71.5 1035618 10.60 2038984 10.34

Series: S-421T Wedge Sockets

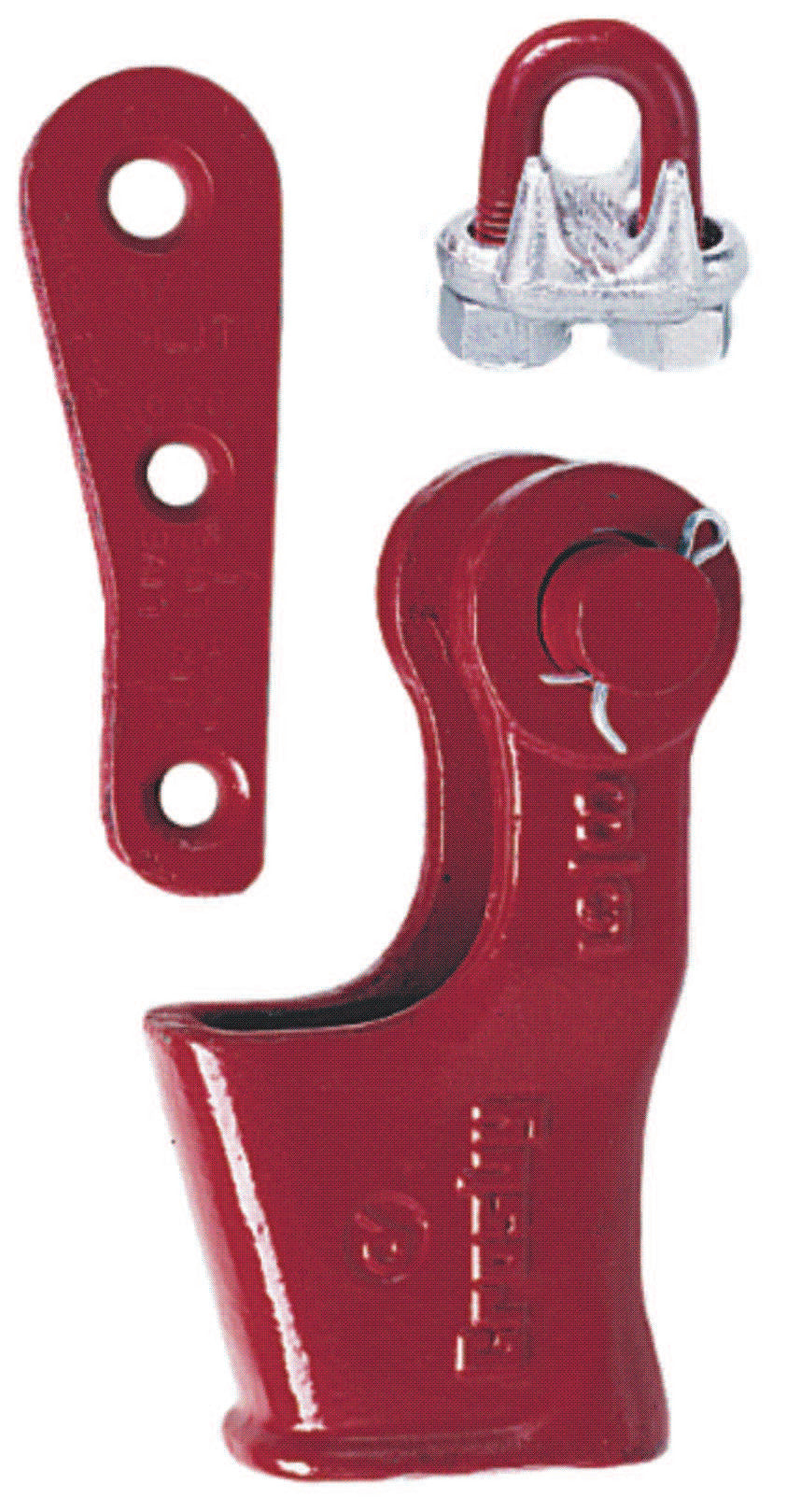

Assembly: Includes socket, wedge, pin and wire rope clip.

* Nominal Note: For intermediate wire rope sizes, use the next larger size socket.
