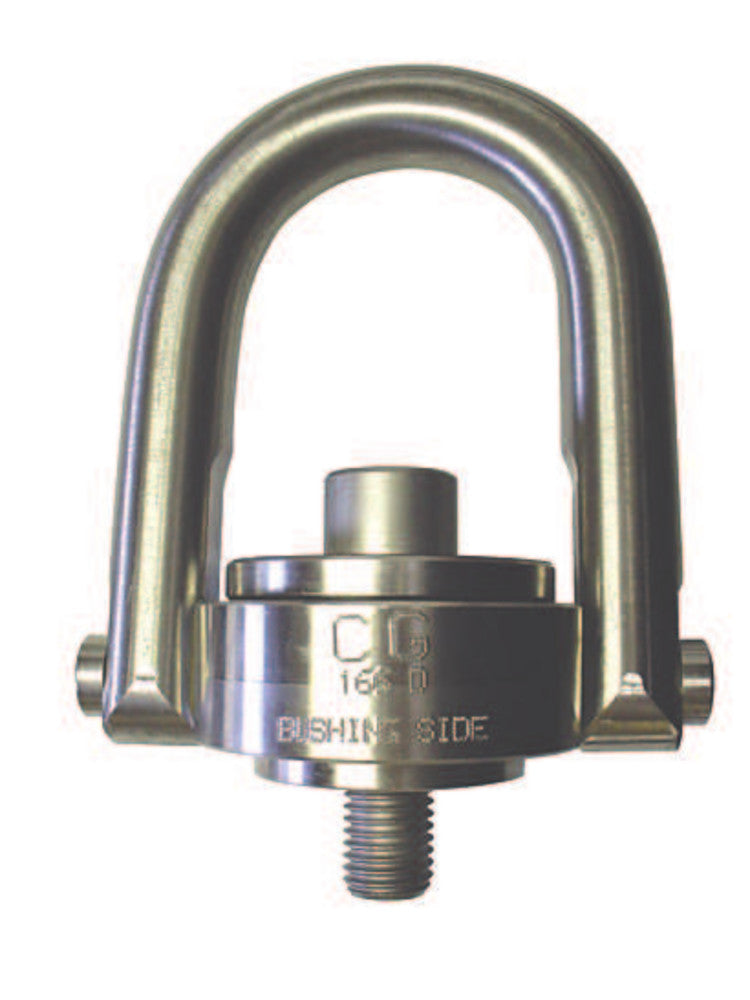

Crosby SS-125 Thread Swivel Hoist Rings – 1/2 - 13 x 2.5

Description du produit

Product Description:
Crosby SS-125 UNC Thread Swivel Hoist Rings are designed to provide a strong, adjustable lifting point for overhead lifting applications, allowing loads to rotate and align naturally during lifting. These hoist rings feature a 360° swivel and 180° pivot action, reducing side loading and improving safety compared to traditional eye bolts.
Constructed from high-quality 316 stainless steel, the SS-125 series is ideal for corrosive, marine, washdown, and food-grade environments, where durability and resistance to rust are critical.

Material:
Body: 316 stainless steel
Bolt: 316 stainless steel socket head cap screw (ASTM F837)
Bolt retainers: 15-7 PH stainless steel (magnetic)

Specifications:
UNC (imperial) threaded design for North American applications
360° swivel and 180° pivot for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 400 lb to 50,000 lb depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Washer is color-coded red for UNC thread identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling, dies, and mold handling
Marine and offshore environments
Food processing and washdown applications
Industrial overhead lifting

Key Features:
Swivel design – Rotates and pivots to align with load direction
Corrosion resistant – 316 stainless steel construction
Full-rated lifting – Maintains capacity at 90° angle
High durability – Designed for repeated lifting cycles
Proof tested – Certified for overhead lifting
Traceability – PIC marking ensures full material tracking
