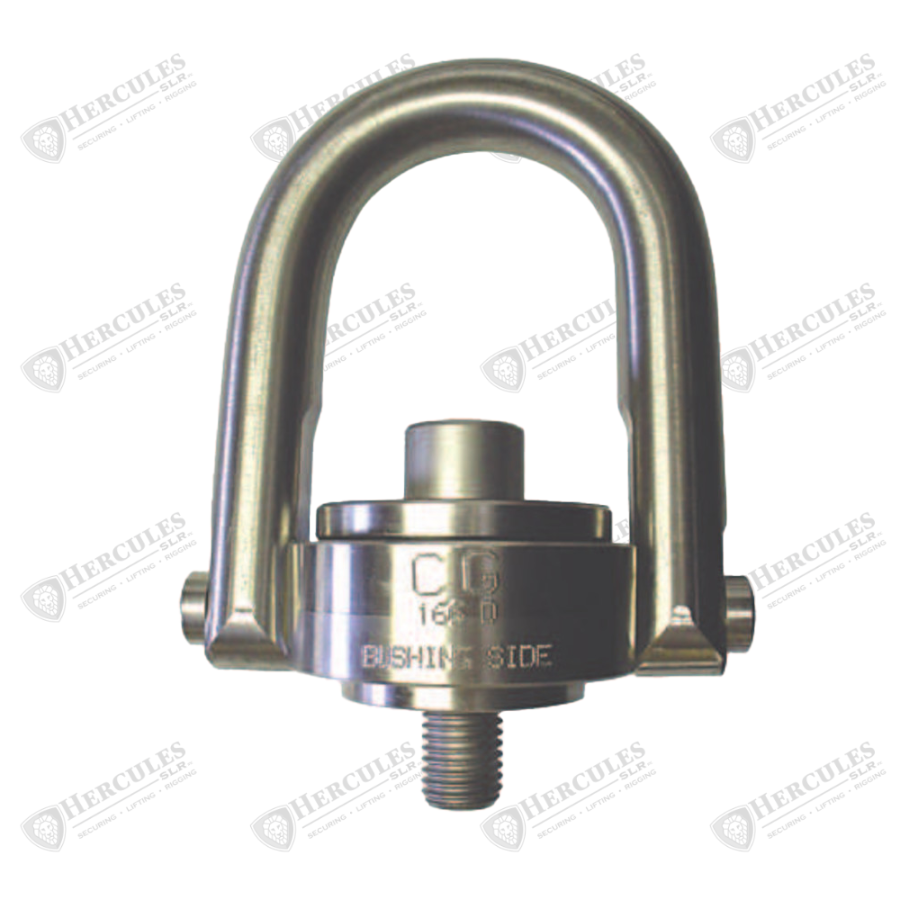

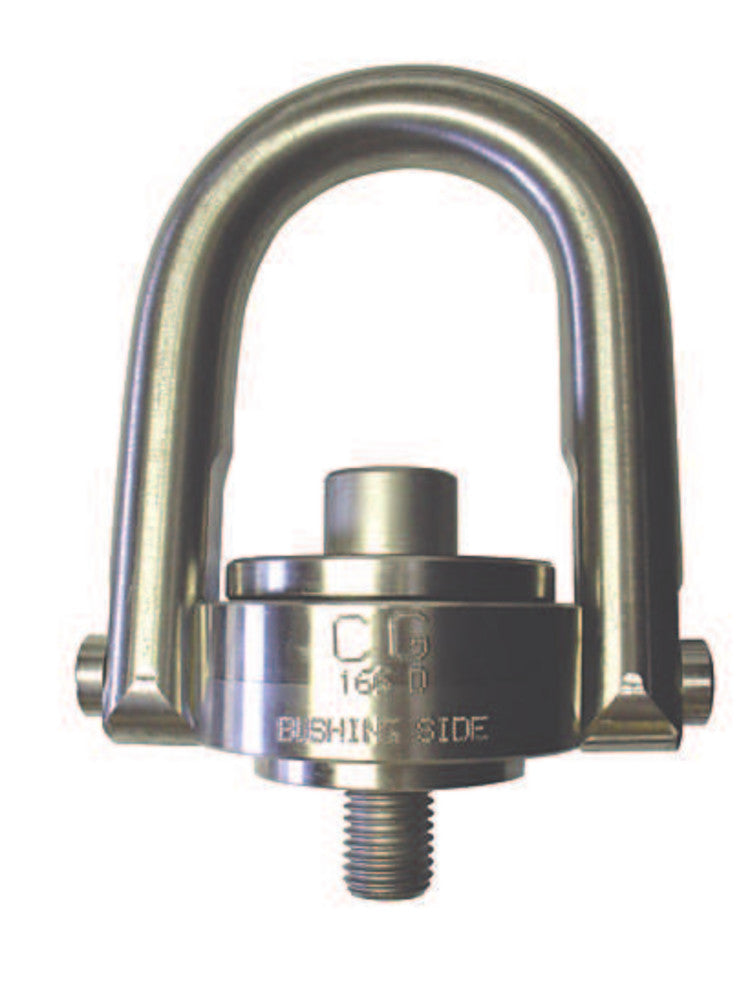

Name: SS-125 Thread Swivel Hoist Rings
Brand: Crosby
SKU: 1065000
Price: 992.35 CAD
Availability: OutOfStock

Description du produit

Crosby SS-125 UNC Thread Swivel Hoist Rings are designed to provide a strong, adjustable lifting point for overhead lifting applications, allowing loads to rotate and align naturally during lifting. These hoist rings feature a 360° swivel and 180° pivot action, reducing side loading and improving safety compared to traditional eye bolts.
Constructed from high-quality 316 stainless steel, the SS-125 series is ideal for corrosive, marine, washdown, and food-grade environments, where durability and resistance to rust are critical.

Material:
Body: 316 stainless steel
Bolt: 316 stainless steel socket head cap screw (ASTM F837)
Bolt retainers: 15-7 PH stainless steel (magnetic)

Specifications:
UNC (imperial) threaded design for North American applications
360° swivel and 180° pivot for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 400 lb to 50,000 lb depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Washer is color-coded red for UNC thread identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling, dies, and mold handling
Marine and offshore environments
Food processing and washdown applications
Industrial overhead lifting

Key Features:
Swivel design – Rotates and pivots to align with load direction
Corrosion resistant – 316 stainless steel construction
Full-rated lifting – Maintains capacity at 90° angle
High durability – Designed for repeated lifting cycles
Proof tested – Certified for overhead lifting
Traceability – PIC marking ensures full material tracking

Frame Size No.	Stock No.	Working Load Limit (lb)	Torque (ft-lb)	Bolt Size	Effective Thread Projection Length (in)	Overall Height (in)	Base Width (in)	Radius (in)	Bail Bar Diameter (in)	Overall Width (in)	Bail Opening Height (in)	Weight Each (lb)
3	1065064	5,000	115	1 - 8 x 3.0	1.29	6.52	2.20	1.40	0.94	5.14	2.81	7.5
3	1065068	5,000	115	1 - 8 x 3.25	1.54	6.52	2.20	1.40	0.94	5.14	2.81	7.5
3	1065072	5,000	115	1 - 8 x 4.0	2.29	6.52	2.20	1.40	0.94	5.14	2.81	7.5
2	1065016	1,250	14	1/2 - 13 x 2.0	0.78	4.78	1.45	0.88	0.69	3.52	2.31	2.6
2	1065020	1,250	14	1/2 - 13 x 2.25	1.03	4.78	1.45	0.88	0.69	3.52	2.31	2.6
2	1065024	1,250	14	1/2 - 13 x 2.5	1.28	4.78	1.45	0.88	0.69	3.52	2.31	2.6
5	1065084	12,000	400	1-1/2 - 6 x 5.5	2.70	12.47	4.87	2.25	1.75	8.55	6.41	34.0
4	1065080	7,500	235	1-1/4 - 7 x 4.0	1.89	8.73	3.19	1.75	1.25	6.50	4.12	14.0
5	1065088	15,000	550	2 - 4.5 x 5.75	2.96	12.47	4.87	2.25	1.75	8.55	5.91	36.0
6	1065092	25,000	1,050	2-1/2 - 4 x 8.0	4.00	16.87	6.52	3.00	2.25	11.67	8.03	88.0
6	1065096	25,000	1,050	2-1/2 - 8 x 8.0	4.00	16.87	6.52	3.00	2.25	11.67	8.03	88.0
2	1065040	2,500	50	3/4 - 10 x 2.25	1.03	4.78	1.45	0.88	0.69	3.52	2.06	3.0
3	1065048	3,500	50	3/4 - 10 x 2.75	1.04	6.52	2.20	1.40	0.94	5.14	3.06	7.0
2	1065044	2,500	50	3/4 - 10 x 2.75	1.53	4.78	1.45	0.88	0.69	3.52	2.06	3.0
3	1065052	3,500	50	3/4 - 10 x 3.25	1.54	6.52	2.20	1.40	0.94	5.14	3.06	7.0
1	1065008	500	6	3/8 - 16 x 1.25	0.54	2.67	0.85	0.43	0.34	1.84	1.27	0.30
1	1065000	400	3.5	5/16 - 18 x 1.0	0.29	2.67	0.85	0.43	0.34	1.84	1.27	0.30
1	1065004	400	3.5	5/16 - 18 x 1.25	0.54	2.67	0.85	0.43	0.34	1.84	1.27	0.30
2	1065028	2,000	30	5/8 - 11 x 2.0	0.78	4.78	1.45	0.88	0.69	3.52	2.18	2.6
2	1065032	2,000	30	5/8 - 11 x 2.25	1.03	4.78	1.45	0.88	0.69	3.52	2.18	2.6
2	1065036	2,000	30	5/8 - 11 x 2.5	1.28	4.78	1.45	0.88	0.69	3.52	2.18	2.6
3	1065056	4,000	80	7/8 - 9 x 2.75	1.04	6.52	2.20	1.40	0.94	5.14	2.93	7.0
3	1065060	4,000	80	7/8 - 9 x 3.0	1.29	6.52	2.20	1.40	0.94	5.14	2.93	7.0

Series: SS-125UNC Stainless Steel Swivel Hoist Rings

Material: All components are 316 stainless steel except the bolt retainers, which are manufactured from 15-7 PH (UNS 15700) magnetic stainless steel.

Thread Type: All thread sizes shown are UNC. The identification washer is color coded red for UNC threads.

Bolt: 316 stainless steel socket head cap screw conforming to ASTM F837 Group 1 (316).

Angular Loading: Rated at 100% of the Working Load Limit at a 90° load angle.

Design Factor: 5:1.

Proof Test: Individually proof tested to 2 times the Working Load Limit with certification.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Traceability: Each lifting point is marked with a Product Identification Code (PIC), Working Load Limit, and Crosby or “CG” identification for material traceability.

Specification	Value
Material Specification	Bolt: ASTM F837 Group 1, 316 Stainless Steel
Thread Diameter	5/16 in
Installation Torque	3.5 ft-lb
Pivot Angle	180 deg
Swivel Angle	360 deg
Thread Size	5/16-18
Load Capacity	400 lb
Specifications	Bolt specification A: 5/16 - 18 x 1.0 in; effective thread projection B: 0.29 in; 5:1 design factor; proof tested to 2 times WLL; 100% rating at 90 degrees; fatigue rated to 20,000 cycles at 1.5 times WLL
Series	SS-125
Weight	0.30 lb
Type	Stainless Steel Swivel Hoist Ring
Material	316 Stainless Steel; Bolt Retainer: 15-7 PH Stainless Steel
Dimensions	Drawing dimensions (in): B = 0.29; C = 2.67; D = 0.85; E = 0.43; F = 0.34; G = 1.84; H = 1.27
