Crosby

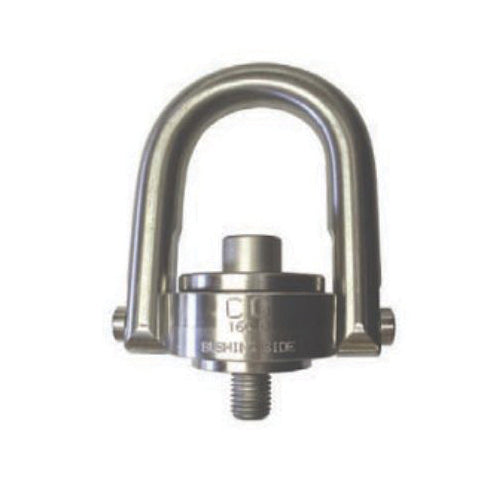

SS-125M Metric Thread Swivel Hoist Rings

SS-125M Metric Thread Swivel Hoist Rings

Part #1065223

$2,258.58 CAD
$2,258.58 CAD
Promotion Épuisé
Bolt Size
Afficher tous les détails

Description du produit

Crosby SS-125M Swivel Hoist Rings are designed to provide a secure, adjustable lifting point for machinery, tooling, and fabricated components, offering full load alignment through rotation and pivoting. These lifting points are ideal for applications requiring safe lifting in multiple directions without side loading stress.
Constructed from high-quality stainless steel, the SS-125M series is specifically suited for corrosive, washdown, marine, and food-grade environments, where durability and resistance to rust are critical.

Material:
Body: 316 stainless steel
Bolt retainers: 15-7 PH stainless steel (magnetic)
Bolt: 316 stainless steel socket head cap screw (ASTM F837M)

Specifications:
Designed for metric threaded lifting applications (M-series threads)
360° swivel and 180° pivot action for full load alignment
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 200 kg to 22,300 kg (varies by size)
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2× WLL with certification
Fatigue rated to 20,000 cycles at 1.5× WLL
Washer is color-coded (silver) for metric identification
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling, dies, and molds handling
Marine and offshore applications
Food processing and washdown environments
Industrial lifting points requiring corrosion resistance

Key Features:
Swivel design – Rotates 360° and pivots to align with load direction
Corrosion resistant – 316 stainless steel construction
Full-rated lifting – Maintains capacity at 90° loading angles
High durability – Designed for repeated lifting cycles
Proof tested – Certified for safe overhead lifting
Traceability – PIC code ensures material tracking

*: For products marked with this symbol, please refer to the chart below for the correct specifications.

Frame Size No. Stock No. Working Load Limit (kg) Torque (Nm) Bolt Size Effective Thread Projection Length (mm) Overall Height (mm) Base Width (mm) Radius (mm) Bail Bar Diameter (mm) Overall Width (mm) Bail Opening Height (mm) Weight Each (kg)
1 1065203 200 4 M8 x 1.25 13 68 21.6 11 8.5 47 32 0.17
1 1065207 250 8 M10 x 1.50 18 68 21.6 11 8.5 47 30 0.17
2 1065211 525 18 M12 x 1.75 19 121 37 22 17.5 89 60 1.1
2 1065215 950 40 M16 x 2.00 29 121 37 22 17.5 89 56 1.1
2 1065219 1,075 68 M20 x 2.50 34 121 37 22 17.5 89 52 1.2
3 1065223 1,500 68 M20 x 2.50* 32 166 56 36 25 131 78 3.0
3 1065227 2,100 108 M24 x 3.00 37 166 56 36 25 131 74 3.1
3 1065231 2,100 108 M30 x 3.50 58 206 56 36 25 131 108 3.1
4 1065235 3,500 318 M30 x 3.50* 42 222 81 45 31 165 106 6.3
4 1065239 3,500 318 M30 x 3.50** 62 222 81 45 31 165 106 6.4
5 1065243 5,500 542 M36 x 4.00 64 317 124 57 43 217 166 15.5
5 1065247 6,250 542 M42 x 4.50 82 317 124 57 43 217 160 16.0
5 1065251 6,750 542 M48 x 5.00 82 317 124 57 43 217 154 16.8
6 1065255 11,150 1,423 M64 x 6.00 101 428 165 76 56 296 204 39.0
7 1065259 15,750 2,915 M72 x 6.00 132 495 206 95 69 359 220 74.0
8 1065263 22,300 3,459 M90 x 6.00 177 561 216 102 83 404 235 118.0

Series: SS-125M Metric Thread Stainless Steel Swivel Hoist Rings

Material: All components are 316 stainless steel except the bolt retainers, which are manufactured from 15-7 PH (UNS 15700) magnetic stainless steel.

Thread Type: Metric threads. The identification washer is color-coded silver for metric thread models.

Bolt: 316 stainless steel socket head cap screw conforming to ASTM F837M (316).

Angular Loading: Rated at 100% of the Working Load Limit at a 90° load angle.

Design Factor: 5:1.

Proof Test: Individually proof tested to 2 times the Working Load Limit with certification.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Traceability: Each lifting point has a Product Identification Code (PIC) for material traceability and is marked with its Working Load Limit and Crosby or “CG” identification.

Installation: Use the specified installation torque shown for the applicable stock number and bolt size.
