RING HST PVT 20000LB 360DEG 1-1/4IN

Description du produit

Product Description:

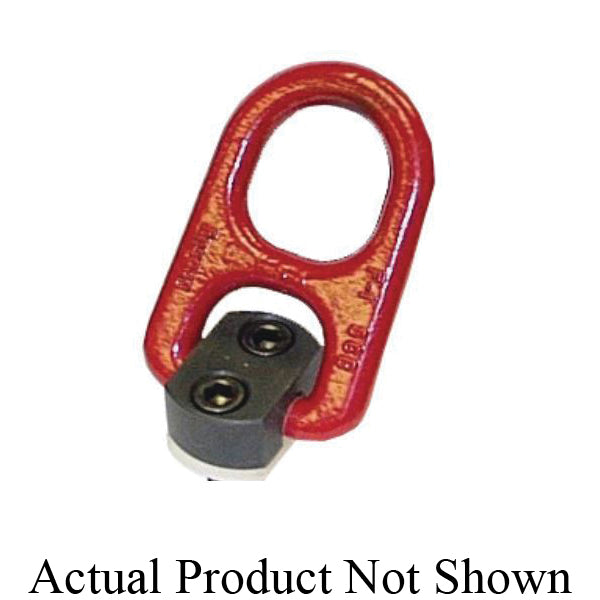

Crosby HR-100 UNC Pivot Hoist Rings are designed to provide a compact and durable lifting point for overhead lifting applications where rotation is not required but pivoting is essential.
These hoist rings feature a 180° pivot action, allowing the bail to align with the load direction while maintaining strength and reducing stress during lifting. They are ideal for applications where space is limited and a low-profile lifting solution is needed.

Material:
Body: Forged alloy steel (quenched and tempered)
Bail: Forged for enhanced durability
Bolt: High-strength alloy steel (included with assembly)

Specifications:
UNC (imperial) threaded design
180° pivot action at full Working Load Limit
Working Load Limit: approx. 2,000 lb and higher depending on size
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL
Larger bail opening than standard hoist rings for easier rigging
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification

Uses:
Machinery and equipment lifting
Tooling and fixture handling
Applications requiring pivoting (not swiveling) lifting points
Confined spaces where a compact lifting solution is needed

Key Features:
Pivot design – 180° movement for load alignment
Compact profile – Ideal for tight spaces
High strength – Forged alloy steel construction
Proof tested – Certified for overhead lifting
Durable bail – Larger opening for easier connections
Traceability – PIC marking for identification
