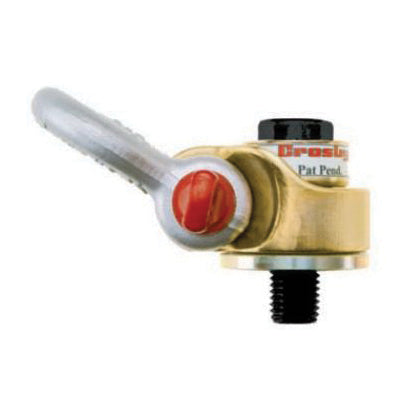

Name: HR-1200M Metric Side Pull Hoist Rings
Brand: Crosby
SKU: 1067803
Price: 437.05 CAD
Availability: OutOfStock

Description du produit

Crosby HR-1200M Metric Side Pull Hoist Rings are designed for safe, multi-directional lifting, specifically engineered to handle side loading applications. Unlike standard lifting points, these hoist rings allow the load to pivot and align during lifting, reducing stress and improving safety in angled lifting situations.
With a 360° swivel and 90° pivot, the HR-1200M ensures proper load orientation while maintaining full strength under side pull conditions, making it ideal for fabrication, machinery handling, and industrial lifting environments.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: High-strength alloy socket head cap screw (metric)
Finish: Yellow chromate coating for corrosion resistance

Specifications:
Metric threaded design (M-series)
360° swivel and 90° pivot for side pull lifting
Rated at 100% Working Load Limit at 90° angle
Working Load Limit range: approx. 300 kg to 13,000 kg
5:1 design factor (ultimate strength = 5× WLL)
Individually proof tested to 2–2.5× WLL with certification
Fatigue rated for 20,000 cycles at 1.5× WLL
Each unit marked with:
Product Identification Code (PIC)
Working Load Limit
Manufacturer identification
Available in multiple bolt sizes and lengths (M8 to M48)

Uses:
Side pull lifting applications
Machinery and equipment handling
Fabrication and structural lifting
Industrial environments with angled or off-center lifting requirements

Key Features:
Side pull design – Engineered for angular lifting
Swivel functionality – 360° rotation with 90° pivot
High strength – Alloy steel construction
Corrosion resistant – Protective coating for durability
Proof tested – Certified for overhead lifting
Traceability – PIC marking for full identification

Weight Each (kg)	Working Load Limit (kg)	Stock No.	Hoist Ring Bolt Torque (Nm)	Bolt Size A	Effective Thread Projection B (mm)	Dimension C (mm)	Dimension D (mm)	Dimension E (mm)	Dimension F (mm)	Diameter G (mm)	Dimension H (mm)	Dimension I (mm)	Recommended Shackle Nominal Size (in)	Recommended Shackle WLL (t)	S-281 Web Shackle Web Size (in)	Replacement Bolt Kit Stock No.
0.18	300	1067803	10	M8x1.25x40	16.9	49.0	18.3	25.4	39.6	20.3	21.6	36.3	1/2, 5/8	2, 3-1/4	2	1015875
0.18	400	1067807	16	M10x1.50x40	16.9	49.0	18.3	25.4	39.6	20.3	21.6	36.3	1/2, 5/8	2, 3-1/4	2	1015884
0.63	1,000	1067811	38	M12x1.75x50	17.2	75.4	24.6	50.8	54.1	23.6	27.2	45.5	5/8, 3/4	3-1/4, 4-3/4	2, 1-1/2	1015897
0.68	1,400	1067815	81	M16x2.0x60	27.2	75.4	24.6	50.8	54.1	23.6	27.2	45.5	5/8, 3/4	3-1/4, 4-3/4	2, 1-1/2	1015906
2.0	2,250	1067823	136	M20x2.5x75	28.1	110	34.0	76.2	76.2	27.2	34.4	61.5	7/8	6-1/2	2	1015930
2.2	3,500	1067827	312	M24x3.0x80	33.1	110	34.0	76.2	76.2	27.2	34.4	61.5	7/8	6-1/2	2	1015941
4.5	6,250	1067831	637	M30x3.5x120	65.1	142	39.9	95.3	99.3	37.3	48.8	86.9	1, 1-1/8, 1-1/4	8-1/2, 9-1/2, 12	3	1015952
10.4	7,750	1067835	1,005	M36x4.0x150	60.6	186	52.3	121	132	53.6	61.2	109	1-3/8, 1-1/2, 1-3/4	13-1/2, 17, 25	—	—
10.7	10,000	1067839	1,005	M42x4.5x160	70.6	186	52.3	121	132	53.6	61.2	109	1-3/8, 1-1/2, 1-3/4	13-1/2, 17, 25	—	—
11.0	13,000	1067843	1,350	M48x5.0x160	70.6	186	52.3	121	132	53.6	61.2	109	1-3/8, 1-1/2, 1-3/4	13-1/2, 17, 25	—	—

Series: HR-1200M Metric Side Pull Hoist Rings

Design Factor: 5:1.

Specification	Value
Thread Type	Metric
Thread Diameter	8 mm
Installation Torque	10 Nm
Pivot Angle	180 deg
Swivel Angle	360 deg
Thread Size	M8 x 1.25
Load Capacity	300 kg
Suitable For Use With	Crosby shackle sizes: 1/2, 5/8 in (sold separately); replacement bolt kit: 1015875; S-281 web shackle web sizes: 2 in
Specifications	Bolt specification A: M8x1.25x40 mm; effective thread projection B: 16.9 mm; 5:1 design factor; individually proof tested to 2.5 times WLL; full WLL for load angles up to 90 degrees; shackles sold separately
Series	HR-1200M
Weight	0.18 kg
Type	Side Pull Hoist Ring
Finish	Yellow Chromate
Dimensions	Drawing dimensions (mm): B = 16.9; C = 49.0; D = 18.3; E = 25.4; F = 39.6; G = 20.3; H = 21.6; I = 36.3
