Crosby

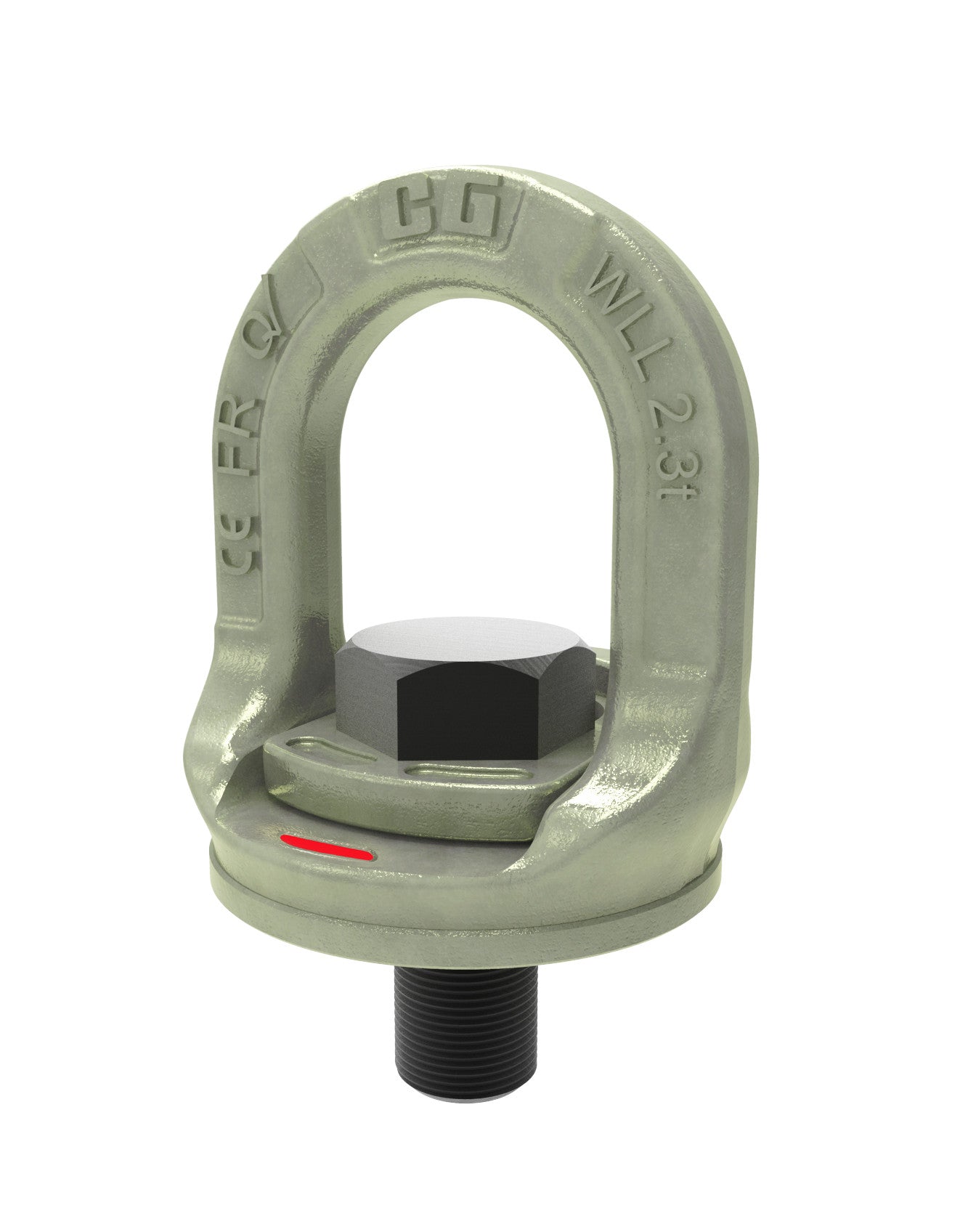

SL-150 Metric Slide-Loc Lifting Point

SL-150 Metric Slide-Loc Lifting Point

Part #1068515

$221.97 CAD
$221.97 CAD
Promotion Épuisé
Bolt Size
Afficher tous les détails

Description du produit

Crosby SL-150M Metric Slide-Loc® Lifting Points are designed to provide a quick, secure, and efficient lifting connection, ideal for applications requiring frequent installation and removal of lifting points.
Featuring a patented Slide-Loc® locking mechanism, these lifting points allow for tool-free installation, significantly reducing setup time while maintaining a secure connection. The lifting bail swivels 360°, ensuring proper alignment with the load and minimizing side loading during lifting operations.

Material:
Body: Alloy steel (quenched and tempered)
Bolt: Metric Grade 10.9 alloy cap screw (ISO 898-1)
Finish: Corrosion-resistant coating

Specifications:
Metric threaded design (M-series)
Available sizes: approx. M10 to M24 thread sizes
Working Load Limit range: approx. 0.5 ton to 3.2 ton (500 kg to 3,200 kg)
360° swivel bail for load alignment
Rated at 100% Working Load Limit at 90° angle
4:1 design factor (ultimate strength = 4× WLL)
Fatigue rated to 20,000 cycles at 1.5× WLL
Individually proof tested for safety
Equipped with QUIC-CHECK® visual indicator to confirm proper engagement before lifting
CE compliant (Machinery Directive 2006/42/EC)

Uses:
Machinery and equipment lifting
Tooling, dies, and mold handling
Applications requiring quick-change lifting points
Industrial environments with frequent rigging adjustments

Key Features:
Slide-Loc® system – Fast, tool-free installation and removal
360° swivel – Aligns automatically with load direction
QUIC-CHECK® indicator – Visual safety confirmation before lifting
Compact design – Ideal for tight or confined spaces
High strength – Forged alloy steel construction
Fatigue rated – Built for repeated lifting cycles

Weight Each (kg) Stock No. Working Load Limit (t)* Bolt Size Base Width (mm) Overall Height (mm) Inside Bail Width (mm) Base Height (mm) Inside Bail Height (mm) Overall Bail Width (mm) Effective Thread Projection Length (mm)
0.14 1068515 0.50 M10 x 1.5 x 25 35.5 53.0 28.0 8.5 27.8 45.0 14.6
0.23 1068524 0.75 M12 x 1.75 x 30 42.5 62.6 33.0 10.5 32.9 54.0 18.3
0.50 1068533 1.50 M16 x 2 x 40 55.0 75.7 37.0 13.2 37.0 63.4 24.5
0.94 1068542 2.30 M20 x 2.5 x 50 68.8 91.1 43.9 16.0 43.6 75.6 31.0
1.60 1068551 3.20 M24 x 3 x 60 82.5 110.0 52.8 19.2 52.8 91.2 37.0

Series: SL-150M Metric Slide-Loc™ Lifting Point

Material: Bail is forged alloy steel, quenched and tempered.

Rotation: Bail swivels 360° for alignment with the direction of loading.

Angular Loading: Rated at 100% of the Working Load Limit at a 90° load angle.

Design Factor: 4:1.

* Ultimate Load: Ultimate Load is 4 times the Working Load Limit.

Fatigue Rating: Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Bolt: Metric models use a Grade 10.9 alloy cap screw conforming to ISO 898-1. Replaceable bolts, including longer bolts, are available.

Slide-Loc™ Mechanism: Unique locking mechanism allows quick attachment to the load surface without tools.

QUIC-CHECK®: Bail incorporates QUIC-CHECK® markings to assist in confirming that the lifting point is properly engaged and ready for lifting.

Compliance: Meets Machinery Directive 2006/42/EC guidelines and is CE marked.
