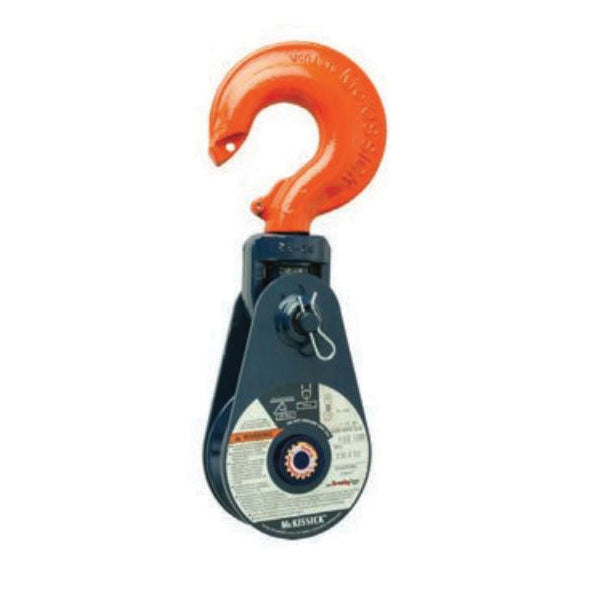

McKissick 418 Light Champion Snatch Block - Wire Rope - 5/8 to 3/4 in - 8 Ton - 10 in

Description du produit

The McKissick 418 Light Champion Snatch Block is a heavy-duty single-sheave block designed for wire rope cable applications requiring reliable load redirection and mechanical advantage in demanding industrial environments. Built around a 10-inch outside diameter sheave with roller bearing support, this block delivers smooth, low-friction rope travel under load, reducing wear on both the rope and the block during extended use. The 418 series is engineered for an 8-ton working load limit and accommodates wire rope cable ranging from 5/8 to 3/4 inch in diameter.

The larger 10-inch sheave diameter provides a more favorable rope bend radius compared to smaller sheave configurations, reducing fatigue and extending the service life of the wire rope under repeated loading cycles. The roller bearing sheave minimizes friction and heat buildup during operation, making this block well suited for high-cycle and sustained-load applications. The snatch block configuration features a side-opening cheek plate that allows the wire rope to be inserted without threading the rope end through the block, significantly reducing rigging time in the field.

This block is well suited for use with wire rope hoists, winches, come-alongs, and rigging systems in construction, marine, oilfield, logging, and general industrial lifting and pulling applications. The 418 Light Champion series is a trusted McKissick product line known for consistent performance across a wide range of load-handling tasks where portability, rope longevity, and dependability are all required.

Material:

Steel (body and cheek plates) Roller bearing sheave

Compatible With:

Wire rope cable, 5/8 in to 3/4 in diameter

Uses:

Load redirection in wire rope rigging systems Mechanical advantage in pulling and lifting applications Winch and hoist line deflection Construction, marine, oilfield, and logging rigging

Key Features:

8 Ton working load limit 10 in sheave outside diameter Roller bearing for low-friction operation Accommodates 5/8 to 3/4 in wire rope cable Side-opening design for fast rope insertion without threading Larger sheave diameter for improved rope bend radius and extended rope life McKissick 418 Light Champion series
