CHAIN TAIL WINCHLINE 1-1/4IN 24IN

Description du produit

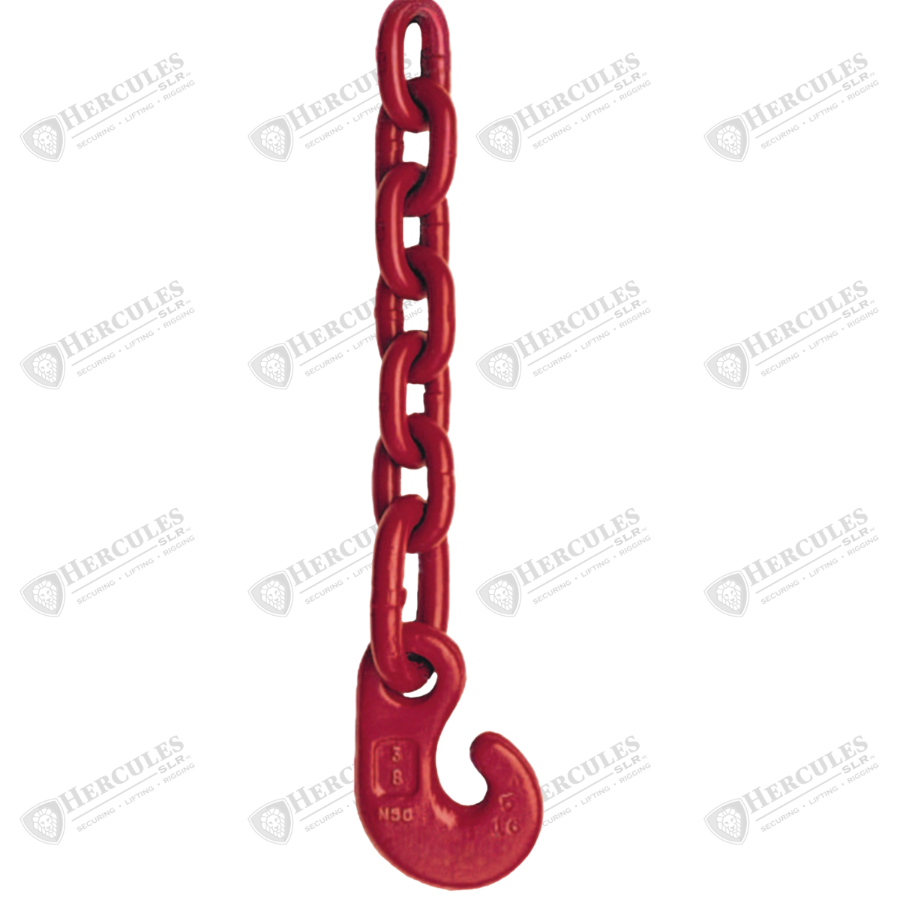

The Lebus L-180 Spectrum 8 Series Winchline Tail Chain is a heavy-duty alloy steel tail chain assembly designed for use in the most demanding super-heavy haul, over-dimensional transport, and industrial load securement applications requiring a rated working load limit of 73,200 lb. The winchline tail chain is the chain section that connects the winch line wire rope or strap to the load securement anchor point — typically a chain hook, load ring, or tie-down point on the trailer or load — bridging the connection between the winch tensioning system and the fixed chain anchor and completing the load securement assembly. The tail chain must be rated to the full working load of the securement assembly and must be compatible in size and grade with the hooks, rings, and other hardware used in the assembly.

The 1-1/4 inch size designation identifies the chain link wire diameter, confirming this tail chain is designed for use in the highest-capacity heavy haul and over-dimensional load securement assemblies using 1-1/4 inch Grade 8 alloy chain hardware. At 73,200 lb working load limit, this is the highest-rated tail chain in the Lebus L-180 Spectrum 8 Series range, providing approximately 53% greater working load capacity than the 1 inch Spectrum 8 tail chain rated at 47,700 lb, and is reserved for the most extreme super-heavy haul and over-dimensional transport securement applications where loads exceed the capacity of smaller chain sizes. The 24 inch length specifies the overall working length of the tail chain assembly, providing the correct reach between the winch line termination and the anchor point in standard heavy haul securement configurations.

The Spectrum 8 Series designation identifies this as part of Lebus's premium Grade 8 alloy steel chain product line, providing the highest working load limits available in standard transport chain grades. Grade 8 alloy chain delivers the superior strength-to-weight ratio and fatigue resistance required for the most demanding super-heavy haul and over-dimensional load securement applications, and at 1-1/4 inch chain size and 73,200 lb working load limit this tail chain represents the top of the L-180 Spectrum 8 range for winchline securement assemblies. The 1-1/4 inch chain size requires compatible 1-1/4 inch Grade 8 rated hooks, shackles, and load securement hardware throughout the assembly — mixing hardware of different chain sizes or grades within a securement assembly is not permitted.

The winchline tail chain must be inspected before each use for cracks, deformation, elongation, wear at the chain links and hook attachment points, and any condition that reduces the cross-sectional area of the chain wire below the manufacturer's minimum allowable limit. Tail chains showing any signs of damage, deformation, or wear must be removed from service immediately and replaced.

Material: Alloy steel — Grade 8 (Spectrum 8 Series) Working Load Limit: 73,200 lb Chain Size: 1-1/4 in Length: 24 in

Compatible With: 1-1/4 in alloy chain load securement hardware and hooks Winch line load securement systems on heavy haul, lowboy, and over-dimensional trailers Series: L-180 Spectrum 8

Uses: Connecting winch line wire rope or strap to chain anchor points in super-heavy haul and over-dimensional load securement assemblies Highest-capacity winchline tail chain application in the L-180 Spectrum 8 Series at 73,200 lb WLL Flatbed and lowboy trailer load securement in applications requiring 1-1/4 in Grade 8 alloy chain hardware Replacement of worn, damaged, or undersized tail chain in the highest-capacity winchline load securement assemblies

Key Features: Lebus L-180 Spectrum 8 Series winchline tail chain Grade 8 alloy steel construction 73,200 lb working load limit — highest-rated tail chain in the L-180 Spectrum 8 Series 1-1/4 in chain size 24 in length Designed for super-heavy haul and over-dimensional transport securement at maximum capacity Compatible with 1-1/4 in Grade 8 rated hooks and load securement hardware

Note: Always inspect winchline tail chains before each use and remove from service immediately if any damage, deformation, elongation, or wear is identified. Never exceed the rated working load limit of 73,200 lb. Always use with hardware of equivalent or greater working load limit and compatible 1-1/4 in chain size and Grade 8 specification throughout the securement assembly. Load securement must comply with applicable federal and provincial transport regulations including FMCSA and Transport Canada cargo securement standards. Never repair or modify a damaged tail chain — replace with a new assembly of the correct size, grade, and working load limit.
