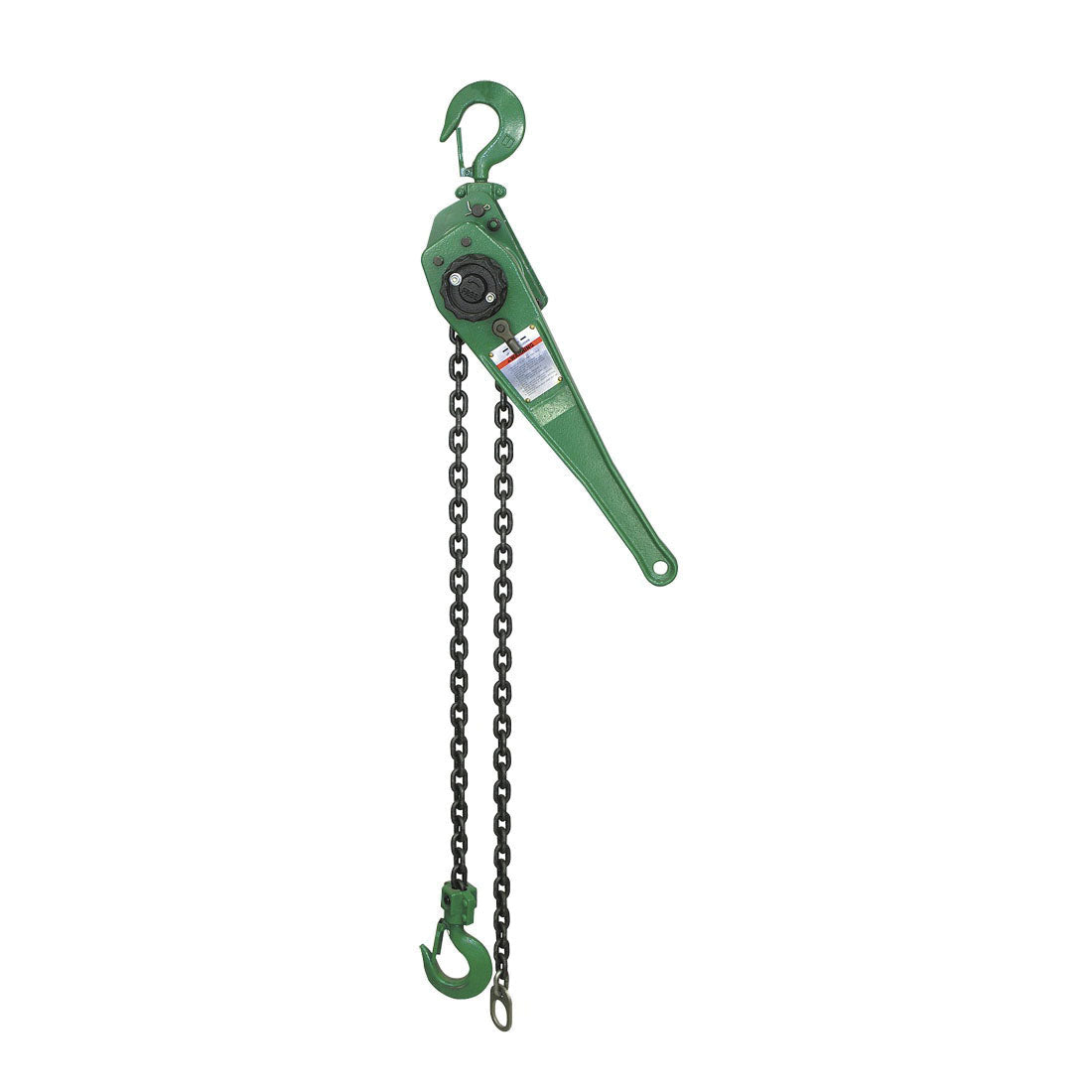

JET Super Heavy Duty Lever Chain Puller - 5 ft - 66 lb - 1.5 Ton

Description du produit

The JET Super Heavy Duty Lever Chain Puller is a 1.5-ton rated mechanical lifting and pulling device constructed from cast steel, designed for demanding load lifting, tensioning, and positioning applications in industrial, construction, rigging, and maintenance environments where superior durability and robustness are required beyond standard heavy duty specifications. Cast steel construction provides exceptional strength, impact resistance, and dimensional stability under sustained and shock loading conditions, making this lever puller well suited for the most demanding field and shop applications where equipment is subjected to heavy use and harsh environmental conditions.

With a 5-foot lifting height and a minimum between-hooks distance of 14-15/16 inches, the puller provides adequate travel for the majority of industrial lifting and pulling tasks. The 1-19/64 inch hook opening accommodates a wider range of rigging hardware than smaller hook opening models, providing compatibility with larger shackles, rings, and structural attachment points commonly used in heavy industrial rigging. A pull force of 66 lb on the lever is required to lift the rated load — higher than the standard KLP model at the same capacity, reflecting the additional mechanical robustness of the super heavy duty construction. The 16-1/16 inch lever length provides the mechanical advantage needed to achieve the rated capacity at the specified hand effort.

The disc brake system provides positive load holding when the lever is released, preventing unintended load movement during lifting and tensioning operations. The combination of cast steel construction, 1.5-ton capacity, disc brake, 1-19/64 inch hook opening, and super heavy duty build quality makes this lever puller a dependable choice for riggers, millwrights, ironworkers, and industrial maintenance personnel who require maximum durability in a portable lever pulling device.

Specifications: Working Load Limit: 1.5 Ton Lifting Height: 5 ft Minimum Between Hooks: 14-15/16 in Hook Opening: 1-19/64 in Pull to Lift Rated Load: 66 lb Lever Length: 16-1/16 in Brake Type: Disc Brake Construction: Cast Steel Grade: Super Heavy Duty

Compatible With: Standard shackles, rings, and rigging hardware within 1-19/64 in hook opening Industrial lifting, pulling, and tensioning applications requiring super heavy duty equipment

Uses: Load lifting and lowering in confined or remote locations Wire rope and chain tensioning Load positioning and alignment during heavy machinery installation Rigging and recovery operations Construction and structural steel erection Industrial maintenance and millwright applications requiring maximum equipment durability

Key Features: Super heavy duty lever chain puller Cast steel construction — exceptional strength, impact resistance, and durability 1.5-ton working load limit 5 ft lifting height 1-19/64 in hook opening — compatible with larger rigging hardware 66 lb pull force required to lift rated load 16-1/16 in lever length for mechanical advantage Disc brake — positive load holding when lever is released 14-15/16 in minimum between hooks
