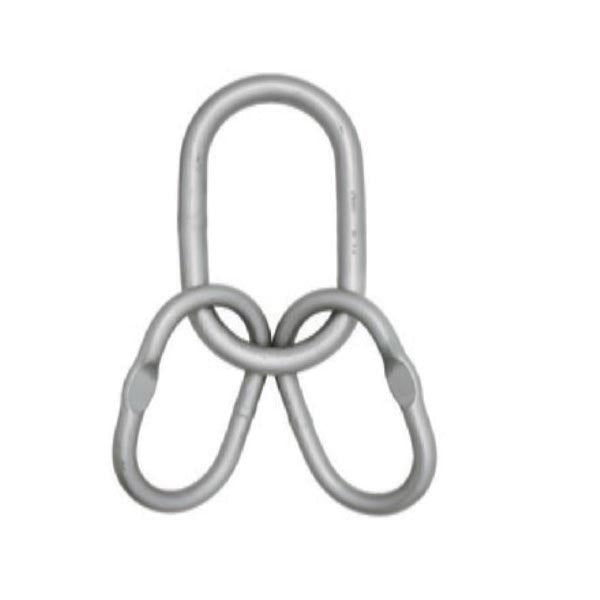

A-1346 Grade 100 Welded Master Link Assembly

Name: A-1346 Grade 100 Welded Master Link Assembly
Brand: Crosby
SKU: 1256917
Price: 225.28 CAD
Availability: OutOfStock

SKU: Part #1256917

$454.15 CAD

Promotion Épuisé

Weight 3.5 lb 3.9 lb 11.4 lb 15.6 lb 21.2 lb 58.6

Quantité

Afficher tous les détails

Description du produit

Crosby A-1346 Welded Master Link Assemblies are designed for use as the top assembly in multi-leg chain slings (3-leg and 4-leg configurations). These assemblies provide a strong and reliable connection point between sling legs and lifting hardware, making them essential for heavy-duty overhead lifting applications.
Manufactured from high-strength alloy steel and fully welded, the A-1346 assembly ensures superior durability and structural integrity. It is specifically engineered to handle complex lifting configurations while maintaining consistent load distribution across multiple sling legs.

Material:
Body: Alloy steel
Heat treatment: Quenched and tempered for strength and toughness
Finish: Painted or coated for corrosion resistance

Specifications:
Designed for 3-leg and 4-leg chain sling assemblies
Compatible with Grade 100 and Grade 80 chain slings
Working Load Limit range: approx. 3,000 kg to 26,500 kg (varies by size)
5:1 design factor for lifting applications
Individually proof tested with certification
Proof testing uses special fixtures to prevent point loading
Each assembly marked with:
Product Identification Code (PIC) for traceability
Size, grade, and manufacturer markings
Meets or exceeds ASME B30.26 and EN 1677-4 standards
Type approved to DNV certification for offshore container use
Fatigue rated to 20,000 cycles at 1.5× WLL

Uses:
Multi-leg chain sling assemblies (3-leg / 4-leg)
Overhead lifting and rigging
Offshore and heavy industrial lifting
Construction and material handling operations

Key Features:
Multi-leg lifting capability – Designed for 3 and 4 leg sling systems
High strength construction – Welded alloy steel design
Certified performance – Proof tested and DNV approved
Durable design – Built for heavy-duty and offshore environments
Traceability – PIC code ensures full material tracking
Fatigue resistant – Rated for repeated lifting cycles

Stock No.	Weight Each (lb)	Grade 100 Chain Sling Three / Four Legs Chain Size (in)	Grade 80 Chain Sling Three / Four Legs Chain Size (in)	Working Load Limit (lb)	Proof Load (lb)	Dimension A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Engineered Flat Size for S-1325A Chain Size (in)
1256865	2.4	6mm	6mm	7,000	17,632	0.51	2.36	4.72	0.51	4.72	2.36	0.26	6mm
1256868	3.5	6mm	6mm	9,000	22,701	0.67	3.54	6.30	0.51	4.72	2.36	0.26	6mm, 9/32
1256874	3.9	6mm	9/32	9,200	23,362	0.75	3.54	6.30	0.51	4.72	2.36	0.26	9/32, 5/16
1256878	7.3	5/16, 9/32	5/16	15,400	38,570	0.87	3.94	7.09	0.67	6.30	3.54	0.33	3/8
1256880	8.9	5/16, 9/32	5/16	15,400	38,570	0.87	5.71	10.83	0.67	6.30	3.54	0.33	3/8
1256876	8.4	5/16	3/8	18,700	46,725	0.87	3.94	7.09	0.75	6.30	3.54	0.33	3/8
1256882	10.1	5/16	3/8	19,600	49,149	0.98	4.53	8.27	0.75	6.30	3.54	0.33	3/8
1256892	11.4	5/16	3/8	19,600	49,149	0.98	5.71	10.83	0.75	6.30	3.54	0.33	3/8
1256917	15.6	3/8	1/2	31,900	80,005	1.10	5.71	10.83	0.87	7.09	3.94	0.41	1/2
1256926	21.2	1/2	1/2	37,400	93,670	1.26	5.71	10.83	0.98	8.27	4.53	0.53	5/8
1256929	28	1/2	5/8	52,000	130,036	1.42	6.10	11.22	1.10	7.48	4.33	0.53	5/8
1256930	40.6	5/8	5/8	61,900	154,941	1.57	5.51	10.63	1.26	10.83	5.71	0.66	—
1256953	58.6	5/8	3/4	84,400	211,143	1.77	7.09	13.39	1.42	11.22	6.10	—	—
1256958	78.2	3/4	7/8	99,200	247,950	2.01	8.46	15.35	1.57	10.63	5.51	—	—
1256973	134.6	7/8	1	147,600	369,170	2.17	7.99	15.98	2.01	15.35	8.46	—	—

Series: Grade 100 A-1346 Welded Master Link Assembly

Design Factor: 5:1. Applications with wire rope and synthetic sling generally require a Design Factor of 5.

Load Rating: Based on a single-leg sling in an in-line load, or resultant load on multiple legs with an included angle less than or equal to 120 degrees.

Proof Test: Proof Test Load equals or exceeds the requirements of ASTM A952 (8.1) and ASME B30.9.

Chain Sling Design Factor: Chain slings require a 4:1 Design Factor. Refer to Applications & Warnings to determine the product's actual Ultimate Load.

Manufactured Flats: There are no manufactured flats on links over 1-1/4 in (32 mm).
