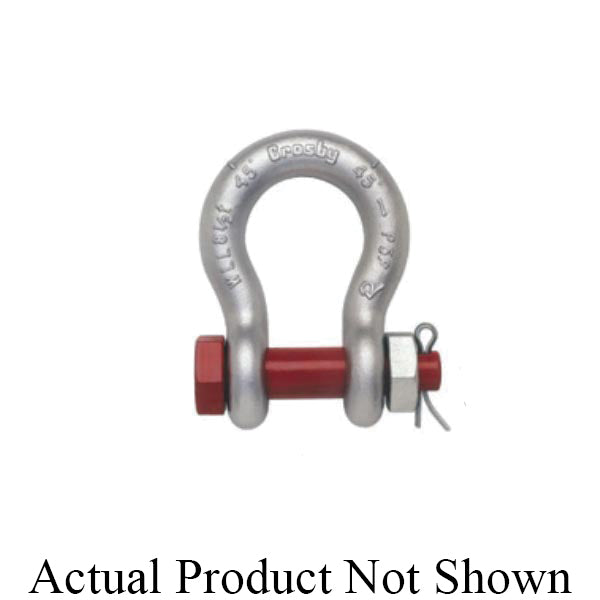

Crosby G-2130OC Bolt Type Anchor Shackles - 1-1/2 in with 1.66 in Pin

Description du produit

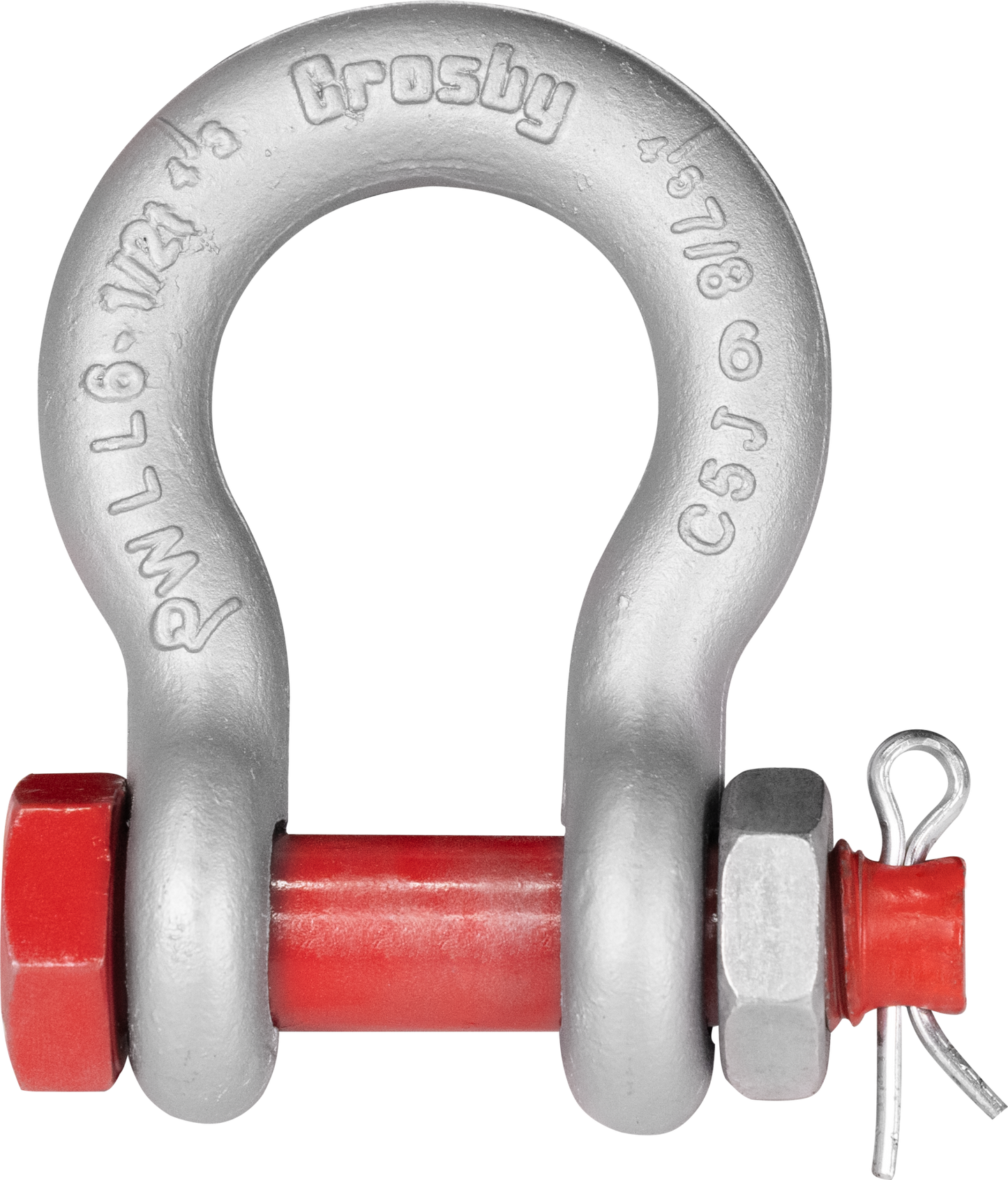

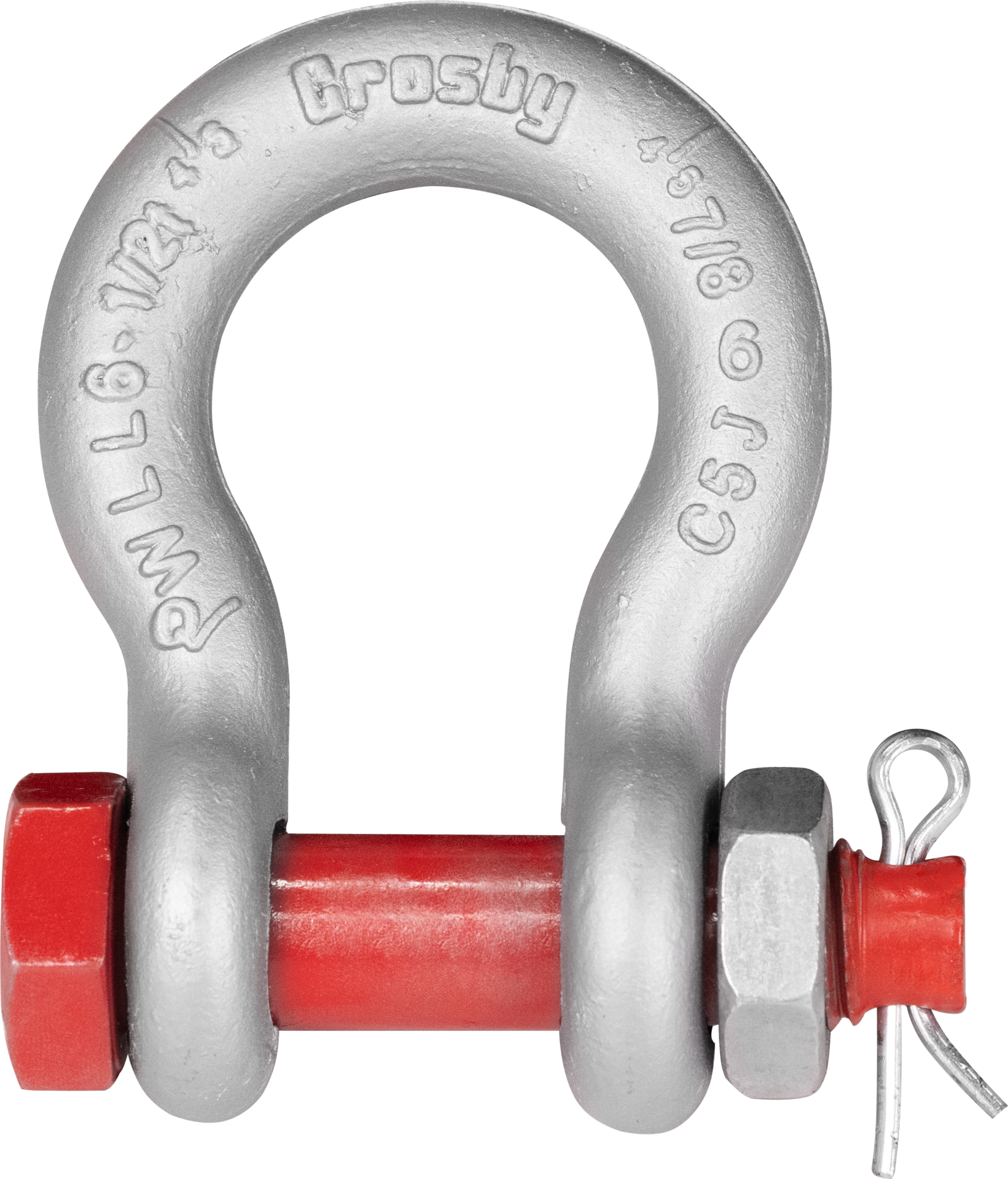

Crosby G-2130 / S-2130 / G-2130OC bolt type anchor shackles are heavy-duty, forged steel lifting components designed for secure, long-term rigging applications. Featuring a bolt, nut, and cotter pin assembly, these shackles prevent accidental loosening in applications with vibration or movement. They are quenched and tempered for superior strength, permanently marked with working load limits, and available in a wide range of capacities with galvanized or self-colored finishes.

Material:
Body: Forged carbon steel
Bolt, Nut & Cotter Pin: Alloy steel
- Sizes 7/16 inch and above are hot dip galvanized
- Sizes 3/8 inch and below are mechanically galvanized

Specifications:
- Meets or exceeds ASME B30.26 requirements
- Conforms to Federal Specification RR-C-271G, Type IVA, Grade A, Class 3
- Maximum Proof Load is 2 times the Working Load Limit
- Minimum Ultimate Strength is 6 times the Working Load Limit
- Suitable for operating temperatures from -40°C to 204°C

Uses:
- Permanent or long-term rigging connections
- Overhead lifting and hoisting applications
- Marine and offshore operations
- Construction and heavy equipment lifting
- Material handling in industrial environments

Key Features:
Secure bolt-type design – Bolt, nut, and cotter pin prevent accidental loosening
High strength construction – Forged, quenched, and tempered for durability
Fatigue rated – Designed for repeated load cycles
Enhanced safety – Ideal for critical and long-term lifting applications
