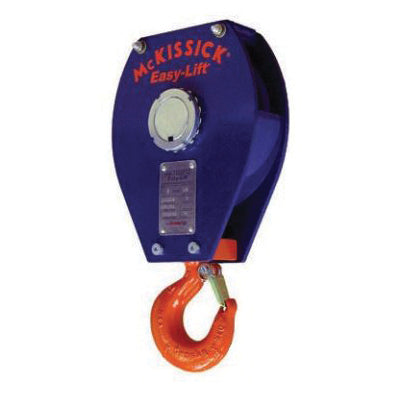

McKissick 751 Bridge Crane Overhead Block - 1/4 in - 3 Ton - 8 in

Product Description

The McKissick 751 Series Bridge Crane Block is a heavy-duty overhead rigging block designed for reliable performance in industrial crane and hoist applications. Built to handle a working load of 3 tons, this block is well-suited for bridge crane systems operating in manufacturing plants, fabrication shops, warehouses, and other heavy industrial environments where dependable overhead lifting is required. The 751 Series represents McKissick's commitment to producing rigging components that combine strength and precision in a compact, practical form factor.

This block features an 8-inch sheave outside diameter with a single groove, accommodating a maximum cable diameter of 1/4 inch. The single-groove sheave design provides straightforward single-line reeving for clean, direct lifting applications. The sheave is precision-machined to reduce wire rope wear and ensure smooth cable travel throughout the lifting cycle. Overall dimensions of 16.88 in H x 8.94 in W x 2.75 in THK make this a relatively slim-profile block, well-suited for installations where lateral clearance is a consideration.

The 751 Series block is engineered for overhead crane service and integrates with standard bridge crane rigging configurations. As with all crane blocks in this capacity range, proper installation, routine inspection, and strict adherence to the rated working load are critical to safe and effective operation in any overhead lifting environment.

Material:

Steel construction

Compatible With:

1/4 in maximum diameter wire rope Bridge crane and overhead crane systems Standard industrial rigging configurations

Uses:

Overhead bridge crane lifting operations Industrial material handling in manufacturing and fabrication environments Single-line reeving crane applications Warehousing and heavy assembly operations

Key Features:

3 ton working load capacity 8 in sheave outside diameter 1-groove sheave for single-line reeving Maximum cable size: 1/4 in Overall dimensions: 16.88 in H x 8.94 in W x 2.75 in THK 751 Series overhead crane block McKissick brand — established rigging hardware manufacturer
