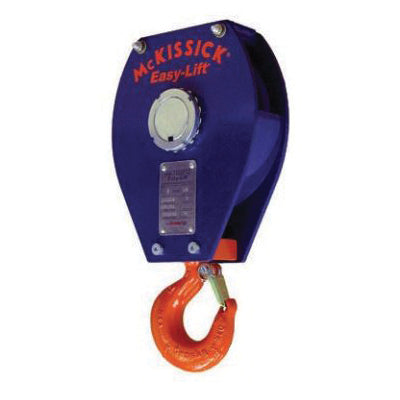

McKissick 751 Bridge Crane Overhead Block - 5/8 in - 7.5 Ton - 12 in

Product Description

The McKissick 751 Series Bridge Crane Block is a heavy-duty overhead rigging block designed for reliable performance in industrial crane and hoist applications. Rated at 7.5 tons, this block is well-suited for bridge crane systems operating in manufacturing plants, steel mills, fabrication shops, and other heavy industrial environments where dependable single-line overhead lifting is required at higher capacities. The 751 Series represents McKissick's commitment to producing rigging components that combine strength and precision in a practical, field-proven form factor across a wide range of capacities.

This block features a 12-inch sheave outside diameter with a single groove, accommodating a maximum cable diameter of 5/8 inch. The single-groove sheave design provides straightforward single-line reeving for clean, direct lifting applications. The 12-inch sheave diameter provides an excellent D:d ratio relative to the 5/8 inch cable, significantly reducing wire rope fatigue and extending rope service life under repeated load cycling. Overall dimensions of 25.44 in H x 13.44 in W x 4.25 in THK give this block a notably slim profile for its sheave size and capacity, making it particularly well-suited for bridge crane installations where lateral clearance between crane girders or structural members is a critical constraint.

The 751 Series block is engineered for overhead crane service and integrates with standard bridge crane rigging configurations. Its slim-profile construction makes it especially practical in tight overhead installations where a high-capacity single-line block with a large sheave diameter is required without the added width of a multi-groove configuration. As with all crane blocks in this capacity range, proper installation, routine inspection, and strict adherence to the rated working load are critical to safe and effective operation.

Material:

Steel construction

Compatible With:

5/8 in maximum diameter wire rope Bridge crane and overhead crane systems Standard industrial rigging configurations

Uses:

Overhead bridge crane lifting operations Heavy industrial material handling Single-line reeving crane applications where lateral clearance is limited Manufacturing, steel mill, and heavy fabrication environments

Key Features:

7.5 ton working load capacity 12 in sheave outside diameter 1-groove sheave for single-line reeving Maximum cable size: 5/8 in Overall dimensions: 25.44 in H x 13.44 in W x 4.25 in THK Slim-profile design for installations with limited lateral clearance 751 Series overhead crane block McKissick brand — established rigging hardware manufacturer
