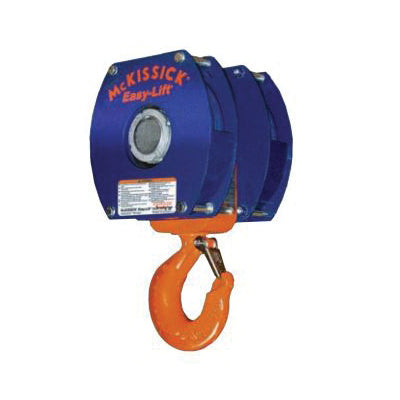

McKissick 752 Bridge Crane Overhead Block - 7/16 in - 7.5 Ton - 10 in

Description du produit

The McKissick 752 Bridge Crane Overhead Block is a heavy-duty double-groove overhead block engineered for bridge crane and overhead lifting applications in industrial facilities, manufacturing plants, steel mills, and heavy fabrication environments. Rated for a 7.5-ton working load limit, this block is built around a 10-inch outside diameter sheave with 2 grooves, accommodating wire rope cable up to 7/16 inch in diameter. With overall dimensions of 20.25 inches high by 11.12 inches wide by 8.69 inches thick, the 752 is a robust block designed for the demanding duty cycles and precise load handling requirements of overhead crane systems.

The double-groove sheave configuration allows this block to accommodate two wire rope runs simultaneously, supporting multi-part line reeving arrangements commonly used in bridge crane systems to achieve the mechanical advantage required for lifting heavy loads with controlled, stable load handling. The 10-inch sheave diameter provides a suitable rope bend radius for the wire rope diameter accommodated by this block, supporting rope longevity during the high-cycle lifting operations typical of industrial bridge crane service. The overall block dimensions reflect the robust construction required to safely handle 7.5-ton working loads in continuous-duty overhead crane environments.

The McKissick 752 is designed to meet the demanding requirements of overhead bridge crane service, where consistent, dependable block performance across repeated lifting cycles is essential for safe and efficient facility operations. This block is well suited for installation in bridge crane, gantry crane, and overhead hoist systems in steel mills, manufacturing plants, heavy fabrication shops, and industrial facilities where reliable multi-groove overhead block performance is required.

Material:

Steel (body and side plates)

Compatible With:

Wire rope cable up to 7/16 in diameter Bridge crane and overhead hoist reeving systems

Uses:

Multi-part line reeving in bridge crane and gantry crane systems Overhead lifting in industrial manufacturing and fabrication facilities Steel mill and heavy industrial crane block applications Overhead hoist load handling

Key Features:

7.5 Ton working load limit 10 in sheave outside diameter 2 rope grooves for multi-part line reeving Accommodates wire rope cable up to 7/16 in diameter Overall dimensions: 20.25 in H x 11.12 in W x 8.69 in THK Purpose-built for bridge crane and overhead lifting applications Robust construction for continuous-duty industrial crane service McKissick 752 series
