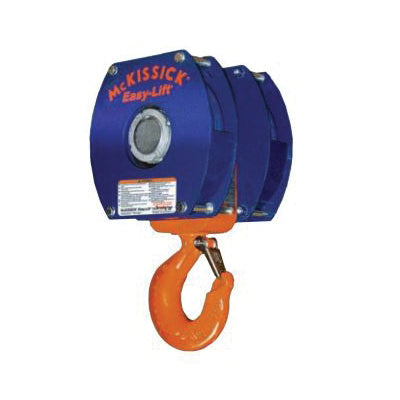

McKissick 752 Series Bridge Crane Block - 15 Ton - 1/2 in Wire Rope - 12 in Sheave

Description du produit

The McKissick 752 Series Bridge Crane Block is a heavy-duty overhead lifting block engineered for demanding industrial crane applications. Designed for use with bridge cranes and overhead crane systems, this block delivers reliable performance in environments where consistent load control and durability are essential. The 752 Series is a well-established product line from McKissick, a brand recognized throughout the rigging and lifting industry for manufacturing high-quality blocks and sheaves.

This block is rated for a 15 ton capacity and is designed to accommodate a maximum cable diameter of 1/2 in. The 12 in sheave outside diameter and 2-groove configuration allow for efficient reeving arrangements suited to standard bridge crane setups. The overall dimensions of 25.38 in H x 13.46 in W x 13.94 in THK represent one of the larger profiles within the 15 ton range of the 752 Series, and the thickness dimension should be carefully evaluated against available crane clearances prior to installation.

The 752 Series overhead block is built to withstand the repetitive duty cycles common in manufacturing facilities, warehouses, steel service centers, and other industrial operations. Its construction supports smooth cable travel across the sheave grooves, reducing wear on both the cable and the block during extended use. The 1/2 in maximum cable diameter at the 15 ton rating is a finer wire rope specification than is typical at this load level and should be confirmed against both the crane system's installed wire rope and McKissick's documentation to ensure the combination is appropriate for the intended application.

Material:

Consult McKissick documentation for confirmed material specifications

Compatible With:

Bridge crane and overhead crane systems 1/2 in maximum wire rope cable Standard crane hook or suspension hardware compatible with this block series

Uses:

Bridge crane lifting and load positioning Overhead material handling in industrial facilities Manufacturing and warehouse crane systems Steel service center and heavy industrial applications

Key Features:

752 Series overhead crane block 15 Ton rated capacity 1/2 in maximum cable diameter 12 in sheave outside diameter 2-groove sheave configuration Overall dimensions: 25.38 in H x 13.46 in W x 13.94 in THK Designed for bridge crane and overhead crane use

Note:

Material composition and finish details should be confirmed against the official McKissick 752 Series product documentation or catalog prior to specification. The 1/2 in cable diameter at the 15 ton rating should be verified carefully against McKissick documentation and the crane system's installed wire rope before ordering, as this is a finer specification than is common at this load rating. The 13.94 in THK dimension should also be confirmed against available crane clearance. Do not assume certifications or standards compliance without verification from McKissick or an authorized distributor.
