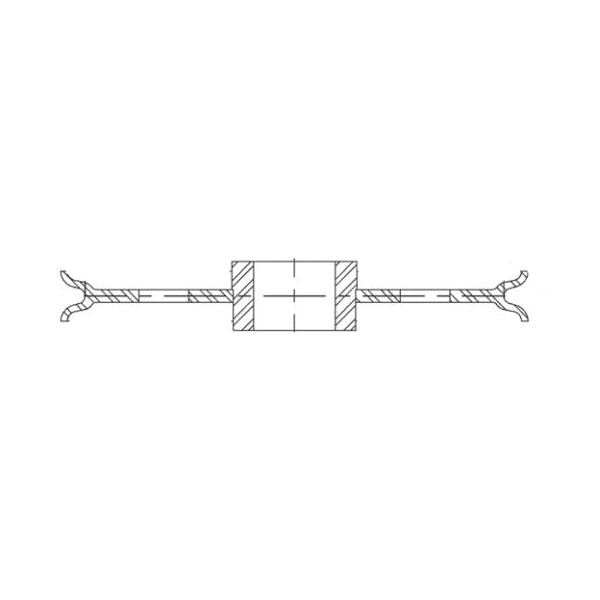

McKissick Forged Steel Sheave - 1/2 in x 9-7/8 in - Plain Bore

Description du produit

McKissick She

The McKissick forged steel sheave with plain bore bearing offers a straightforward, robust solution for wire rope rigging applications where simplicity and structural integrity are the primary requirements. The forged steel sheave body delivers the high strength and impact resistance characteristic of McKissick rigging hardware, making it suitable for demanding industrial environments including construction, marine, oil and gas, and mining operations. The 9-7/8 in outside diameter sheave accommodates up to 1/2 in wire rope, maintaining the rope-to-sheave diameter ratios necessary to protect wire rope from excessive bending stress and premature wear.

The plain bore bearing configuration provides a simple, cost-effective bearing arrangement well suited for applications with intermittent use, slower rope speeds, or installations where the sheave is fitted to a customer-supplied pin or shaft. Plain bore sheaves are commonly used in block assemblies, rigging systems, and lifting configurations where the simplicity of the design is an advantage and operating conditions do not demand the reduced friction of roller or bronze bushing bearing types. The finish bore ensures dimensional accuracy for proper fit on standard pins and shafts used in rigging hardware assemblies.

McKissick, a Crosby Group brand, is recognized throughout the lifting and rigging industry for producing sheaves, blocks, and related hardware to exacting standards for heavy industrial service. This sheave is appropriate for use in fixed or traveling block assemblies, crane and derrick systems, and other wire rope running rigging configurations. Installation, inspection, and maintenance should be carried out in accordance with applicable rigging standards and the manufacturer's guidelines to ensure safe and reliable operation.

Material: Forged Steel Sheave

Compatible With: 1/2 in Wire Rope

Uses: Wire rope running rigging Crane and hoist block assemblies Derrick and mast systems Construction lifting applications Marine rigging Oil and gas lifting and pulling operations Mining and heavy industrial rigging

Key Features: Forged steel sheave construction for superior strength and impact resistance 9-7/8 in sheave outside diameter Accepts up to 1/2 in maximum wire rope Plain bore bearing for simple, cost-effective installation on customer-supplied pins or shafts Finish bore ensures dimensional accuracy for proper fit Suitable for intermittent use and lower rope speed applications

ave, 1/2 in Maximum Cable, 9-7/8 in Sheave Outside Dia, Finish/Plain Bore Bearing, Forged Steel Sheave
