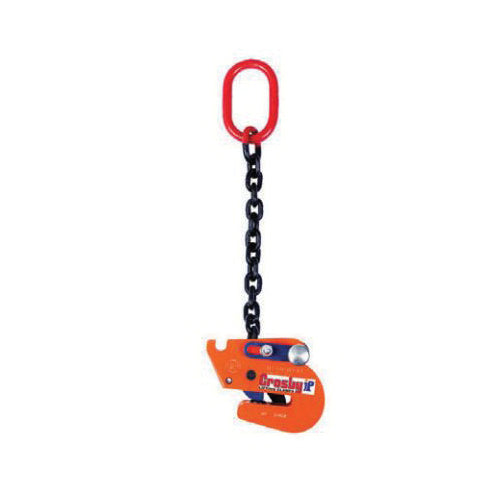

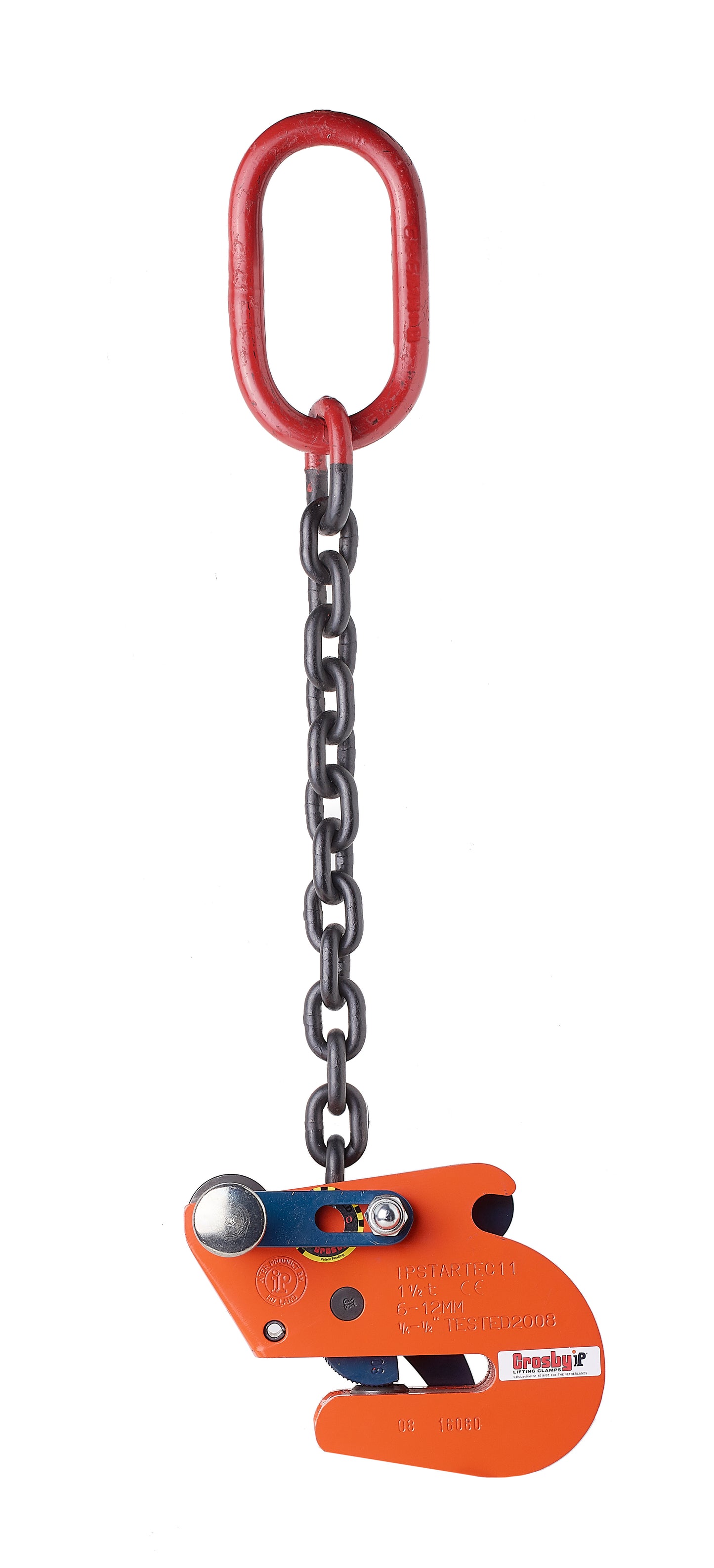

Crosby IP Model IPSTARTEC11 Beam Lifting Clamps - 2.5 Ton

Description du produit

Product Description:
Crosby IP Model IPSTARTEC11 lifting clamps are designed for the lifting, transporting, stacking, and controlled tilting of steel beams, specifically H-beams and I-beams. These clamps are engineered for applications where the load must be handled in a vertical body position, allowing precise control during lifting and positioning.
The clamp features an adjustable chain guide, which allows operators to easily switch between lifting and tilting modes. This enables controlled movement by shifting the center of gravity, making it highly effective for beam handling in fabrication and construction environments.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for lifting, tilting, stacking, and transporting steel beams
Suitable for H-beams and I-beams (IPE / HEA profiles)
Available capacities:
1.5 metric tons
2.5 metric tons
Jaw opening range: approx. 6 mm to 20 mm (0.25"–0.75")
Adjustable chain guide for lifting ↔ tilting transition
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with brand, WLL, jaw opening, and serial number
Each unit is individually serialized with proof test data stamped on body
Includes user manual and test certificate
Operating temperature range: -40°C to +100°C
Manufactured to EN 13155 standards
All sizes are RFID equipped

Uses:
Lifting and positioning steel beams
Controlled tilting of structural sections
Beam stacking and transport
Fabrication, construction, and industrial handling

Key Features:
Controlled tilting – Adjustable chain guide shifts center of gravity
Beam-specific design – Optimized for H and I profiles
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Precision handling – Designed for vertical-body lifting
Traceability – Serialized with stamped identification
RFID enabled – Improved tracking and inspection management
