Crosby

IP Model IPHGZ

Name: IP Model IPHGZ
Brand: Crosby
SKU: 2705451
Price: 1170.53 CAD
Availability: OutOfStock

SKU: Part #2705451

$1,170.53 CAD

Promotion Épuisé

Working Load Limit 0.75 Ton 1.5 Ton 3 Ton 4.5 Ton

Quantité

Afficher tous les détails

Description du produit

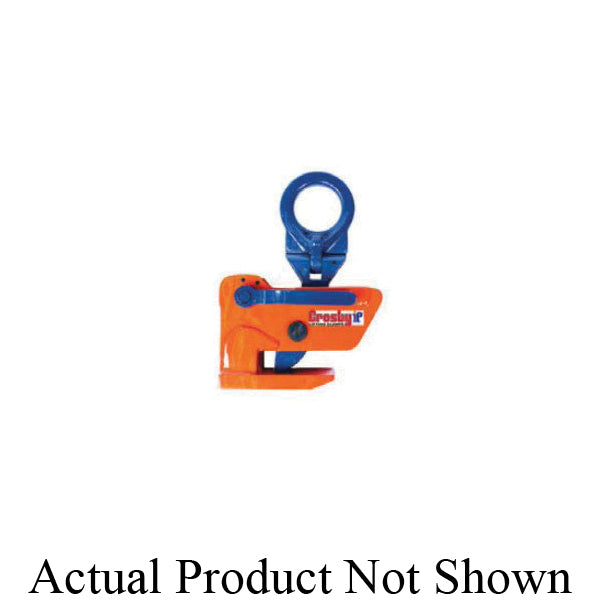

Crosby IP Model IPHGZ lifting clamps are designed for the horizontal lifting and transfer of steel plates and structural materials in industrial applications. These clamps are suitable for handling both sagging and non-sagging materials, providing reliable performance during lifting and positioning operations.
The IPHGUZ model features a universal (hinged) lifting eye, allowing for flexible lifting from multiple angles without side loading, while the IPHGZ model is equipped with a fixed hoisting eye for more controlled and stable lifting.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for horizontal lifting and transfer of steel plates and structural materials
Suitable for both sagging and non-sagging materials
Available in capacities from approx. 1 to 4.5 metric tons (higher WLL available upon request)
Equipped with a pretension locking feature to secure clamp before lifting
Individually proof tested to 2× Working Load Limit with certification
Clamp body permanently marked with brand, WLL, and jaw opening
Each unit is individually serialized with proof load test data stamped on body
Includes handle for easy placement and positioning

Uses:
Horizontal lifting of steel plates
Handling structural sections and beams
Material transfer in fabrication shops
Industrial and construction lifting operations

Key Features:
Dual configuration – Universal (IPHGUZ) or fixed (IPHGZ) hoisting eye
Pretension locking system – Ensures secure attachment before lifting
Flexible lifting – Hinged eye allows multi-angle lifting without side load
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized with stamped identification
Reliable performance – Suitable for demanding industrial environments

Model	Working Load Limit (t)*	Stock No.	Weight Each (lb)	Jaw A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Dimension J (in)	Dimension K (in)	Maintenance Kit Stock No.
IPHGUZ
IPHGUZ	1.5	2705455	19.8	0 - 1.00	4.33	9.13	11.30	2.76	5.47	3.54	0.79	0.63	2715450
IPHGUZ	3	2705456	43.9	0 - 1.56	4.69	9.96	13.70	2.95	6.89	4.72	0.98	0.79	2715452
IPHGUZ	4.5	2705457	66.1	0 - 1.56	4.69	11.85	14.57	3.15	6.89	6.10	1.18	1.73	2715454
IPHGZ - Fixed Hoisting Eye
IPHGZ	0.75	2705451	8.82	0 - 1.00	3.23	5.83	8.11	1.97	3.90	3.86	0.47	0.87	—
IPHGZ	1.5	2705452	4.41	0 - 1.00	4.33	7.87	9.84	1.97	4.65	3.54	0.79	1.10	—
IPHGZ	3	2705453	27.1	0 - 1.56	4.72	8.94	12.01	2.76	5.83	4.72	0.98	1.26	—
IPHGZ	4.5	2705454	55.1	0 - 1.56	4.72	11.18	15.00	2.76	7.13	6.10	1.18	1.57	—
