Crosby

IP Model IPBHZ

Name: IP Model IPBHZ
Brand: Crosby
SKU: 2705467
Price: 1123.19 CAD
Availability: OutOfStock

SKU: Part #2705467

$9,270.80 CAD

Promotion Épuisé

Working Load Limit 0.75 Ton 1.5 Ton 3 Ton 4.5 Ton 12 Ton

Quantité

Afficher tous les détails

Description du produit

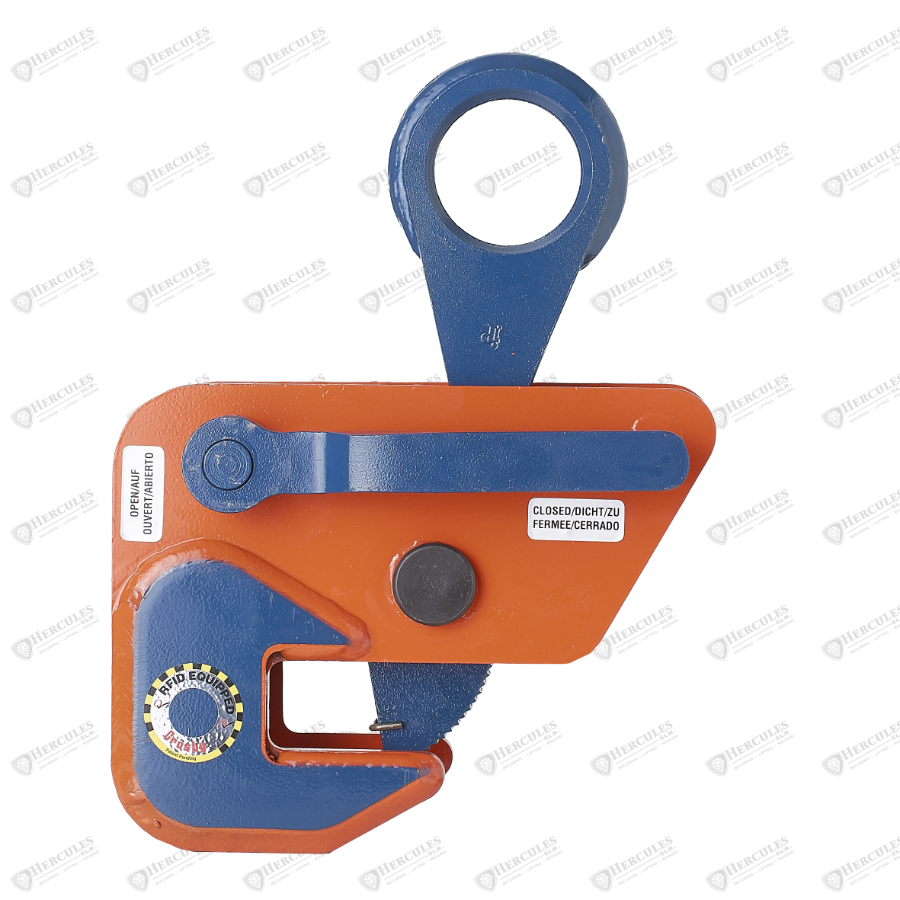

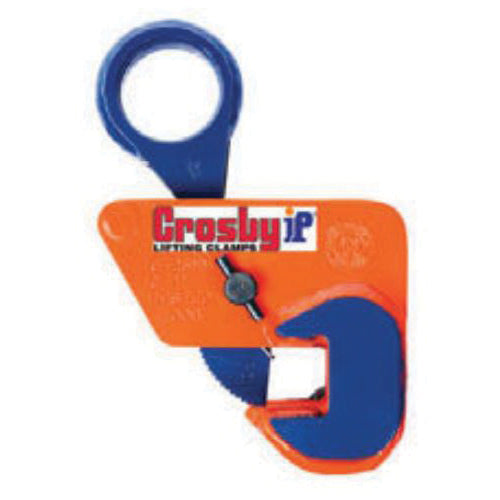

Crosby IP Model IPBHZ lifting clamps are designed for the safe lifting, transporting, and positioning of steel plates in horizontal applications. These clamps are specifically engineered for handling plates in pairs or multiples, ensuring balanced and secure lifting during material handling operations.
The IPBHZ clamp features a robust design that provides reliable gripping force, making it suitable for both rigid and flexible plates. Its compact construction and integrated hoisting components allow for controlled lifting and improved stability in demanding industrial environments.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for horizontal lifting and transfer of steel plates
Must be used in pairs or multiples for safe operation
Individually proof tested to 2× Working Load Limit with certification
Minimum Working Load Limit is 10% of maximum WLL
Clamp body marked with brand, WLL, and jaw opening
Equipped with a locking mechanism for secure grip
Each unit is individually serialized with test data stamped on the body
Operating temperature range: -40°C to +100°C

Uses:
Horizontal lifting of steel plates
Plate transport in fabrication and manufacturing
Industrial material handling
Construction and steel processing applications

Key Features:
Horizontal lifting design – Optimized for plate handling
Secure gripping system – Ensures stable lifting in pairs
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized with stamped identification
Reliable performance – Suitable for demanding industrial environments

Model	Working Load Limit (t)*	Stock No.	Weight Each (lb)	Jaw A (in)	Dimension B (in)	Dimension C (in)	Dimension D (in)	Dimension E (in)	Dimension F (in)	Dimension G (in)	Dimension J (in)	Dimension L (in)
IPBHZ	0.75	2705461	6.61	0 - 1.00	1.57	5.83	8.66	1.97	5.12	2.72	1.30	0.87
IPBHZ	1.5	2705462	13.2	0 - 1.00	2.36	7.99	10.04	1.97	6.22	2.87	1.38	1.10
IPBHZ	3	2705463	23.2	0 - 1.56	3.15	8.94	12.80	2.76	7.40	4.41	1.50	1.26
IPBHZ	4.5	2705464	55.1	0 - 1.56	4.41	11.18	16.26	2.76	9.88	4.57	3.15	1.57
IPBHZ	12	2705467	93.3	0 - 1.56	4.92	18.35	19.29	3.54	12.48	3.54	3.54	1.85
