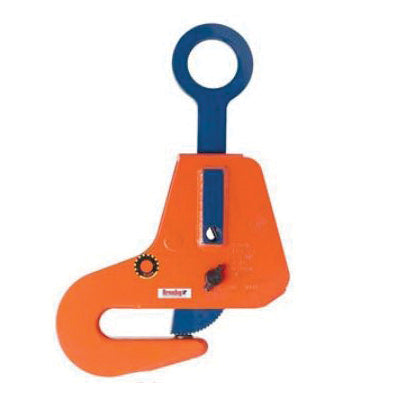

Crosby IPBSNZ Beam Lifting Clamps - 4.5 Ton

Description du produit

Product Description:
Crosby IP Model IPBSNZ beam lifting clamps are designed for the lifting, transferring, and stacking of structural steel beams, including I-beams, H-beams, and angles. These clamps provide a secure and efficient solution for handling structural materials in industrial, fabrication, and construction environments.
The IPBSNZ features a ring-center (or offset) hoisting eye, allowing the beam flange to remain vertical during lifting. This design enables stable and controlled movement of beams and fabricated sections, making it suitable for both vertical and horizontal handling applications.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for lifting, transferring, and stacking steel beams and structural profiles
Suitable for I-beams, H-beams, angles, and fabricated sections
Equipped with ring-center / offset hoisting eye for balanced lifting
Can be used for vertical and horizontal handling applications
Available in capacities typically ranging from 1.5 to 4.5 metric tons
Jaw openings available from 0 in up to approx. 2 in
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with brand, WLL, and jaw opening
Each unit is individually serialized with proof test date stamped on body
Minimum WLL is 10% of maximum rated capacity
Includes user manual and test certificate
Maintenance and repair kits available
Manufactured in an ISO 9001 facility

Uses:
Lifting and transporting steel beams
Structural steel handling in fabrication shops
Stacking and positioning beams
Construction and industrial material handling

Key Features:
Beam-specific design – Optimized for I-beams and structural profiles
Balanced lifting – Ring-center hoisting eye maintains vertical alignment
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized with stamped identification
Versatile operation – Suitable for vertical and horizontal movement
