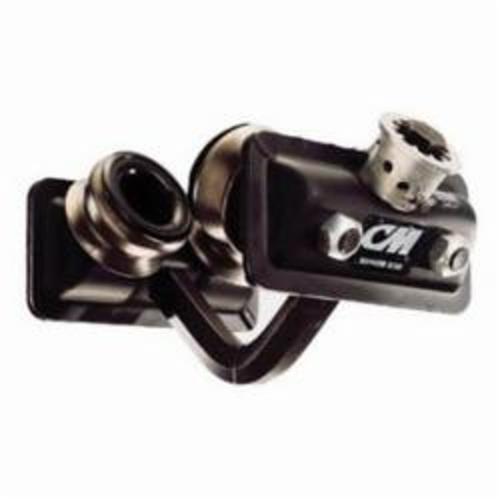

Series 632 Manual Plain Trolley - 6,000 lb, 4 to 6-1/4 in Beam Flange

Product Description

CM Series 632 manual plain trolleys provide horizontal travel for compatible suspended hoists operating along overhead runway beams. The listed configurations cover capacities from 500 to 6,000 lb, with model-specific beam flange ranges, beam height ranges, wheel sizes, and minimum curve requirements. Their manually propelled design is suitable for industrial applications where powered or hand-geared trolley travel is unnecessary.

Horizontal movement is produced by pushing or pulling the suspended hoist and load along the supporting beam. This straightforward operating arrangement requires no electric traverse motor, pneumatic drive, pendant controls, or trolley hand chain. Steel wheels provide a durable running surface for repeated movement during maintenance, fabrication, assembly, equipment installation, and general material-handling operations.

The 500 to 1,000 lb and 2,000 lb models fit beam flanges from 2-5/8 to 5-1/16 in, accommodate beam heights from 4 to 12 in, negotiate a 7 in minimum-radius curve, and use a 2-3/4 in wheel-tread diameter. The 3,000 to 4,000 lb model fits 3-3/8 to 5-5/8 in flanges and beam heights from 6 to 15 in. The 6,000 lb model fits 4 to 6-1/4 in flanges and beam heights from 8 to 18 in. Both higher-capacity configurations require a 10 in minimum-radius curve and use a 3-1/2 in wheel-tread diameter.

Material:
Steel trolley wheels
Industrial metal trolley frame
Metal wheel and axle assemblies
Suspension and beam-adjustment hardware
Exact frame and hardware material grades not confirmed

Compatible With:
Properly rated hoists with a compatible trolley suspension connection
Overhead beams within the selected model’s flange-width range
Beams within the specified height range
Straight or curved runway beams meeting the required minimum-radius specification
Capacity-matched hoist suspension and mounting components

Uses:
Providing manual horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Manufacturing and production applications
Warehouse and general material handling
Applications where powered trolley travel is unnecessary

Key Features:
Manual plain trolley operation
Available for loads from 500 to 6,000 lb
Steel trolley wheels
No electrical or pneumatic travel power required
No separate trolley operating hand chain
Capacity-specific beam adjustment
Suitable for compatible straight and curved runway beams
Simple industrial load positioning
