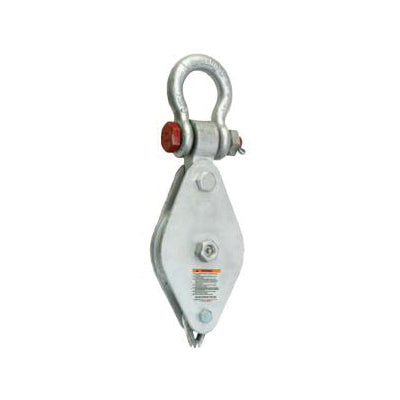

Western Q-681-Z Series Wire Rope Construction Block - 3 Ton - 3/8 in Wire Rope - 6 in Sheave

Description du produit

Product Description: The Western Q-681-Z Series 3 Ton Wire Rope Construction Block is a heavy-duty single-groove rigging block built for demanding construction, industrial, and general rigging applications where reliable performance and durable construction are essential. Featuring the S-Type New Oval Pattern shell design, this block offers a modern oval profile that provides structural strength and a streamlined form suited to a wide range of block and tackle, crane, and rigging configurations. This variant is designed to accommodate wire rope cable up to 3/8 inch in diameter and is rated to a 3 Ton working load limit, making it well suited to medium rigging tasks encountered on construction sites, in industrial facilities, and in marine environments where a smaller rope diameter is preferred or specified.

The single 6 inch sheave provides a generous rope bend radius relative to the 3/8 inch wire rope diameter, helping to significantly reduce rope fatigue and extend rope service life during repeated lifting cycles. The sheave runs on a self-lubricating bronze bushing bearing, a proven and low-maintenance bearing solution well suited to construction and field rigging environments where regular lubrication may not always be practical. Self-lubricating bronze bushings provide consistent performance across a range of operating conditions, resist corrosion, and offer reliable service life in both indoor and outdoor applications without requiring frequent maintenance intervention.

The Q-681-Z Series construction block is designed for integration into block and tackle systems, crane rigging assemblies, and general construction lifting arrangements where a dependable medium-capacity single-groove wire rope block for 3/8 inch rope is required. The S-Type New Oval Pattern shell is compatible with standard rigging hardware including hooks and shackles rated to the appropriate working load limit. All connected rigging components must be rated to 3 Ton or greater, and the block must be inspected before each use in accordance with applicable lifting and rigging safety standards.

Material: Heavy-duty steel block body - S-Type New Oval Pattern shell Steel sheave Self-lubricating bronze bushing bearing

Compatible With: Wire rope cable up to 3/8 in diameter Hooks, shackles, and rigging hardware rated to 3 Ton or greater Block and tackle and crane rigging systems configured for 3/8 in wire rope

Uses: Construction site lifting and rigging operations Block and tackle lifting assemblies Industrial crane and hoist rigging General rigging and material handling Marine and port rigging applications Field rigging where low-maintenance bearing performance is required

Key Features: 3 Ton working load limit Q-681-Z Series designation S-Type New Oval Pattern shell design Single groove - 6 in sheave outside diameter Accommodates wire rope cable up to 3/8 in diameter Self-lubricating bronze bushing bearing for low-maintenance reliable performance Heavy-duty steel construction for demanding construction and industrial environments

Note: All connected rigging hardware must be rated to the working load limit of this block. Inspect the block, sheave, bearing, and all attachment points before each use. Follow applicable lifting and rigging safety standards and do not exceed the rated working load limit.
