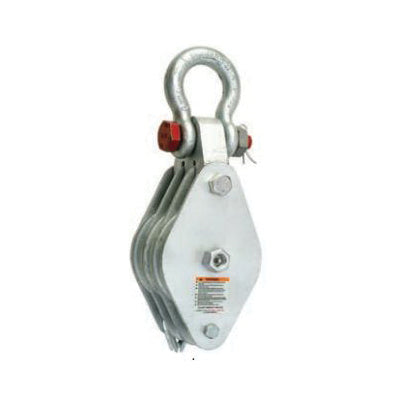

Western Q-683-Z Series Wire Rope Construction Block - 8 Ton - 5/8 in Wire Rope - 10 in Sheave

Description du produit

Product Description: The Western Q-683-Z Series 8 Ton Wire Rope Construction Block is a heavy-duty triple-groove rigging block engineered for demanding construction, industrial, and general rigging applications where high capacity, maximum mechanical advantage, and extended rope service life are critical requirements. Featuring the S-Type New Oval Pattern shell design, this block combines a modern oval profile with robust structural construction suited to a wide range of compound block and tackle, crane, and rigging systems. This variant accommodates wire rope cable up to 5/8 inch in diameter and is rated to an 8 Ton working load limit, making it well suited to heavy rigging tasks on construction sites, in industrial facilities, and in marine environments where a 5/8 inch rope diameter and high working load capacity are specified.

The three 10 inch sheave grooves allow this block to be used in multi-part line reeving arrangements with up to three rope parts running through the block simultaneously, enabling significant mechanical advantage and increased effective lifting capacity when configured in a compound block and tackle system. The 10 inch sheave outside diameter provides a generous rope bend radius for 5/8 inch wire rope, substantially reducing rope fatigue and extending rope service life over repeated heavy-duty lifting cycles. The larger sheave diameter is particularly advantageous in high-cycle or high-load applications where rope wear and fatigue are significant operational considerations, contributing to smoother rope travel and more efficient power transmission through the block assembly. The sheaves run on self-lubricating bronze bushing bearings, a proven and low-maintenance bearing solution well suited to construction and field rigging environments where regular lubrication may not always be practical. Self-lubricating bronze bushings deliver consistent performance across a range of operating conditions, resist corrosion, and provide reliable service life in both indoor and outdoor applications without requiring frequent maintenance.

The Q-683-Z Series construction block in this 5/8 inch rope and 10 inch sheave configuration is designed for integration into compound block and tackle systems, crane rigging assemblies, and general construction lifting arrangements where a dependable high-capacity triple-groove wire rope block with extended rope life performance is required. The S-Type New Oval Pattern shell is compatible with standard rigging hardware including hooks and shackles rated to the appropriate working load limit. All connected rigging components must be rated to 8 Ton or greater, and the block must be inspected before each use in accordance with applicable lifting and rigging safety standards.

Material: Heavy-duty steel block body - S-Type New Oval Pattern shell Steel sheaves Self-lubricating bronze bushing bearings

Compatible With: Wire rope cable up to 5/8 in diameter Hooks, shackles, and rigging hardware rated to 8 Ton or greater Block and tackle and crane rigging systems configured for 5/8 in wire rope and triple-groove reeving

Uses: Heavy construction site lifting and rigging operations Multi-part line and compound block and tackle lifting assemblies Industrial crane and hoist rigging General rigging and heavy material handling Marine and port rigging applications High-cycle field rigging requiring maximum mechanical advantage and extended rope life at high capacity

Key Features: 8 Ton working load limit Q-683-Z Series designation S-Type New Oval Pattern shell design Triple groove - 10 in sheave outside diameter Accommodates wire rope cable up to 5/8 in diameter Large sheave diameter reduces rope fatigue and extends rope and sheave service life Enables multi-part line reeving for maximum mechanical advantage in compound lifting systems Self-lubricating bronze bushing bearings for low-maintenance reliable performance Heavy-duty steel construction for demanding construction and industrial environments

Note: All connected rigging hardware must be rated to the working load limit of this block. Inspect the block, sheaves, bearings, and all attachment points before each use. Follow applicable lifting and rigging safety standards and do not exceed the rated working load limit.
