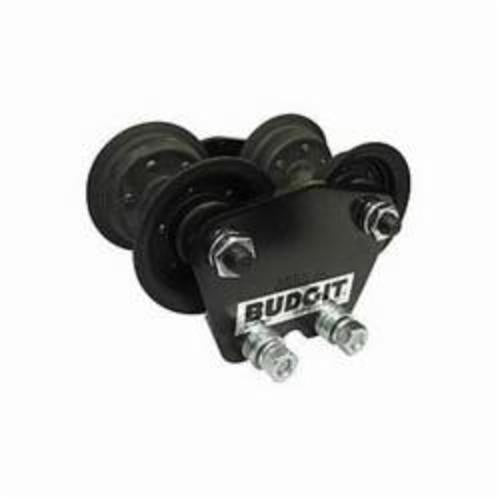

Budgit Manual Plain Push Trolley - 2,000 lb, 5-1/4 to 7-3/8 in Beam Flange

Product Description

Budgit manual plain push trolleys provide horizontal travel for compatible suspended hoists operating along overhead runway beams. The listed configurations cover load capacities from 500 to 4,000 lb, including a combination trolley for 500 to 1,000 lb applications and two separate 2,000 lb configurations. Manual push operation makes these trolleys suitable for industrial maintenance, fabrication, assembly, production, equipment installation, and general material-handling systems where powered or hand-geared trolley travel is unnecessary.

Horizontal movement is produced by manually pushing or pulling the suspended hoist and load. This straightforward arrangement eliminates the need for an electric traverse motor, pneumatic drive, pendant controls, or a trolley hand chain. The trolley must be selected according to the hoist capacity, suspension arrangement, beam flange width, beam height, required wheel clearance, and minimum curve radius of the runway system.

The 500 to 1,000 lb model fits beam flanges from 2-5/8 to 4-5/8 in, accommodates a 4 in beam height, and can negotiate a 30 in minimum-radius curve. The specified 2,000 lb model fits beam flanges from 5-1/4 to 7-3/8 in, accommodates a 5 in beam height, and has a 42 in minimum-radius curve. The 4,000 lb model fits beam flanges from 3-3/8 to 6 in, accommodates a 6 in beam height, and requires a 60 in minimum-radius curve. Steel wheels are confirmed for these dimensioned configurations.

Material:
Steel trolley wheels on specified configurations
Industrial metal trolley side frames
Steel suspension and load-bearing components
Steel beam-adjustment and fastening hardware

Compatible With:
Compatible Budgit hoists within the selected trolley’s rated capacity
Hoists using the required trolley suspension arrangement
Overhead beams within the specified flange-width range
Beams matching the specified beam height
Straight or curved runway beams meeting the required minimum-radius specification

Uses:
Providing manual horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Production and manufacturing applications
Warehouse and general material handling
Applications where powered trolley movement is unnecessary

Key Features:
Manual push-type operation
Available for loads from 500 to 4,000 lb
No electrical or pneumatic trolley power required
No separate trolley hand-chain drive
Steel wheels on specified configurations
Capacity-specific beam-flange compatibility
Model-specific beam-height and curve requirements
Simple horizontal load positioning
Suitable for compatible straight and curved runway beams
