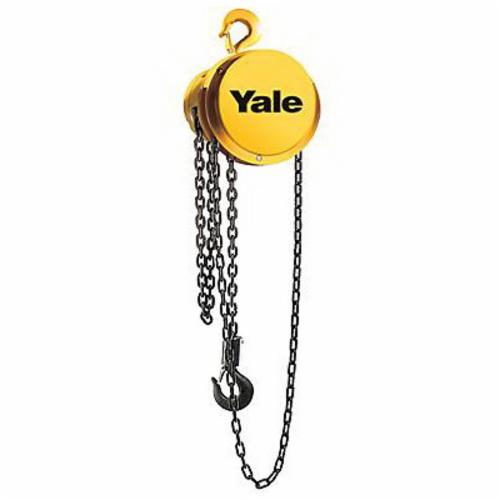

Yale Load King LH2 Hand Chain Hoist - 1 Ton, 12 ft Lift

Product Description

Product Description:
Yale Load King LH2 hand chain hoists are manually operated lifting units engineered for dependable load handling in industrial, construction, maintenance, fabrication, and material-handling applications. The listed configurations include 1 Ton models with 8 and 12 ft Lift and a 5 Ton model with a 30 ft Lift. The 1 Ton models have a 14 in minimum distance between hooks, require approximately 69 lb of hand-chain pull at rated load, and use single-strand reeving. The 5 Ton model has a 24-1/4 in minimum distance between hooks, requires approximately 75 lb of pull, and uses three-strand reeving.

High-strength aluminum-alloy frame and cover castings provide a durable structure while helping reduce overall hoist weight. Rugged Hoistaloy load chain is designed for strength and long service life, while fully machined forged liftwheel pockets promote smooth chain travel and efficient lifting. High-efficiency spur gearing reduces the hand-chain effort needed to raise the load and supports consistent operation throughout the hoist’s rated capacity range.

An enclosed, contoured Weston-type automatic brake provides positive load control during lifting and lowering. The LH2 product family was also offered with a standard load limiter for automatic overload protection, along with optional chain containers, plated load and hand chain, Latchlok hooks, bronze hooks, Bullard hooks, and eye-type suspension on compatible capacities. The standard hand-chain drop is normally two feet less than the specified lifting height.

Material:
High-strength aluminum-alloy frame and cover castings
Rugged Hoistaloy load chain
Forged and fully machined liftwheel
Steel spur gearing
Forged upper and lower hooks
Steel hand chain
Weston-type automatic brake components

Compatible With:
Properly rated fixed overhead suspension points
Properly rated hook-compatible beam clamps and trolleys
Yale LH2 capacity- and lift-specific replacement load chain
Optional Yale chain containers
Compatible Latchlok, Bullard, bronze, and standard hook arrangements
Compatible eye-type suspension assemblies

Uses:
Lifting and lowering industrial loads
Plant and facility maintenance
Equipment installation and positioning
Fabrication and assembly operations
Construction and field service
Warehouse and material-handling work
Applications requiring extended lifting heights

Key Features:
Manual hand-chain operation
High-efficiency spur gearing
Enclosed Weston-type automatic brake
Automatic overload protection on applicable configurations
Machined forged liftwheel pockets
Rugged Hoistaloy load chain
High-strength aluminum-alloy construction
Capacity-specific load-chain reeving
Designed for efficient inspection and servicing
