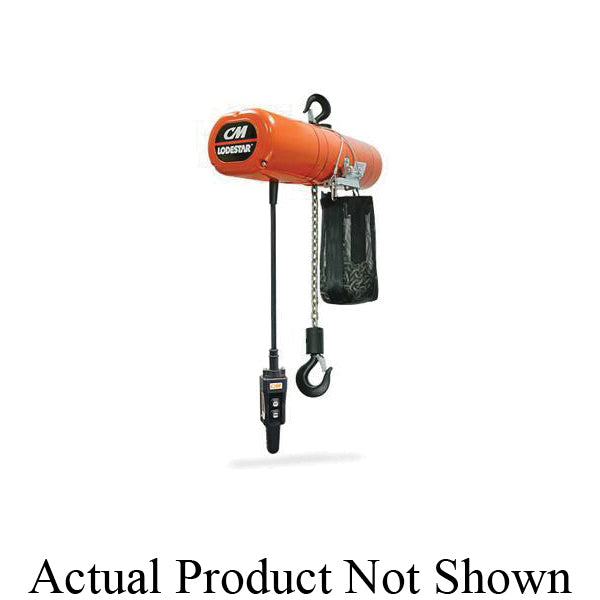

Lodestar Model RT2 Electric Chain Hoist - 3 Ton Triple Reeving 10 ft Lift 1.75/5.5 FPM 2-Speed 230 VAC

Product Description

The CM Lodestar Model RT2 Electric Chain Hoist is designed for heavy-duty industrial lifting and controlled positioning of loads weighing up to 3 Ton. Its triple-reeved load-chain configuration supports higher-capacity operation, while the 10 ft lifting height is suited to manufacturing, maintenance and general overhead material-handling applications.

Two-speed control provides lifting speeds of 1.75 and 5.5 FPM. The higher speed supports efficient movement through open travel, while the lower speed provides greater control when approaching the final position, aligning equipment or completing precision assembly work.

A 1 hp hoist motor supplies dependable lifting power, while the heavy-duty DC brake provides controlled stopping and secure load holding. The listed configurations are available for either 230 or 460 VAC electrical systems.

Material:
Steel load chain
Metal hoist frame and housing
Hardened steel drive components
Forged steel hook assemblies
Industrial electrical and control components

Compatible With:
Properly rated overhead suspension points
Approved hook and lug suspension systems
Compatible plain, geared and motorized trolleys
230 VAC electrical systems for applicable models
460 VAC electrical systems for applicable models
Manufacturer-approved load chain and replacement components

Uses:
Heavy-duty industrial lifting
Manufacturing and production operations
Assembly and fabrication applications
Equipment installation and maintenance
Warehouse material handling
Repetitive lifting and lowering
Controlled positioning of machinery and components

Key Features:
3 Ton lifting capacity
Triple-reeved load-chain configuration
10 ft lifting height
1.75/5.5 FPM two-speed control
Heavy-duty DC brake
1 hp hoist motor
230 and 460 VAC configurations
