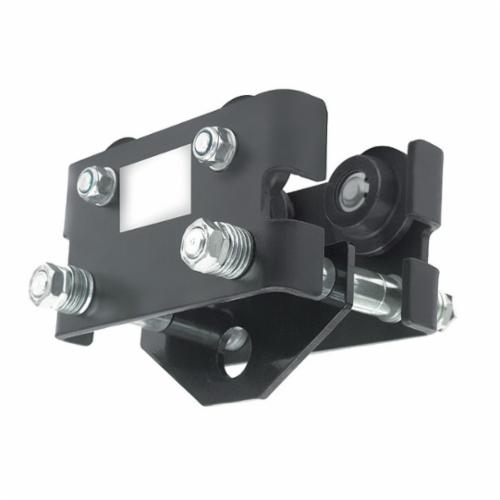

Coffing CBTP Manual Plain Trolley - 2 Ton, 2.3 to 8.7 in Beam Flange

Product Description

Coffing CBTP manual plain trolleys are push-operated units designed to provide smooth horizontal movement of a suspended hoist and load along a compatible overhead beam. The listed configurations cover 1/2, 1, 2, 3 and 5 Ton capacities, with adjustable beam-flange ranges extending to 8.7 in. Their manual operation makes them suitable for industrial lifting systems where powered or hand-geared trolley travel is unnecessary.

Steel wraparound side plates provide a durable trolley structure and incorporate protective lugs that add security while acting as bumpers around the wheels. Dual-tread wheels are designed to operate on compatible tapered or flat beam flanges, allowing the trolley to adapt to multiple runway-beam profiles within its specified adjustment range. A universal hanging clevis accepts most compatible hook-mounted manual or powered hoists.

Permanently lubricated, shielded precision ball bearings support smooth rolling with low routine maintenance requirements. Depending on capacity, the listed trolleys accommodate beam heights up to 24 in, minimum-radius curves from 27 to 70 in and wheel-tread diameters from 2.36 to 4.92 in. The adjustable side-plate and spacing-washer arrangement allows the trolley to be fitted to the selected beam while maintaining the required running clearance.

Material:
Steel wraparound side plates
Dual-tread wheels
Steel hanging clevis and adjustment hardware
Permanently lubricated shielded precision ball bearings

Compatible With:
Hook-mounted manual hoists within the trolley’s rated capacity
Hook-mounted powered hoists within the trolley’s rated capacity
Tapered beam flanges within the specified adjustment range
Flat beam flanges within the specified adjustment range
Straight or curved runway beams meeting the selected model’s dimensional requirements

Uses:
Providing manual horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Warehouse and production material handling
Applications where powered trolley travel is unnecessary

Key Features:
Manual push-type operation
Available in capacities from 1/2 to 5 Ton
Adjustable fit for beam flanges up to 8.7 in
Universal hanging clevis
Dual-tread wheels for tapered or flat flanges
Wraparound side plates with protective lugs
Permanently lubricated shielded ball bearings
Smooth rolling with low maintenance requirements
Suitable for model-specific straight and curved beam installations
