HOIST MANUAL STEEL 20FT 16FT KITO HOOK M

Description du produit

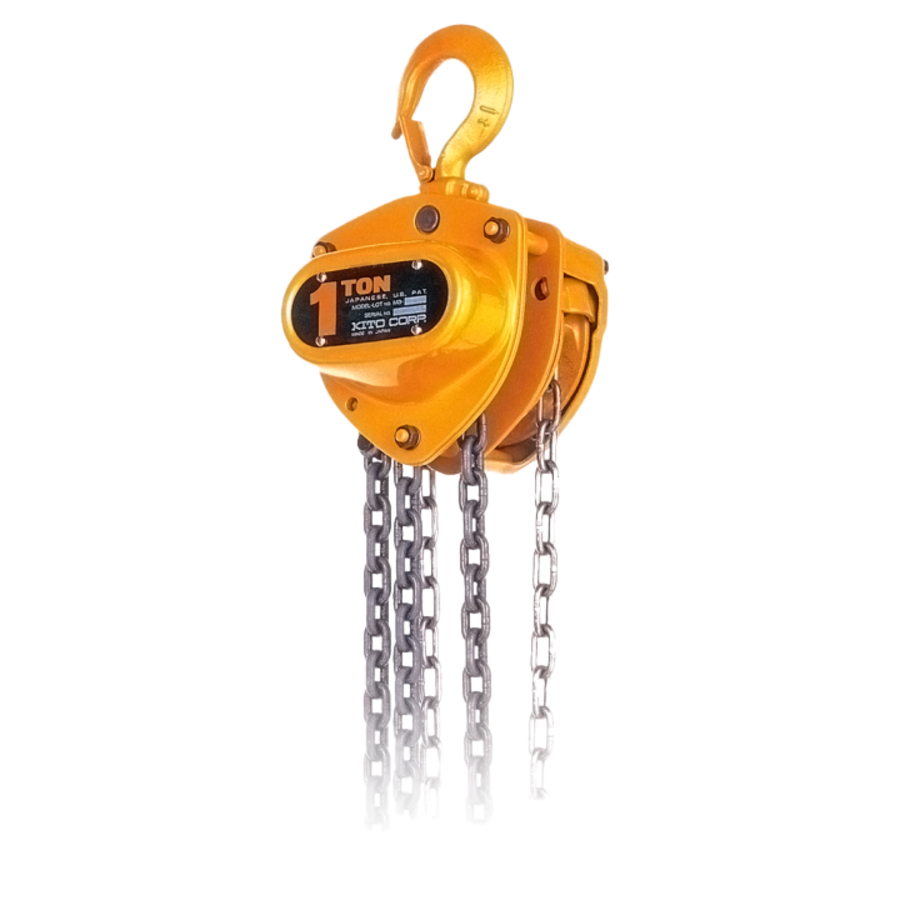

The Kito CB Series Manual Chain Hoist is a reliable hand-chain operated lifting tool designed for industrial and commercial applications requiring dependable overhead lifting performance over extended vertical distances. With a 1 Ton rated capacity and 20 ft of lift, this hoist is well suited for manufacturing, maintenance, steel fabrication, warehousing, and general rigging operations where a portable and straightforward manual chain hoist is needed. The hook mount suspension allows for quick and flexible installation on beams, trolleys, and other overhead structures.

Model M3CB010-20-16 identifies this unit within the CB Series product family, confirming the 1 Ton capacity, 20 ft lift height, and 16 ft minimum distance between hooks. The 16 ft hook-to-hook dimension is an important specification for installation planning, as it determines the minimum headroom required between the suspension point and the load hook at full lift. This makes proper beam height and clearance verification essential before deployment.

The CB Series is engineered for reliable everyday performance in a compact and portable package. The hand-chain mechanism delivers smooth and controlled load movement in both lifting and lowering directions, and the hook suspension configuration allows this hoist to be paired with a wide range of compatible beam trolleys and rigging hardware for added versatility across work areas.

Material: Alloy steel load chain Steel hoist body and housing Steel upper and lower hooks

Compatible With: Standard beam trolleys and push trolleys Compatible Kito CB Series replacement load chain Standard rigging hardware and shackles

Uses: Overhead lifting and lowering in manufacturing and maintenance Steel fabrication and assembly operations Warehousing and material handling General industrial lifting over extended vertical distances Applications requiring flexible hook mount installation

Key Features: 1 Ton (1,000 kg) rated capacity 20 ft standard lift height 16 ft minimum distance between hooks Hook mount suspension for flexible installation Hand-chain operated mechanism for smooth load control Model M3CB010-20-16 configuration Compact and portable design

Note: The 16 ft figure refers to the minimum distance between hooks, not an additional lift measurement. Verify available headroom against this dimension before installation.
